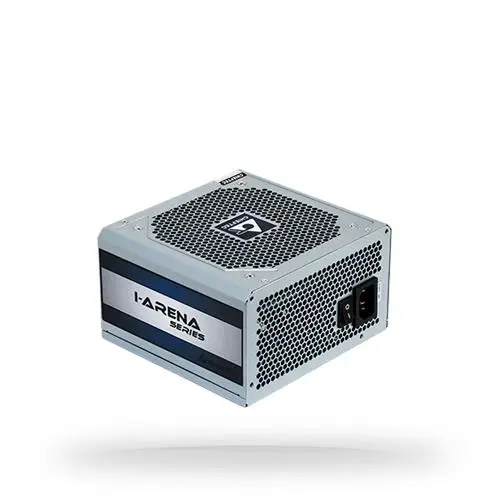

Power Supply Chieftec GPC-700S

Name: Power Supply Unit Chieftec GPC-700S GPC-700S
Brand: CHIEFTEC
SKU: 170662
Price: 48.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Power Supply Unit Chieftec GPC-700S 700W

Fast shipping

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Chieftec GPC-700S is a reliable 700W power supply unit designed for PCs. It features a 24-pin ATX connector, non-modular cabling, and a single 12 cm fan for efficient cooling. With an AC input voltage of 230V and frequency of 50Hz, it ensures stable power delivery. The compact dimensions (140mm width, 150mm depth, 87mm height) and sleek silver design make it a great choice for any build.

Available at price 48.99 €: 50 pcs.

Total available for order: 100 pcs.

Warranty: 2 Years

SKU: 170662

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.54 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Power Supply Unit Chieftec GPC-700S 700W is a reliable ATX power supply designed for desktop PCs. It delivers up to 700 W of continuous power and uses a single 120 mm fan for cooling. The unit comes with a fixed (non-modular) cable set including a 24-pin ATX motherboard connector, accepts 230 V AC at 50 Hz, and is finished in a compact silver enclosure measuring approximately 140 mm (W) × 150 mm (D) × 87 mm (H).

Advantages

The GPC-700S combines a high 700 W output with a compact form factor suitable for many standard PC cases. Non-modular cabling simplifies installation and reduces the number of separate accessories, while the integrated 120 mm fan provides consistent airflow for stable operation. Built with CHIEFTEC iARENA design considerations, the unit focuses on longevity and ruggedness for continuous use.

Suitable for

Home and office desktop computers
Mid-range gaming builds requiring up to 700 W
System integrators and repairs where a reliable silver ATX PSU is needed

Key specifications

Total power: 700 W
Motherboard power connector: 24-pin ATX
Fan diameter: 120 mm
Product colour: Silver
AC input: 230 V, 50 Hz
Dimensions (W × D × H): 140 × 150 × 87 mm

How to use

Install the Chieftec GPC-700S into a compatible ATX case, secure it with the rear mounting screws, and connect the 24-pin ATX connector to the motherboard. Attach the required peripheral and CPU power connectors from the fixed cables to the corresponding components. Ensure the PSU is set to the correct mains voltage if applicable and connect the AC power cord to a grounded outlet before powering on the system.

Usage recommendations

Use the GPC-700S in well-ventilated cases and avoid obstructing the 120 mm fan intake. Verify total system power draw to remain within the 700 W rating and connect only compatible connectors; do not attempt to modify the fixed cabling. Regularly clean dust from the fan and vents to maintain cooling efficiency.

Specifications

Power supply unit (PSU) form factor:: PS/2
Purpose: What the product is used for.: PC
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.: 2
Motherboard power connector: The way in which the motherboard is connected to the power supply.: 24-pin ATX
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 230
Total power: The total power that is needed by the device, or the total power produced by the device.: 700 W

All features

Logistics data

Harmonized System (HS) code:: 84733020

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.: 87 mm
Depth: The distance from the front to the back of something.: 150 mm
Width: The measurement or extent of something from side to side.: 140 mm

Design

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).: 1 fan(s)
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.: 120 mm
Product colour: The colour e.g. red, blue, green, black, white.: Silver

Performance

ATX version: ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3.: 2.3
Power supply unit (PSU) form factor:: PS/2
Purpose: What the product is used for.: PC

Ports & interfaces

Cabling type:: Non-Modular
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.: 2
Number of SATA power connectors:: 6
Motherboard power connector: The way in which the motherboard is connected to the power supply.: 24-pin ATX

Power

Power protection features: Features that protect the device against power problems e.g. overload.: Over voltage, Overload, Short circuit, Under voltage
Max output current (+5Vsb):: 2.5 A
Max output current (-12V):: 0.3 A
Max output current (+5V):: 22 A
Max output current (+12V1):: 52.5 A
Max output current (+3.3V):: 22 A
Combined power (+5Vsb):: 12.5 W
Combined power (+3.3V):: 130 W
Power Factor Correction (PFC) type:: Active
Input current:: 6.3
AC input frequency:: 50
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 230
Total power: The total power that is needed by the device, or the total power produced by the device.: 700 W
