Socket carrier Cimco 140754 connector & cable seals

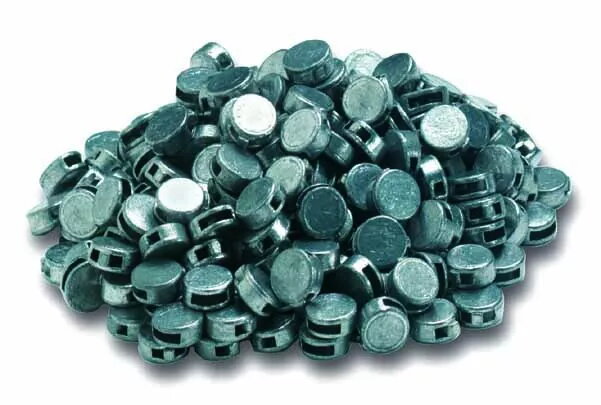

The Cimco 140754 socket carrier is a steel component engineered to support a socket contact with a diameter of 1 cm and to provide secure cable sealing in electrical assemblies. Constructed from durable steel, the carrier is intended to maintain mechanical stability and to protect connections against wear and mechanical stress. Its compact form factor makes it suitable for integration into diverse equipment where a reliable socket mount and sealed cable routing are required.

Advantages

The steel construction delivers high mechanical strength and wear resistance, extending the service life of the mounted socket. The carrier is designed to hold a socket contact of 1 cm diameter precisely, improving alignment and electrical contact reliability. Built-in provisions for cable sealing reduce the risk of ingress from dust and moisture and help maintain consistent electrical performance under normal operating conditions.

Suitable for

• Electrical panels and junction boxes requiring a secure socket mounting
• Industrial equipment where sealed cable entries are needed
• Repair or replacement of worn socket carrier assemblies
• Custom wiring harnesses and control cabinets

Key specifications

• Material: steel
• Socket contact diameter compatibility: 1 cm
• Function: socket carrier with cable sealing capability
• Form factor: compact, panel-mount compatible
• Operating role: mechanical support and environmental protection for socket connections

How to use

Install the carrier into the designated panel or housing opening and secure it using the appropriate fasteners for your application. Insert the socket contact into the carrier, ensuring the contact diameter matches the carrier’s 1 cm specification for a secure fit. Route the cable through the sealing area and apply the compatible sealing element or gasket supplied with the assembly to achieve the intended ingress protection. Verify alignment and mechanical retention before completing electrical terminations.

Usage recommendations

Use the carrier with sockets and cables that match the specified 1 cm contact diameter and consult system drawings to select the correct fasteners and sealing materials. Inspect the carrier and seals periodically for signs of wear or corrosion, especially in environments with moisture or abrasive contaminants, and replace components as necessary to maintain reliable connections.
