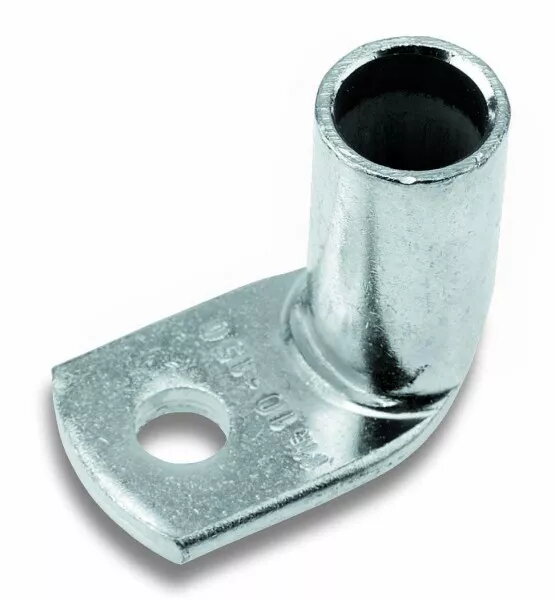

Tubular angled electrical terminal Cimco 183158 — copper-plated connector contact

Cimco 183158 is a tubular angled electrical terminal with copper-plated connector contact designed for reliable electrical connections in wiring assemblies. The angled tubular shape facilitates space-saving terminations and improved cable routing in confined installations such as control panels, household appliances and light industrial equipment. Copper plating ensures corrosion resistance and consistent conductivity at the contact interface.

Advantages

The angled tubular design reduces strain on cables and enables compact placement of connections where straight terminals would be impractical. Copper-plated contacts offer enhanced resistance to oxidation compared with bare base metals while maintaining good electrical conductivity. The tubular contact provides a secure crimp connection around conductors, improving mechanical stability and electrical continuity in vibration-prone environments.

Подходит для

• прокладки проводки в шкафах управления и распределительных щитах
• внутренней проводки бытовой техники
• соединений в промышленном оборудовании с ограниченным пространством
• терминалов, где требуется наклонное направление выхода кабеля

Key specifications

• Form factor: tubular angled terminal
• Contact finish: copper-plated
• Intended use: crimped connector for stranded conductors
• Application environments: control panels, appliances, light industrial equipment
• Performance characteristics: corrosion-resistant contact, stable electrical conductivity, mechanical retention via tubular crimp

How to use

Strip the conductor to the required length according to the terminal's insertion depth, insert the conductor fully into the tubular section, and perform a crimp using an appropriate crimping tool sized for the terminal and conductor cross-section. Orient the angled terminal to match the desired cable routing before completing the crimp. After crimping, verify mechanical retention and electrical continuity to ensure a proper connection.

Usage recommendations

For reliable long-term performance, use the terminal with conductors and crimp tools that match the terminal's intended wire gauge; avoid excessive insulation removal and ensure crimps are made in a clean, dry environment to minimize contamination of the copper-plated contact.
