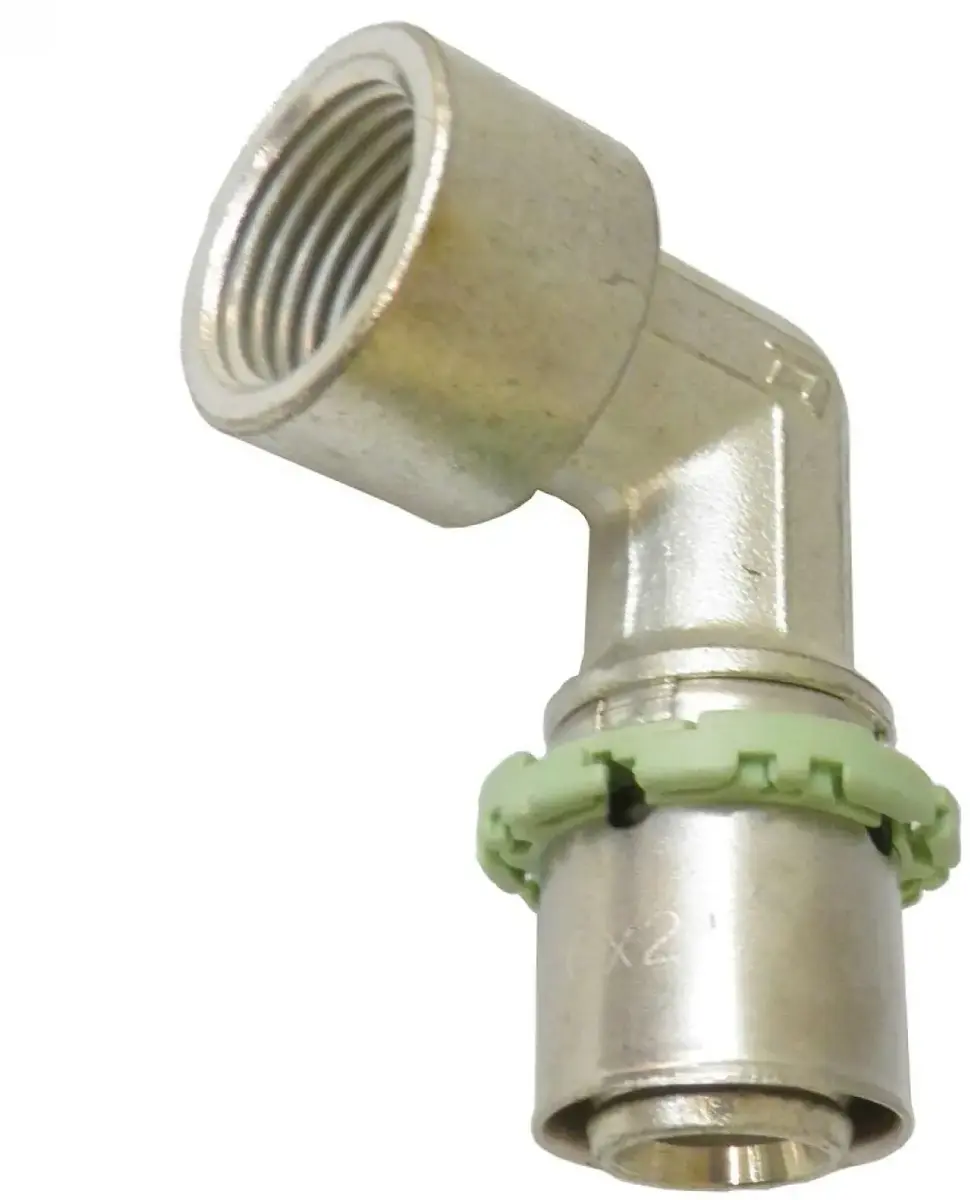

Compression elbow Comap MultiSkin brass/galvanized 26x3/4 722JDX-02

Compression elbow Comap MultiSkin brass/galvanized 26x3/4 722JDX-02 is a compact 90° fitting designed for connecting a 26 mm pipe to a 3/4" threaded radiator or heating appliance. The MultiSkin construction combines brass and galvanized components and uses a press-fit connection on the pipe side with a compression interface to the threaded side, providing a corrosion-resistant option for water, heating and radiator installations where a secure, space-saving change of direction is required.

Advantages

The combination of brass and galvanized materials ensures enhanced corrosion resistance and mechanical strength in typical plumbing and heating environments. The press-fit/ compression design allows for a reliable joint between pipe and threaded fittings without extensive joint preparation. Its compact 90° form factor minimizes space requirements near radiators and valves while maintaining a standard threaded connection for compatibility with common heating system components.

Suitable for

• Connecting 26 mm plastic or metal pipe to a 3/4" threaded radiator valve or appliance
• Domestic and commercial central heating installations
• Hot and cold water supply lines requiring a right-angle transition to threaded fittings
• Retrofit work where space near equipment or valves is limited

Key specifications

• Connection A: press-fit compression for 26 mm pipe
• Connection B: 3/4" external/internal threaded connection for radiators or valves
• Angle: 90° elbow
• Materials: brass components with galvanized parts for enhanced corrosion resistance
• Application medium: potable water and heating system fluids
• Typical installation environment: indoor plumbing and heating systems

How to use

Prepare the 26 mm pipe end by cutting square and deburring the inside and outside edges. Use the press-fit method on the pipe side according to manufacturer recommendations or compatible pressing tool instructions; ensure the pipe is fully inserted into the compression sleeve before making the joint. Secure the threaded 3/4" side to the radiator valve or appliance using appropriate sealing practice for threaded joints (e.g. thread sealant or tape as compatible with the system). Verify alignment and check for leaks after press-fitting and tightening, then pressurize the system gradually to confirm a leak-free installation.

Usage recommendations

Use compatible press tools and follow local plumbing codes. Match materials and sealing methods to the system medium and temperature range. When working with heating systems, conduct a controlled pressure test and visually inspect joints for correct engagement before final commissioning.
