SATA PCIe Adapter Conceptronic EMRICK

Name: SATA PCIe Adapter Conceptronic EMRICK EMRICK03G
Brand: CONCEPTRONIC
SKU: 3583330
Price: 35.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

SATA PCIe Adapter Conceptronic EMRICK 4-Port

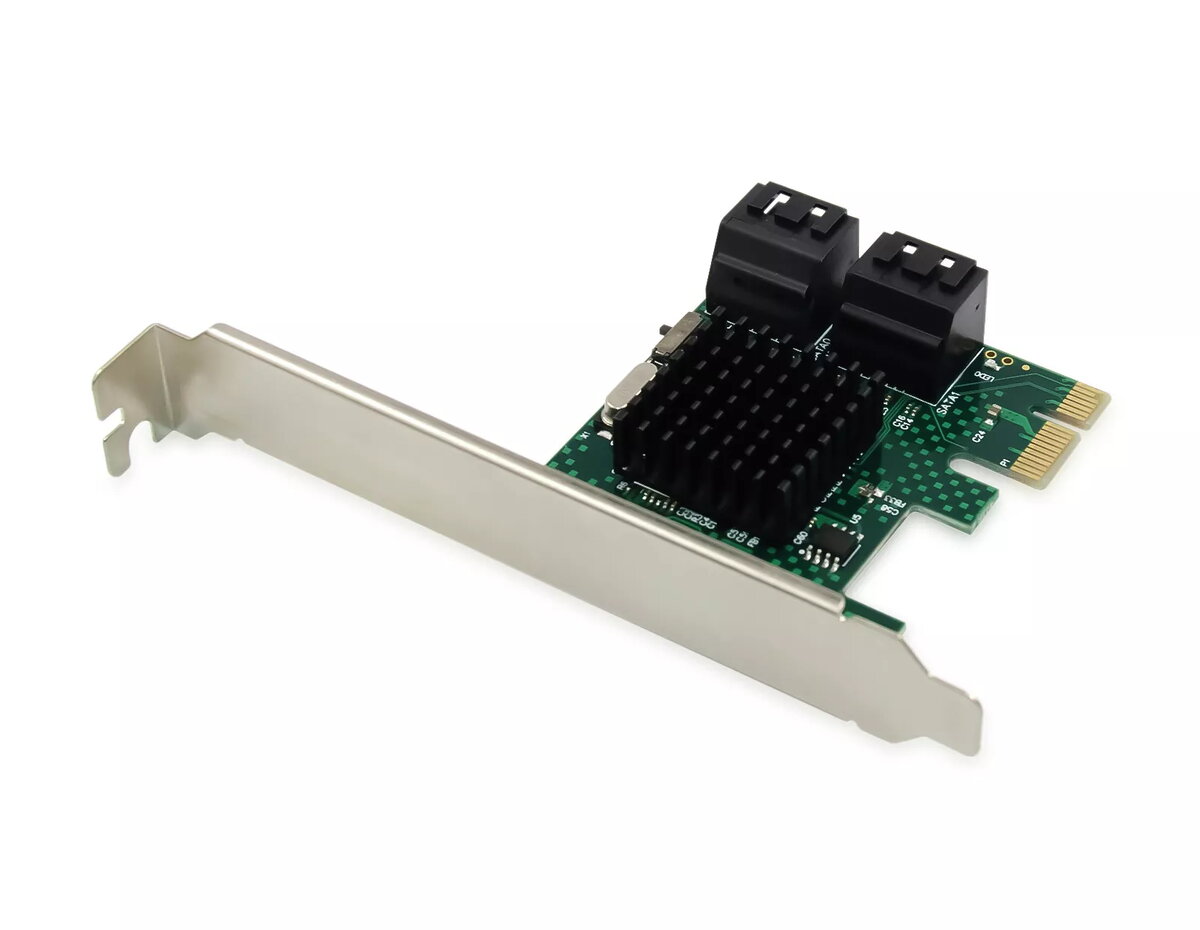

SATA PCIe Adapter Conceptronic EMRICK Photo 1

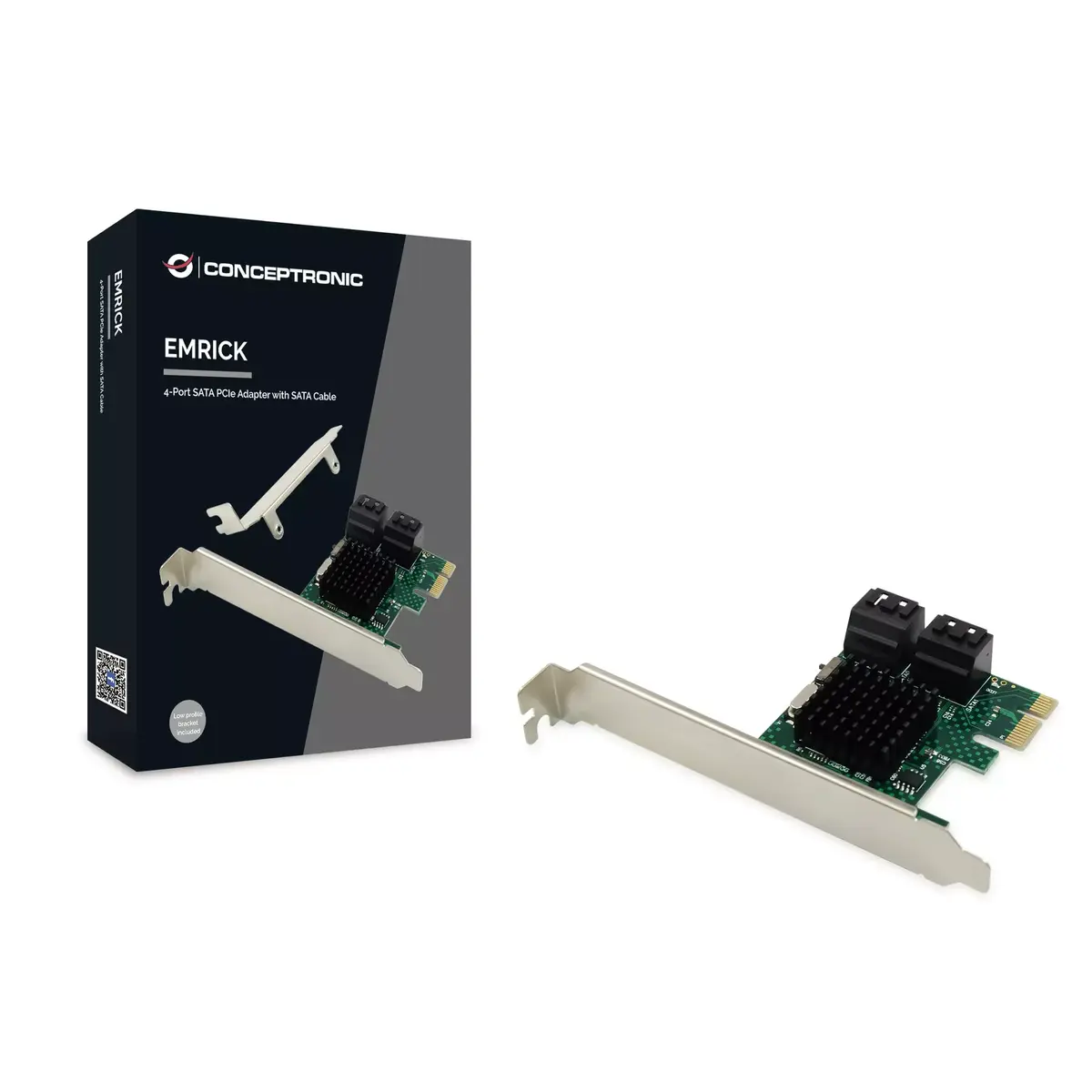

SATA PCIe Adapter Conceptronic EMRICK Photo 2

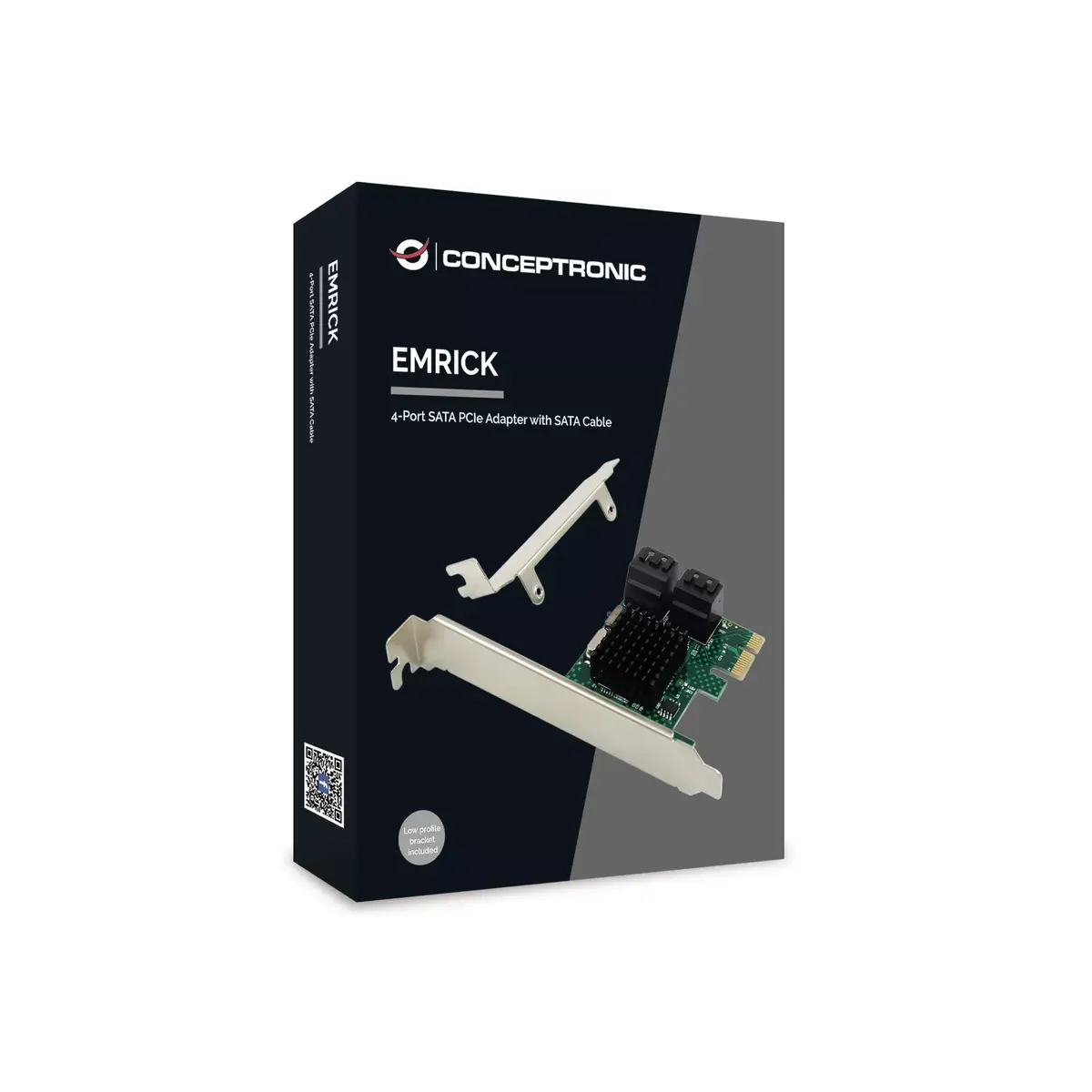

SATA PCIe Adapter Conceptronic EMRICK Photo 3

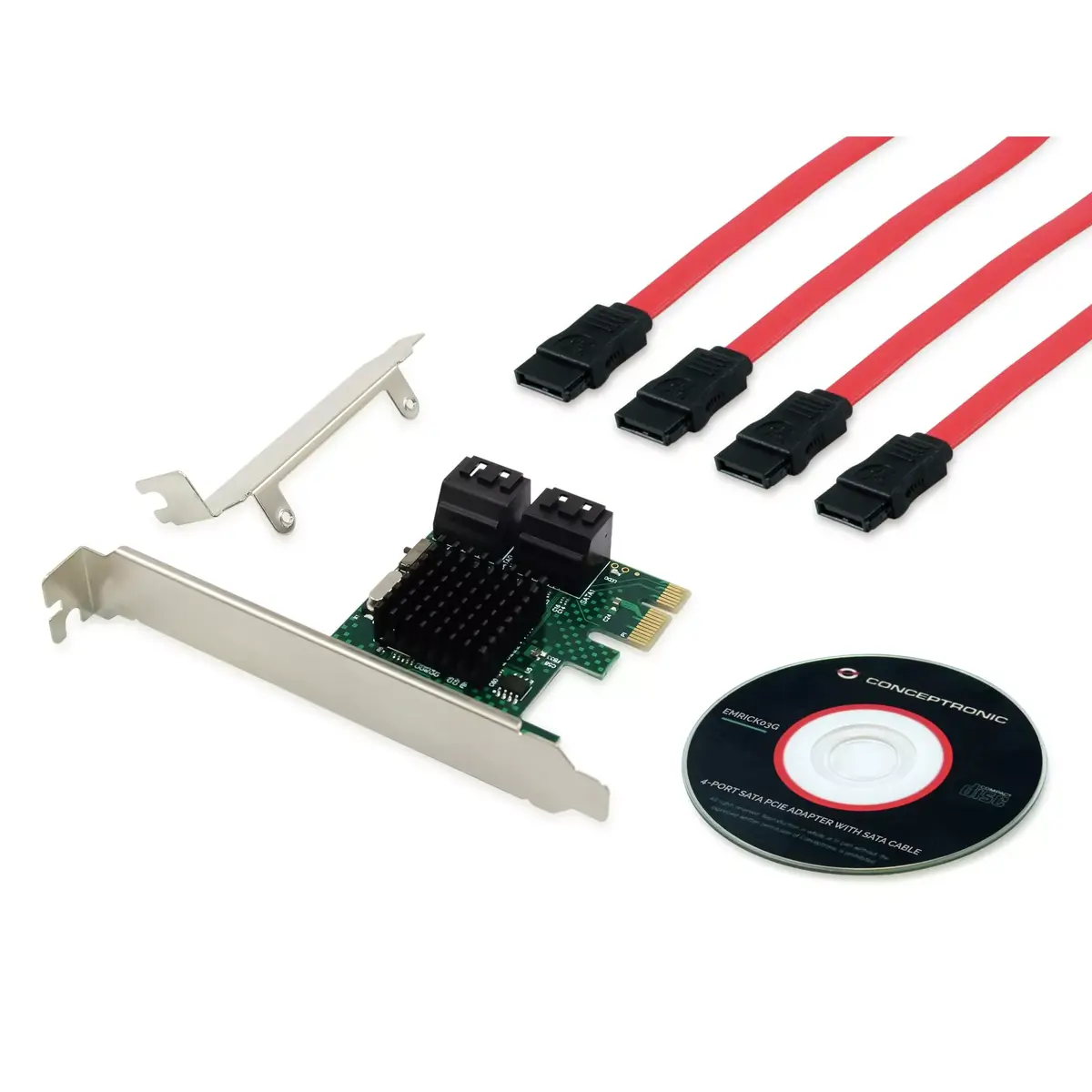

SATA PCIe Adapter Conceptronic EMRICK Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Conceptronic EMRICK 4-Port SATA PCIe Adapter allows you to expand your system's storage capabilities with four SATA ports. It features a PCIe 2.0 host interface and supports data transfer rates of up to 6 Gbit/s, powered by the ASMedia1061 chipset. Compatible with various Windows 10 operating systems, this compact adapter measures 43 mm in width, 65 mm in depth, and 18 mm in height, making it an efficient solution for enhancing your computer's performance.

Available at price 35.49 €: 917 pcs.

Total available for order: 1834 pcs.

Warranty: 2 Years

SKU: 3583330

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.36 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Conceptronic EMRICK 4-Port SATA PCIe Adapter expands a desktop system with four additional SATA ports using ASMedia high-performance controllers (ASM1061 + ASM1093). Each SATA port supports transfer rates up to 6 Gbit/s and is backward compatible with SATA 3 Gbit/s and 1.5 Gbit/s devices. The card connects via a PCIe host interface and provides Mode switching to operate in IDE or AHCI modes.

Advantages

This compact adapter delivers four internal SATA outputs on a PCIe 2.0 interface, enabling straightforward storage expansion without replacing the motherboard. The ASMedia chipset ensures support for modern 6 Gbit/s drives while retaining compatibility with older SATA drives. Mode switching offers flexibility for legacy systems and different operating environments.

Suitable for

Adding extra internal SATA drives to a desktop PC
Upgrading a system to support 6 Gbit/s SATA SSDs or HDDs
Systems requiring IDE or AHCI mode compatibility
Small-form installations where a compact PCIe adapter is needed

Key specifications

Brand: CONCEPTRONIC
Model: EMRICK03G
Interface: PCIe (host)
Controller: ASMedia (ASM1061 + ASM1093)
Number of SATA ports: 4 internal SATA
Max transfer rate: 6 Gbit/s per port (backward compatible with 3 Gbit/s and 1.5 Gbit/s)
Dimensions (W x D x H): 43 x 65 x 18 mm
Weight: 0.041 kg
Internal/External: Internal
EAN: 4015867221976

How to use

Power down the computer and unplug it from the mains. Insert the adapter into an available PCIe slot on the motherboard, secure it in the chassis, and connect internal SATA cables from the adapter to your drives. Connect the drives to the system power supply. Re-power the computer, enter BIOS/UEFI if needed to configure the adapter mode, and install any required drivers for your operating system.

Usage recommendations

Install the adapter in a free PCIe 2.0 (or compatible) slot and ensure adequate airflow around installed drives. When adding multiple drives, use the AHCI mode for modern operating systems and SSDs; switch to IDE mode only for legacy OS compatibility. Verify driver availability for your OS before installation.

Specifications

Host interface:: PCIe
Weight:: 0.041 kg
Internal:: Yes
Output interface:: SATA

All features

Ports & interfaces

Host interface:: PCIe
Output interface:: SATA
Internal SATA ports quantity:: 4
SATA revision:: 3.0
Port multiplier:: Yes
Expansion card standard:: PCIe 2.0

Other features

Hot-Plug support:: Yes

Weight & dimensions

Weight:: 0.041 kg
Package weight:: 120 g
Height:: 18 mm
Width:: 43 mm
Depth:: 65 mm

System requirements

Windows operating systems supported:: Windows 8.1 Pro, Windows 7 Professional x64, Windows 8.1 Enterprise x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8 Pro, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows 7 x64, Windows 7 Ultimate x64, Windows 7 Ultimate, Windows 7 Starter x64, Windows 7 Starter, Windows XP Home, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows XP Home x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows 7 Home Premium x64, Windows XP Professional x64, Windows XP Professional, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Professional, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 7 Enterprise, Windows 7, Windows 10 x64, Windows 10 Pro x64, Windows 10 IoT Enterprise
Linux operating systems supported:: Y

Design

Internal:: Yes

Performance

Chipset:: ASMedia1061
Hot-swap:: Yes

Logistics data

Country of origin:: China
Master (outer) case height:: 415 mm
Master (outer) case width:: 280 mm
Master (outer) case gross weight:: 4000 g
Master (outer) case length:: 180 mm
Products per master (outer) case:: 30 pc(s)

Packaging data

Cables included:: SATA
Package depth:: 156 mm
Package height:: 26 mm
Package width:: 132 mm
Package type:: Box
Quick installation guide:: Yes
Mounting brackets included:: Yes

Features

Native Command Queuing (NCQ):: Yes
Data transfer rate (max):: 6 Gbit/s

Hide Show all
