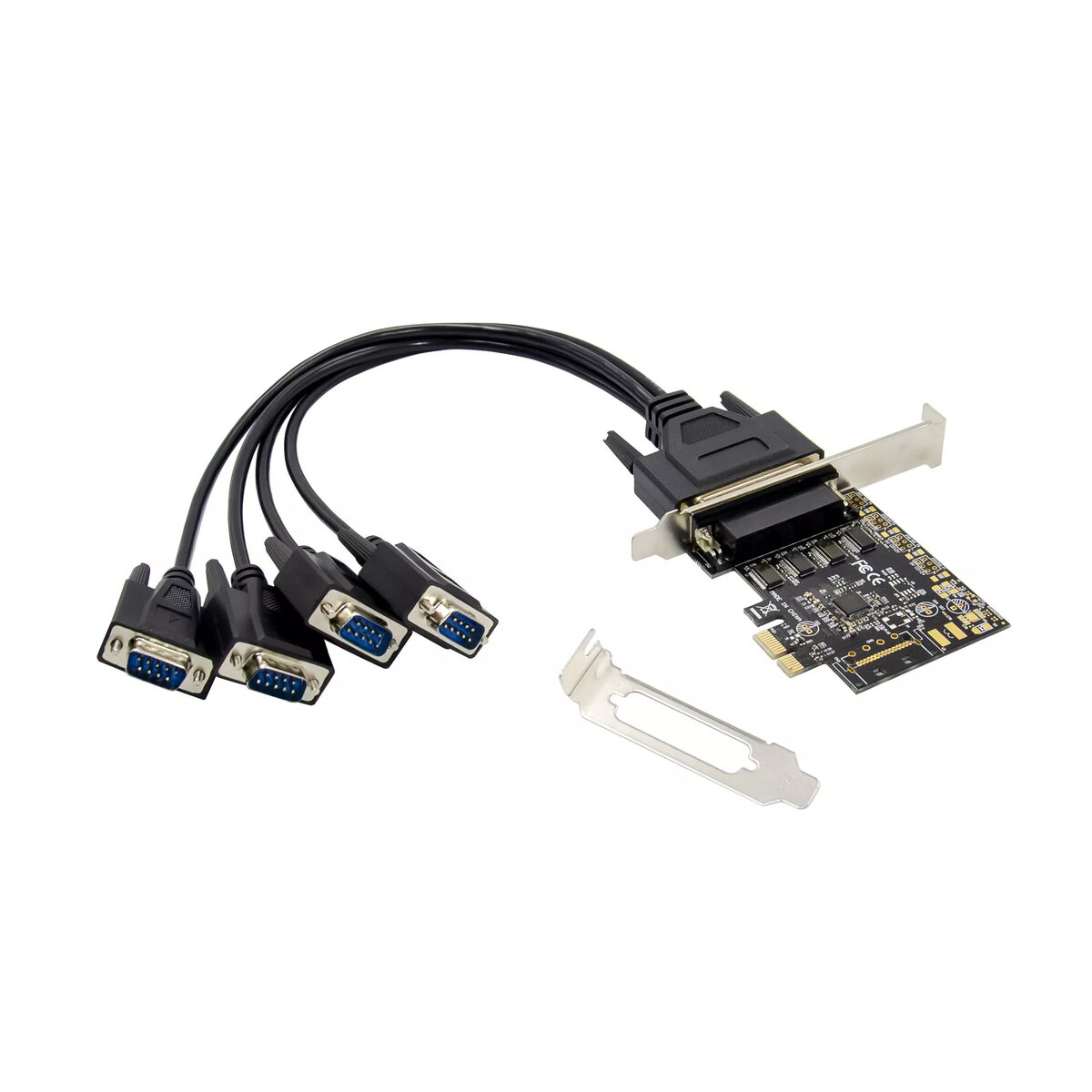

4-Port DB9 RS232 Serial PCIe Card Conceptronic EMRICK12B

Name: 4-Port DB9 RS232 Serial PCIe EMRICK12B
Brand: CONCEPTRONIC
SKU: 10965685
Price: 45.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

4-Port DB9 RS232 Serial PCIe Card Conceptronic EMRICK12B Photo 3

Excellent choice

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Conceptronic 4-Port DB9 RS232 Serial PCIe Card offers four RS-232 ports for reliable serial communication. It features a PCIe 2.0 interface, supports Windows operating systems including Windows 10, and has a FIFO buffer of 256 B for efficient data handling. Compact dimensions of 85 mm x 69 mm x 3 mm make it suitable for various setups. Ideal for connecting legacy devices and peripherals.

Available at price 45.99 €: 256 pcs.

Total available for order: 666 pcs.

Warranty: 2 Years

SKU: 10965685

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

15.10.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.34 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

15.10.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Conceptronic 4-Port DB9 RS232 Serial PCIe Card (EMRICK12B) provides four RS-232 serial ports for adding reliable serial communication to desktop systems. It uses a PCIe host interface (PCIe 2.0) and includes a 256-byte FIFO buffer to improve data handling. The card is compact (85 × 69 × 3 mm), fits standard PCIe slots and is suitable for connecting legacy devices and peripherals that require RS-232 connections.

Advantages

The card offers four independent DB9 ports with RS-232 signaling and supports transmission speeds up to 115200 bps, along with hardware and software flow control for stable communications. Its PCIe interface ensures compatibility with modern motherboards, and the onboard FIFO buffer reduces CPU overhead during bursts of serial traffic. The compact, low-profile design and black finish simplify integration into a variety of system builds.

Suitable for

Connecting legacy industrial equipment and instrumentation
Point-of-sale systems and receipt printers
Modems, UPS units and serial-controlled peripherals
Embedded systems development and serial debugging

Key specifications

Host interface: PCIe (PCIe 2.0)
Output interface: 4 × DB9 RS-232 ports
Max transmission speed: 115200 bps
FIFO buffer: 256 bytes
Dimensions: 85 mm × 69 mm × 3 mm
Weight: 0.25 kg
Product colour: Black
Internal installation: Yes

How to use

Install the card into an available PCIe slot on a powered-off desktop PC, secure it to the chassis, and connect RS-232 devices to the DB9 ports using standard serial cables. After powering on the system, install the appropriate drivers for your operating system (drivers are available for Windows including Windows 10). Configure port parameters such as baud rate, parity and flow control in the OS device manager or terminal software to match the connected device.

Usage recommendations

Use shielded serial cables for improved signal integrity over longer runs and enable hardware flow control where supported by both the card and the connected device to minimize data loss at higher speeds.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: RS-232

All features

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.25 kg
Height: The measurement of the product from head to foot or from base to top.: 3 mm
Depth: The distance from the front to the back of something.: 69 mm
Width: The measurement or extent of something from side to side.: 85 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -10 - 55

System requirements

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 7 Starter x64, Windows 11 Enterprise x64, Windows 7 Starter, Windows 7 Professional x64, Windows 7 Professional, Windows 7 Home Premium x64, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 7 Enterprise, Windows 7, Windows 11 x64, Windows 11 Pro, Windows 11 Home, Windows 11 Enterprise, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 11, Windows 10 x64, Windows 10 Pro x64, Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 IOT Core, Windows 10 Home x64, Windows 10 Home, Windows 10 Enterprise x64, Windows 10 Enterprise, Windows 10 Education x64, Windows 10 Education, Windows 10

Other features

Drivers included:: Yes

Logistics data

Harmonized System (HS) code:: 8471800000
Master (outer) cases per pallet:: 30 pc(s)
Products per master (outer) case:: 25 pc(s)
Master (outer) case gross weight:: 10000 g
Master (outer) case height:: 350 mm
Master (outer) case length:: 380 mm
Master (outer) case width:: 490 mm
Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Pallet gross height:: 1630 mm

Packaging data

Package type: The type of product package e.g. box.: Box
Package height: The distance from the top to the bottom of the packaging.: 75 mm
Package depth: The distance from the front to the back of the packaging.: 140 mm
Package width: The distance from one side of the packaging to the other.: 172 mm
Quick installation guide:: Yes

Technical details

Sustainability compliance:: Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: CE, RoHS

Features

FIFO (First In, First Out):: 256

Design

Product colour: The colour e.g. red, blue, green, black, white.: Black
Internal: The product is built in.: Yes

Ports & interfaces

Serial interface type:: RS-232
Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.: 4
Expansion card standard:: PCIe 2.0
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: RS-232
