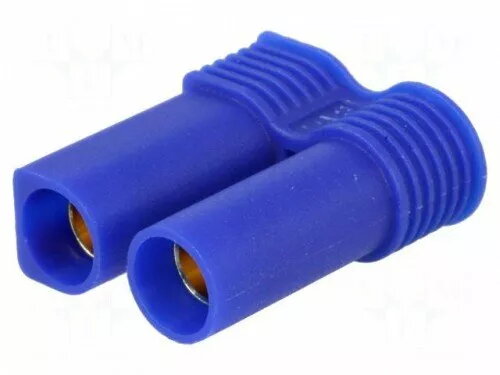

Connector plug EC5 female 40A 500V, high-current electrical connector

EC5 female connector plug rated for 40A and 500V is a high-current electrical connector designed for reliable DC power connections. The product features robust metallic contacts enclosed in an insulated housing to provide secure, low-resistance electrical coupling for battery packs, charging systems, RC models and power distribution assemblies. Its dimensions and contact geometry ensure a firm fit with matching EC5 male plugs while the insulating shell reduces risk of short circuits and improves handling safety.

Advantages

The EC5 female connector plug provides stable low-resistance contacts that support continuous currents up to 40A and insulation suitable for voltages up to 500V. The insulated housing offers mechanical protection and helps prevent accidental contact with live terminals. The connector’s design supports repeated mating cycles with minimal signal degradation, and the metallic contacts are shaped to maintain consistent pressure and conductivity. Compact form factor allows integration into tight assemblies while providing reliable high-current performance.

Suitable for

• Battery packs for electric vehicles, scooters and portable power systems
• Remote-controlled models (RC cars, planes, boats) requiring high-current connections
• DC power supplies and charger connections for lithium battery systems
• Power distribution setups in hobbyist and small industrial applications

Key specifications

• Continuous current rating: 40 A
• Insulation voltage rating: 500 V
• Connector gender: female (receptacle) contact configuration
• Contact material: plated metallic contacts for low resistance (typical for EC5 style)
• Housing: insulated shell to prevent short circuits and ease handling
• Compatibility: mates with standard EC5 male plugs

How to use

Align the EC5 female connector with the corresponding EC5 male plug, ensuring correct orientation of the contacts. Push the connectors together until a positive mechanical engagement is felt; do not force if misaligned. For detachable wiring, solder or use approved crimp terminals on the connector leads following manufacturer-recommended methods. Ensure that wire gauge and terminations are appropriate for 40A continuous current to avoid overheating. Before applying power, inspect the mating surfaces and insulation for damage or debris.

Usage recommendations

Use appropriate wire gauge (commonly 12–16 AWG depending on length and current) and secure solder or crimp connections. Avoid exposing the connector to moisture or corrosive environments without additional sealing. Periodically inspect contacts for oxidation and clean or replace if contact resistance increases. Do not exceed the rated continuous current and voltage to maintain safe operation.
