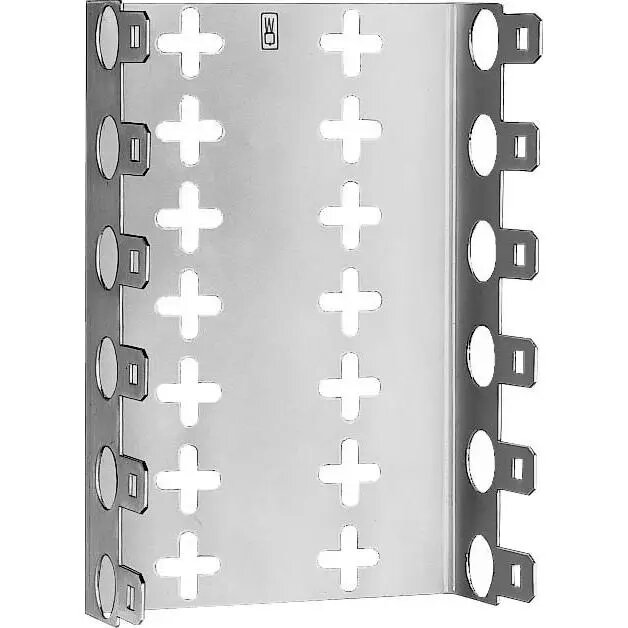

Mounting Tray Corning LSA-Plus 79151-550 00 R27.5 T49 for 55+1 Modules (DE620022181)

The Corning LSA-Plus mounting tray 79151-550 00 R27.5 T49 is a hardware tray designed to accept and securely hold telecommunication modules in a 55+1 module layout. With a form factor tailored for LSA-Plus systems, the tray provides a stable platform for module installation, orderly cable routing and protection of connections in central offices, distribution frames and splice enclosures. The construction supports standard module widths and aligns with mounting points used in professional telecom racks and cabinets.

Advantages

This mounting tray offers a robust and stable mounting surface that simplifies installation of LSA-Plus compatible modules. Its R27.5 T49 form factor ensures consistent alignment and fit for 55+1 module arrangements, reducing installation time and minimizing rework. The tray's layout facilitates neat cable routing and strain relief, helping to maintain signal integrity and ease of maintenance. Materials and dimensions are selected to integrate seamlessly with common telecom enclosures and distribution hardware.

Suitable for

• Organizing and mounting LSA-Plus telecom modules in distribution frames
• Use in central office racks and communication cabinets
• Splice enclosures and patching panels requiring a 55+1 module layout
• Sites needing tidy cable routing and straightforward module replacement

Key specifications

• Compatibility: designed for LSA-Plus modules in a 55+1 layout
• Form factor: R27.5 T49 to match corresponding mounting systems
• Function: provides secure module mounting and organized cable routing
• Installation: suitable for standard telecom racks, frames and enclosures
• Construction: rigid tray profile for stable mechanical support

How to use

Mount the tray into the intended rack or enclosure at the appropriate mounting points, ensuring the R27.5 T49 orientation matches the cabinet or frame specification. Install LSA-Plus modules into the tray positions according to the 55+1 layout, securing modules to the tray as required by the module design. Route cables through the designated channels or around the tray edges to provide strain relief and avoid sharp bends. Verify alignment and clearances before fastening the tray permanently.

Usage recommendations

For reliable performance, use the tray with LSA-Plus compatible modules and within enclosures that support the R27.5 T49 form factor. Maintain proper bend radii for cables, secure connectors to prevent strain, and perform periodic inspections to ensure mechanical fastenings remain tight and connections are clean.
