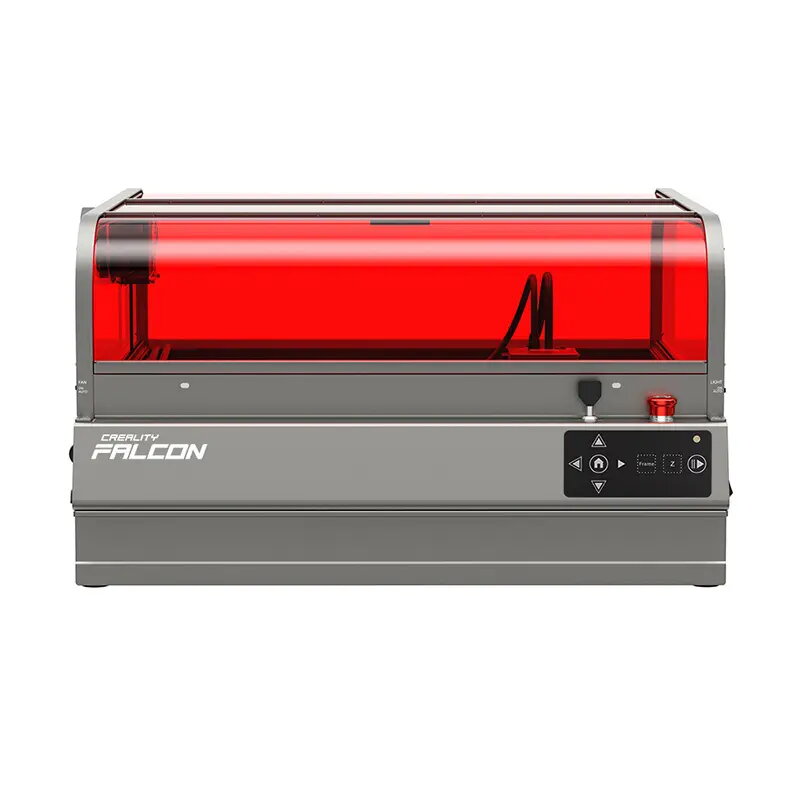

Laser engraving machine Creality Falcon 2 Pro S 22W — desktop laser engraver 22W output

The Creality Falcon 2 Pro S 22W is a desktop laser engraving machine designed for precise cutting and engraving on a variety of materials. It features an integrated camera, One Click Auto Focus and a 22W diode-based laser module assembled from multiple diodes to provide higher cutting power. The unit includes an internal exhaust system, several safety sensors and supports offline operation via TF card. The working area is 355 × 390 mm and the machine is built from aircraft-grade aluminum for stable, high-speed operation.

Advantages

The device combines a high-power 22W laser module with an integrated camera and automatic focus to speed up positioning and improve engraving accuracy. Built-in fans and airflow monitoring remove fumes and help preserve lens condition, while flame detection and lens-dirt alerts increase operational safety. Class 1 (FDA) safety and a transparent filtered cover enable observation of the process without direct laser exposure. The machine supports offline use, includes a variety of accessories and runs with common engraving software such as LightBurn and LaserGRBL.

Suitable for

• Cutting and engraving wood, acrylic and leather
• Prototyping and small-batch production of parts up to the working area
• Creating detailed graphics on small objects using camera-based positioning

Key specifications

• Optical power: 22 W (diode module)
• Working area: 355 × 390 mm
• Max cutting capability (typical): up to ~20 mm wood (depends on material and settings)
• Maximum speed: up to 600 mm/s
• Laser wavelength: ~455 nm
• Laser class: Class 1 (FDA)
• Input: 100–240 V ~ 50/60 Hz; Output: DC 24 V 5 A
• Operating temperature range: 5 °C – 35 °C
• Construction: aircraft-grade aluminum frame
• Supported file formats: jpeg, jpg, png, bmp, svg, dxf and others
• Compatible software: LightBurn, LaserGRBL (Windows/MacOS)

How to use

Place the Falcon 2 Pro S on a stable surface and connect the power supply. Install the material on the working area and use the integrated camera and software to position your design. Use One Click Auto Focus to set the working distance automatically, then configure power and speed according to the material and desired result. For offline operation, copy the project to the supplied TF card and start the job directly from the device. Monitor ventilation and safety sensors during operation and remove finished parts when the machine has stopped.

Usage recommendations

Use appropriate ventilation and the provided Air Assist for cleaner cuts and reduced smoke. Start with lower power and test cuts on scrap material to determine optimal settings. Keep lenses and the work area clean, follow the flame protection alerts, and do not bypass safety interlocks; although the device is Class 1, avoid direct exposure to laser light and keep children and pets away during operation.
