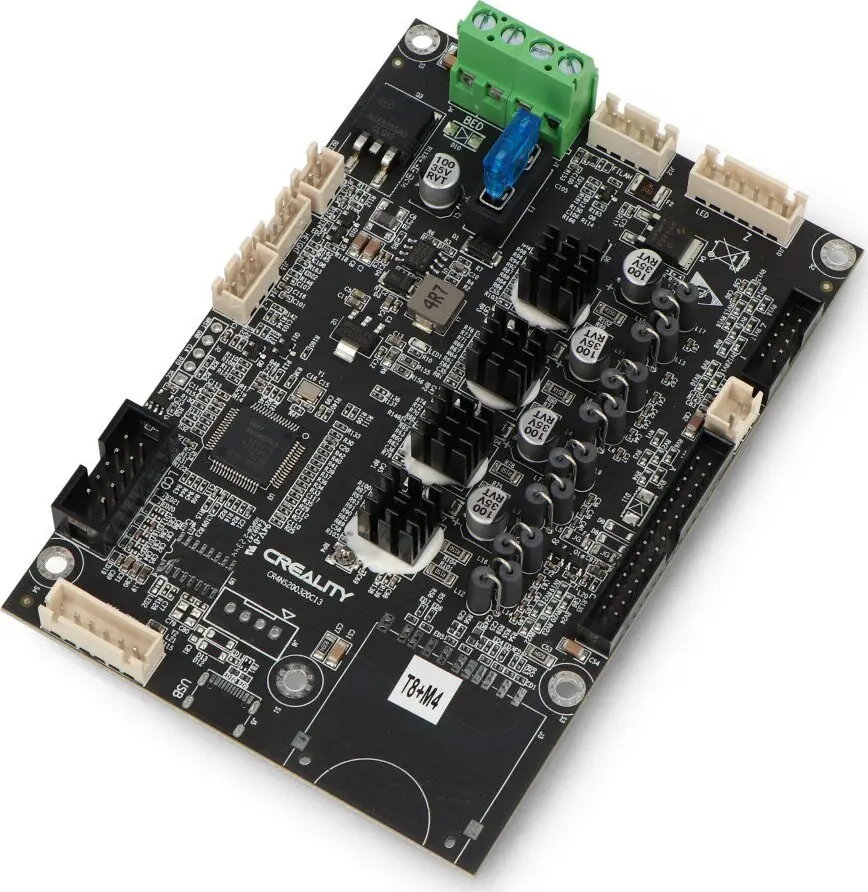

Motherboard Creality Ender-3 V3 KE — Creality original replacement board

The Creality Ender-3 V3 KE motherboard is an original replacement mainboard for Creality Ender-3 V3 series printers. It provides the core electronics responsible for coordinating stepper motors, temperature sensors, heater cartridges, endstops and external interfaces. The board is intended to restore or maintain factory functionality in compatible Ender-3 V3 machines and to ensure reliable motion control and temperature management during printing.

Advantages

This original Creality mainboard is built to match the electrical and firmware requirements of Ender-3 V3 series printers, ensuring compatibility with existing wiring harnesses and standard firmware configurations. It centralises motor drivers, thermistor inputs and heater outputs on a single PCB to simplify installation and reduce points of failure. Using a manufacturer original board helps maintain expected safety behaviours for thermal control and endstop responses.

Suitable for

• Repairing a malfunctioning or damaged control board on Ender-3 V3 series printers
• Replacing an original mainboard after electrical fault or component failure
• Maintaining workshop printers to restore stock performance and safety features

Key specifications

• Form factor: single-board controller designed for Creality Ender-3 V3 series mounting points and connectors
• Functionality: controls stepper motors, heaters, thermistor or temperature sensor inputs, endstops and user interfaces
• Connectivity: standard printer harness connectors for motors, hotend, heated bed, fans and display/interface
• Compatibility: intended for use with Ender-3 V3 series machines and associated stock components
• Firmware: compatible with Creality firmware images and standard printer control firmware used on Ender-3 V3

How to use

Disconnect power and remove the printer cover before replacing the mainboard. Transfer wiring from the original board to the replacement board following connector labels and wire positions to ensure correct motor phases, heater and sensor connections. Reinstall the board in the mounting position, secure all fasteners, reconnect the display and ensure the power supply ground and voltage lines are correct. After initial power-up, confirm that the controller recognises endstops, thermistors and motors, and verify temperature readings and axis movement at low speed before running a print.

Usage recommendations

Use this original Creality replacement board with compatible Ender-3 V3 series printers. Always perform wiring checks and a controlled power-up sequence after installation, verify firmware compatibility and, if necessary, flash the official firmware image matching your printer configuration. Observe electrostatic discharge precautions when handling the PCB and avoid operating the printer with damaged wiring or connectors.
