Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
0.2186 kg
-
Wi-Fi standards:
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
-
Wi-Fi 4 (802.11n)
-
Power consumption (typical):
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
-
1 W
-
Security algorithms:
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
-
WPA, WPA2, WPA3
-
Operating relative humidity (H-H):
-
5 - 95
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-40 - 85
-
Package weight:
Weight of the packaged product.
-
566.7 g
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-40 - 75
-
Serial interface type:
-
RS-232/485
-
AC adapter included:
-
Yes
-
Ethernet LAN:
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
-
Yes
-
Height:
The measurement of the product from head to foot or from base to top.
-
28.3 mm
-
Input voltage:
The voltage (V) which is required to power the product.
-
100 - 240
-
Output voltage:
-
12
-
LED indicators:
-
Y
-
Width:
The measurement or extent of something from side to side.
-
104.4 mm
-
Depth:
The distance from the front to the back of something.
-
103 mm
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-

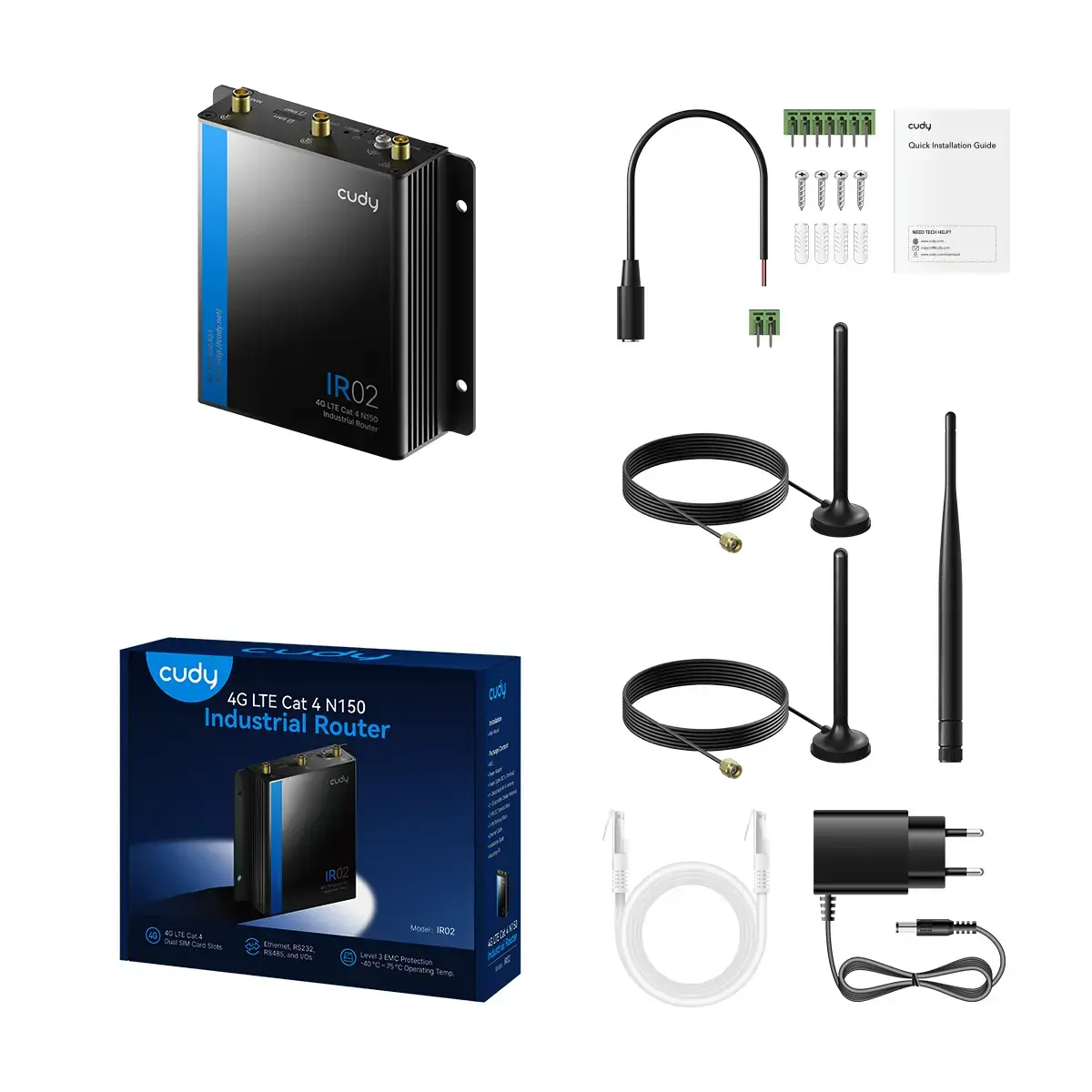

Cables included:
-
DC, LAN (RJ-45)
-
Mounting:
What size the mounting head of the product is, to couple it with a camera.
-
Wall mounting
-
Ethernet LAN (RJ-45) ports:
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
-
2
-
Device type:
Type or category of the device.
-
Cellular network router
-
Antenna connector type:
The way in which the antenna is connected to the device e.g. coaxial.
-
RP-SMA
-
MAC address filtering:
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
-
Yes
-
Wi-Fi:
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
-
Yes
-
WLAN data transfer rates supported:
-
150, 130
-
DHCP client:
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
-
Yes
-
Ethernet LAN data rates:
The different speed levels of the Ethernet LAN connection.
-
10, 100
-
Reset button:
-
Yes
-
Package depth:
The distance from the front to the back of the packaging.
-
162 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
57 mm
-
Package width:
The distance from one side of the packaging to the other.
-
200 mm
-
Quick start guide:
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
-
Yes
-
Housing material:
What the casing of the product is made of.
-
Metal
-
DMZ support:
-
Yes
-
IP address filtering:
-
Yes
-
Antennas quantity:
-
3
-
Port forwarding:
-
Yes
-
Data network:
Telecommunications network that allows computers to exchange data.
-
4G, WCDMA, 3G
-
Number of SIM cards:
-
2
-
Built-in processor:
Whether or not a processor is built into the device.
-
Yes
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP30
-
Power source type:
What the power source is.
-
AC
-
Power consumption (max):
The maximum amount of power used by the device.
-
7 W
-
Firewall:
-
Yes
-
4G standard:
-
LTE-TDD & LTE-FDD
-
Guest access:
-
Yes
-
Wi-Fi band:
The frequency bands the product features.
-
Single-band (2.4 GHz)
-
Ethernet LAN interface type:
The characteristics of the Ethernet LAN interface.
-
Fast Ethernet
-
MIMO:
-
Yes
-
MIMO type:
-
Multi User MIMO
-
Wi-Fi Protected Setup (WPS):
-
Yes
-
Compliance certificates:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
-
Federal Communications Commission (FCC), CE
