header-product Barcode module bar barcode readers CUSTOM KBR2D-C
128.49 €

Barcode module bar barcode readers CUSTOM KBR2D-C

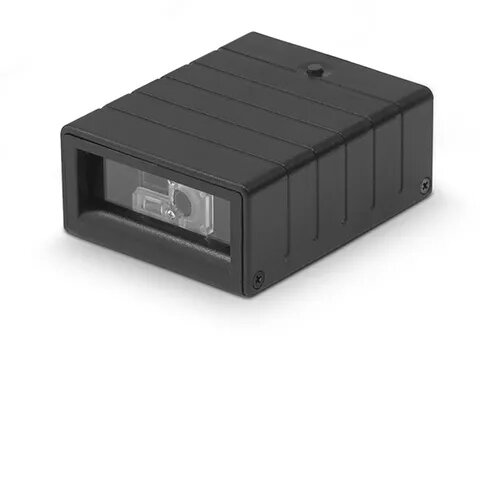

Barcode module CUSTOM KBR2D-C Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Barcode module bar barcode readers CUSTOM KBR2D-C

{{email}}
You keep track of price changes

Barcode module bar barcode readers CUSTOM KBR2D-C

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The CUSTOM KBR2D-C is a versatile barcode module supporting both 1D and 2D barcodes. It features wired connectivity via USB and is compatible with various linear barcodes including Codabar and EAN-13. With a compact design, it weighs only 106 g and is made from durable polycarbonate. Operating at 5V with a power consumption of 380 mA, it is efficient and reliable for various applications.
Available at price 128.49 €: 10 pcs.
Total available for order: 20 pcs.
Warranty: 2 Years
SKU: 3615522
Manufacturer: custom
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
21.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
24.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.11 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
24.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The CUSTOM KBR2D-C barcode module is a compact reader designed to decode both 1D and 2D barcodes. It supports a wide range of linear barcode types and connects to host devices via a wired USB interface. Housed in a durable polycarbonate enclosure and weighing approximately 106 g, the module operates at 5 V with a typical power consumption of 380 mA, making it suitable for embedded systems, kiosks, POS terminals, and other stationary installations where reliable scanning of barcodes is required.

Advantages

The barcode module offers dual-format decoding capability for 1D and 2D codes in a single compact unit, reducing the need for multiple scanners. Its USB wired interface provides stable data transfer and straightforward integration with many operating systems and controllers. The polycarbonate housing combines impact resistance with a lightweight design, while low power consumption supports continuous operation in constrained power environments. The module’s support for common linear formats such as Codabar and EAN-13 ensures broad compatibility with retail, logistics, and inventory systems.

Suitable for

  • Point-of-sale terminals and checkout counters
  • Handheld or fixed kiosks and self-service systems
  • Inventory management and stock control stations
  • Embedded devices and compact hardware integrations
  • Logistics and shipping label verification

Key specifications

  • Barcode types supported: 1D (including Codabar, EAN-13) and 2D
  • Interface: Wired USB
  • Housing material: Polycarbonate
  • Weight: approximately 106 g
  • Operating voltage: 5 V
  • Typical power consumption: 380 mA
  • Form factor: compact module for integration into devices

How to use

Connect the module to a host system using the USB interface and allow the host to recognize the device. Position the barcode module so the illuminated scan window faces the barcode to be read. For best results, ensure barcodes are clean and undamaged and maintain an appropriate distance and alignment between the code and the module’s optics. Configure the host application to accept incoming barcode data from the connected USB device; in many systems the reader will act as a keyboard wedge or a serial-over-USB device depending on the driver and host configuration.

Usage recommendations

Use the module in environments protected from excessive dust, moisture, and direct sunlight to preserve optical performance. Regularly inspect the scan window and clean it with a soft, lint-free cloth when necessary. For embedded installations, allow sufficient clearance for cable routing and consider securing the module to reduce mechanical stress on connectors. When integrating into software, verify character encoding and field parsing to ensure barcode data is processed correctly.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.106 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Barcode module bar barcode readers
Power source type: What the power source is.
DC
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Micro QR Code, QR Code, PDF417, MicroPDF417, Han Xin, Aztec Code, Data Matrix
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
Codabar, Interleaved 2 of 5, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Industrial 2 of 5, JAN, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
All features

Operational conditions

Operating relative humidity (H-H):
20 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 50

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.106 kg
Height: The measurement of the product from head to foot or from base to top.
28 mm
Depth: The distance from the front to the back of something.
69 mm
Width: The measurement or extent of something from side to side.
56 mm

Power

Power consumption:
380 mA
Input voltage: The voltage (V) which is required to power the product.
5
Power source type: What the power source is.
DC

Performance

Built-in display: A display which is part of the product, so you do not need to attach another display.
No
Buzzer:
Yes
Housing material: What the casing of the product is made of.
Polycarbonate (PC)
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Pitch reading angle:
5 - 60
Light levels (direct sunlight):
0 - 100000
Working distance:
280 mm
Optical sensor resolution (W x H):
1280 x 800
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
Codabar, Interleaved 2 of 5, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Industrial 2 of 5, JAN, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Micro QR Code, QR Code, PDF417, MicroPDF417, Han Xin, Aztec Code, Data Matrix
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Barcode module bar barcode readers

Description
