Uninterruptible Power Supply UPS CyberPower OL6KERTHD

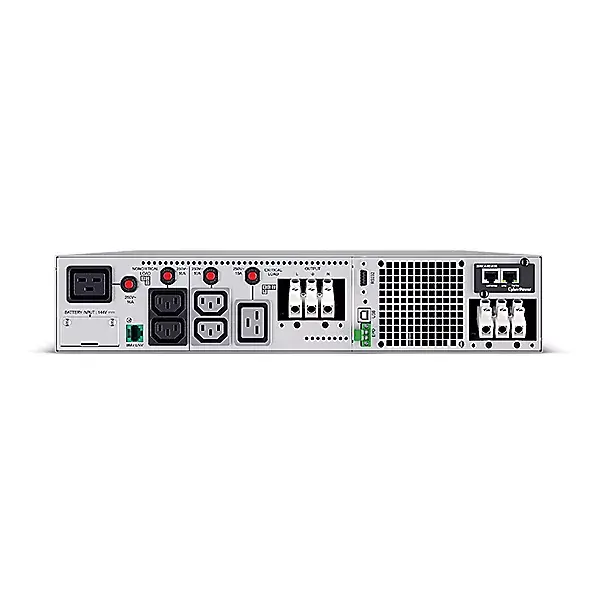

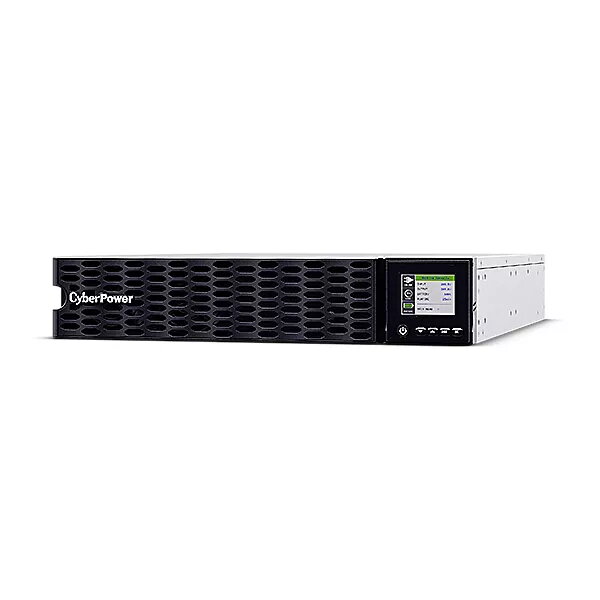

The CyberPower OL6KERTHD is a double-conversion online UPS with a rated capacity of 6 kVA (6000 W) designed for rackmount or tower deployment. It provides continuous, clean power output through online (VFI) topology and supports generator compatibility. The unit includes seven AC outlets (C13, C19, Terminal), a USB 2.0 port for local monitoring, hot-swappable sealed lead-acid (VRLA) battery packs, and a tiltable color LCD panel for local status and alarm information. Typical backup time is approximately 2.4 minutes at full load and 6.2 minutes at half load; runtime can be extended using optional external battery modules. Compliance with CE, EAC, RCM and RoHS standards ensures basic regulatory conformity for safety and environmental requirements.

Advantages

Double-conversion topology delivers continuous, regulated AC output independent of input power quality, protecting connected equipment from surges, sags and frequency variations. Hot-swappable battery packs allow battery replacement or maintenance without shutting down connected loads. The tiltable color LCD panel provides clear, at-a-glance monitoring of input/output status, load and battery condition. ECO Mode can reduce energy consumption when input power quality is stable. Built-in support for extended battery modules and patented battery management technology improves runtime flexibility and helps maintain balanced battery string voltage to extend battery life.

Suitable for

• Servers and data centre rack equipment
• Workstations and professional desktop systems
• Network and telecom infrastructure, including switches and routers
• NAS, storage arrays and backup appliances
• Security and surveillance systems, CCTV recording stations
• Emergency systems and critical control equipment

Key specifications

• Output power: 6000 W
• Output power capacity: 6 kVA
• Topology: Double-conversion online (VFI)
• AC outlets: 7 (combination of C13, C19 and terminal block)
• Battery type: Sealed Lead Acid (VRLA), hot-swappable packs
• Typical backup time: ~2.4 minutes at full load, ~6.2 minutes at half load (may vary by load and configuration)
• Expansion: Supports external/extended battery modules for increased runtime
• Monitoring: Tiltable color LCD panel and USB 2.0 port for local communications
• Form factor: Rackmount or tower installation; metal housing
• Colour: Black and Grey
• Weight: 42 kg

How to use

Install the UPS in a suitable rack space or place it in tower orientation on a stable, ventilated surface. Connect the UPS to a dedicated mains supply and to the generator if generator compatibility is required; follow local electrical codes for input connections. Plug critical devices into the provided AC outlets and connect the USB 2.0 port to a management station if software monitoring is desired. Configure the PowerPanel Power Management Software for real-time monitoring, graceful shutdown settings and scheduled tests. For battery replacement or maintenance, power the unit down or transfer the load if required by your operating procedure, then replace hot-swappable battery packs while keeping the UPS enclosure secured. If using external battery modules, follow manufacturer instructions for safe connection and charging sequences.

Usage recommendations

Place the UPS in a temperature-controlled, dust-free environment and allow adequate clearance for ventilation. Periodically check the LCD status and perform scheduled battery tests to verify runtime. Use the ECO Mode when power quality is consistently stable to reduce operating costs, and plan for battery replacement according to measured battery health and runtime needs. When extending runtime with external battery modules, ensure matching battery specifications and proper connection according to the manufacturer’s guidelines.
