Type:
Characteristics of the device.
-

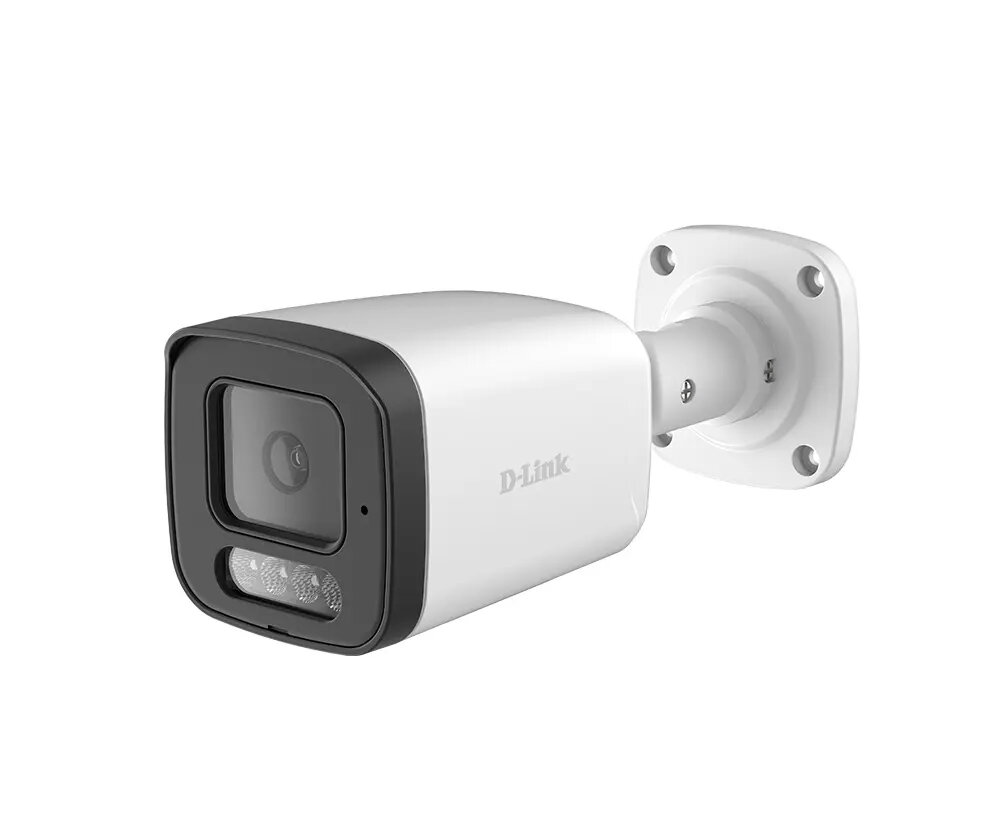

IP security camera
-
Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
0.38 kg
-
Supported network protocols:
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
-
IPv4/IPv6; HTTP/HTTPS; RTSP/RTP/RTCP; TCP/UDP; DHCP; DNS; DDNS; UPnP; PPPoE; NTP; FTP; SMTP Client; 802.1x; SNMP; ONVIF Profile S/T compliant; ICMP; IGMP
-
Operating relative humidity (H-H):
-
0 - 90
-
Compatible memory cards:
Types of memory cards which can be used with this product.
-
MicroSD (TransFlash)
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-25 - 55
-
Form factor:
The shape or design of the product.
-
Bullet
-
Built-in microphone:
Microphone that is found inside the product.
-
Yes
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-25 - 55
-
Ethernet LAN:
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
-
Yes
-
Storage relative humidity (H-H):
-
0 - 90
-
Height:
The measurement of the product from head to foot or from base to top.
-
68.36 mm
-
Sensor type:
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
-
CMOS
-
Minimum illumination:
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
-
0 lx
-
Optical sensor size:
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
-
25.4 / 3
-
Width:
The measurement or extent of something from side to side.
-
179.1 mm
-
Depth:
The distance from the front to the back of something.
-
68.36 mm
-
Connectivity technology:
The technology that enables connectivity of the device, e.g. wired or wireless.
-
Wired
-
Maximum resolution:
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
-
1920 x 1080
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
White
-
Networking standards:
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
-
IEEE 802.3af
-
LED type:
-
IR
-
Tilt angle range:
-
0 - 90
-
Bluetooth:
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
-
No
-
Video compression formats:
-
H.265, H.264
-
Ethernet LAN (RJ-45) ports:
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
-
1
-
Angle of rotation:
-
360 °
-
Pan range:
-
0 - 360
-
Progressive scan:
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
-
Yes
-
Wi-Fi:
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
-
No
-
Card reader integrated:
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
-
Yes
-
Placement supported:
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
-
Indoor & outdoor
-
Frame rate:
-
30 fps
-
Reset button:
-
Yes
-
Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
1920 x 1080 (HD 1080)
-
Supported video modes:
The video modes that can be displayed by the device.
-
1080p
-
Maximum aperture number:
-
2
-
Night vision:
Night vision is technology which allows you to see in low light conditions.
-
Yes
-
Fixed focal length:
-
2.8 mm
-
Number of illumination LEDs:
-
4
-
Mounting type:
Type of mounting e.g. wall mounting.
-
Wall
-
Video motion detection:
-
Yes
-
Video formats supported:
The type of video formats that can be used by this device.
-
H.265, H.264
-
DC output voltage:
-
12
-
Ethernet interface type:
-
Fast Ethernet
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP66
-
Power source type:
What the power source is.
-
PoE, DC
-
Total megapixels:
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
-
2 MP
-
Back Light Compensation (BLC):
-
Yes
-
Built-in HDD:
The product has a hard drive built into it.
-
No
-
Night vision distance:
-
30
-
Video recording:
Recording moving visual images.
-
Yes
-
Wide Dynamic Range (WDR):
-
Yes
-
Number of cameras:
The quantity of cameras that product can support.
-
1
-
Video streaming:
-
Yes
-
Number of lenses:
The number of lenses installed in the device.
-
1
-
Power consumption (Power over Ethernet (PoE)):
-
4.4 W
-
Number of sensors:
-
1
-
Gain control type:
-
Auto
-
Highlight Compensation (HLC):
-
Yes
-
Cloud-managed:
-
Yes
-
Lens viewing angle, horizontal:
-
96
-
Lens viewing angle, vertical:
-
53
