header-product Dahua DHI-MLCDF7-E 7-inch LCD TFT Camera Monitor with 800 x 480 Resolution and Black Housing
58.49 €

Dahua DHI-MLCDF7-E 7-inch LCD TFT Camera Monitor with 800 x 480 Resolution and Black Housing

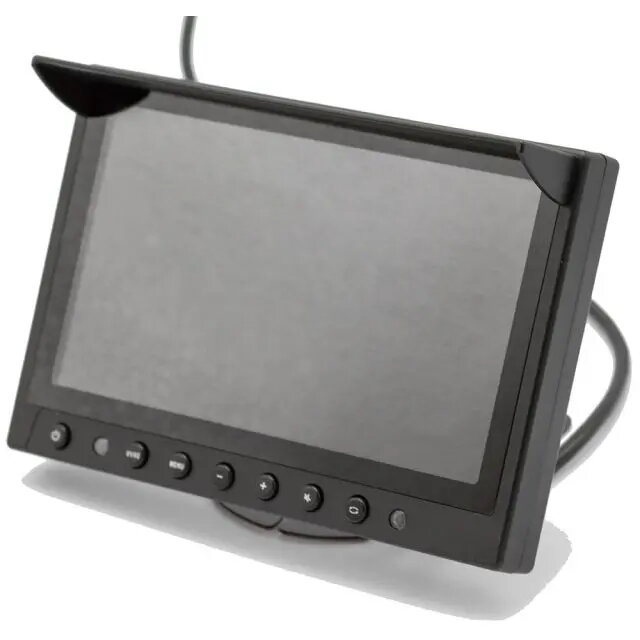

Dahua DHI-MLCDF7-E Camera Monitor Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Dahua DHI-MLCDF7-E 7-inch LCD TFT Camera Monitor with 800 x 480 Resolution and Black Housing

{{email}}
You keep track of price changes

Dahua DHI-MLCDF7-E 7-inch LCD TFT Camera Monitor with 800 x 480 Resolution and Black Housing

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Dahua DHI-MLCDF7-E camera monitor featuring a 7-inch LCD TFT display with an 800 x 480 pixel resolution. Designed with a black housing, it operates on a DC power supply supporting an input voltage of 6 to 36 V. This monitor is ideal for surveillance systems and mobile monitoring applications, offering reliable visual output and versatile power compatibility for various professional setups.
Available for order: 1 pcs.
Warranty: 2 Years
SKU: 11536018
Manufacturer: DAHUA
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
29.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
02.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
02.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Dahua DHI-MLCDF7-E is a compact 7-inch LCD TFT camera monitor designed to provide clear visual feedback for various monitoring and surveillance setups. Featuring a resolution of 800 x 480 pixels and an LED backlight, this monitor ensures dependable performance in professional environments. Housed in a durable black casing, the unit is engineered to support a wide DC input voltage range from 6 to 36 V, making it adaptable to different power sources. It also includes an M12 A-coding connector for secure and stable cabling connections in demanding settings.

Advantages

This monitor offers reliable visual output through its 7-inch LCD TFT display, which is well-suited for tight spaces where a larger screen is impractical. The wide operating input voltage of 6 to 36 V DC provides excellent installation flexibility across various mobile and stationary systems. The inclusion of an M12 A-coding connector ensures that cable connections remain secure even in environments subject to vibration or movement. Its neutral black housing allows it to blend easily into existing control panels or vehicle interiors without drawing unwanted attention.

Suitable for

  • Mobile surveillance systems in vehicles
  • Professional security camera monitoring setups
  • Compact control rooms and workstations
  • Transport and logistics fleet monitoring

When it may not be suitable

This device may not be suitable for applications requiring high-definition visuals, as its resolution is limited to 800 x 480 pixels. Additionally, it lacks a touchscreen interface, meaning it cannot be used for interactive system control where touch input is required.

Key specifications

  • 7-inch LCD TFT display diagonal
  • 800 x 480 pixel display resolution
  • LED backlight technology
  • DC power supply supporting 6 to 36 V input voltage
  • M12 A-coding connector
  • Black product housing
  • Dimensions: 198.4 mm width, 138.7 mm depth, 25.7 mm height

How to use

To set up the monitor, mount it securely in your desired location using compatible mounting hardware. Connect the appropriate power source within the 6 to 36 V DC range using the designated input. Attach your video signal source using the M12 A-coding connector to establish a stable feed. Once powered on, the display will automatically present the video input from the connected camera or surveillance system.

What to consider before purchase

  • Verify that the 800 x 480 resolution meets your image clarity requirements
  • Confirm compatibility with your power supply and voltage range of 6 to 36 V DC
  • Check that your video setup is compatible with the M12 A-coding connector
  • Ensure the physical dimensions fit your planned installation space

For optimal longevity and performance, install the monitor in a well-ventilated area protected from direct exposure to extreme moisture and direct sunlight.

Specifications

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.
7 "
Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
800 x 480
Display technology: The technology used in the display e.g. plasma, LED.
LCD/TFT
Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
No
Product colour: The colour e.g. red, blue, green, black, white.
Black
All features

Other features

Power supply type: The type of power supply which this product uses.
DC

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-10 - 60

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
25.7 mm
Depth: The distance from the front to the back of something.
138.7 mm
Width: The measurement or extent of something from side to side.
198.37 mm

Power

Input voltage: The voltage (V) which is required to power the product.
6 - 36

Design

Product colour: The colour e.g. red, blue, green, black, white.
Black

Display

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.
500:1
Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
No
Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
350 cd/m²
LED backlight: A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
Yes
Display technology: The technology used in the display e.g. plasma, LED.
LCD/TFT
Display diagonal: Size of the display for this product, measured diagonally, usually in inches.
7 "
Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
800 x 480
