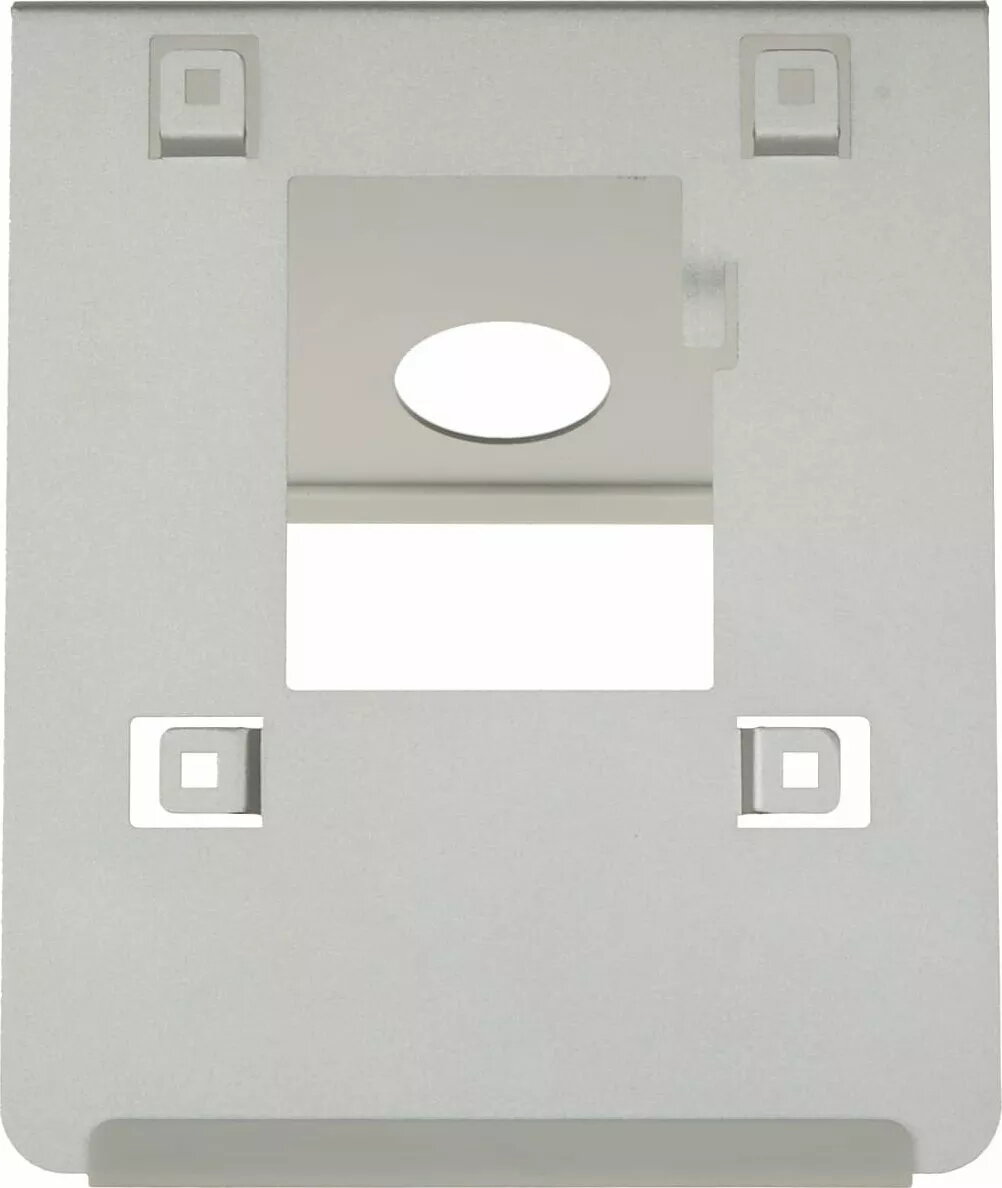

Bracket DAHUA VTM59D silver mounting bracket 139.8×115.6×103.3 mm

DAHUA VTM59D silver mounting bracket is a purpose-built accessory for Dahua intercom and access control units. With external dimensions of 139.8 × 115.6 × 103.3 mm and a mixed metal/plastic construction, the bracket provides a compact, stable housing for mounting an intercom panel or module to a wall surface. The design accommodates cable routing and alignment, offering a consistent mechanical interface between the device and installation surface while maintaining a neutral silver finish that blends with typical exterior and interior installations. The bracket is rated for operation in ambient temperatures between –10 °C and +55 °C.

Advantages

The VTM59D bracket simplifies installation by providing a pre-shaped mounting surface that aligns with Dahua intercom modules, reducing the need for custom cutting or adjustment. Its metal/plastic construction balances rigidity and weight, ensuring reliable mechanical support without excessive load on the mounting surface. The compact external dimensions make it suitable for installations where space is limited, while the silver colour offers a discreet visual appearance. Built for standard environmental conditions, the bracket helps protect cabling and device connections from direct strain during installation.

Suitable for

• Mounting Dahua intercom panels and access control modules on flat wall surfaces
• Retrofit installations where a compatible mounting interface is required
• Indoor and sheltered outdoor installations within the specified temperature range
• Installations requiring tidy cable routing and secure mechanical support

Key specifications

• External dimensions: 139.8 × 115.6 × 103.3 mm
• Construction: metal and plastic components for combined strength and reduced weight
• Colour: silver finish suitable for neutral aesthetic integration
• Operating temperature range: –10 °C to +55 °C
• Function: mounting bracket providing alignment, cable routing space and mechanical support for intercom/access units

How to use

Select a flat, stable section of wall and mark mounting points according to the bracket's footprint. Route device cables through the bracket's rear opening and position the intercom or access module onto the bracket so that alignment features engage. Secure the bracket to the wall using appropriate screws and wall anchors for the substrate, then fasten the device to the bracket following the manufacturer's mounting points. Verify that cables are not pinched and that the assembly is level and firmly seated before completing electrical connections and commissioning.

Usage recommendations

For long-term reliability, use appropriate corrosion-resistant fasteners for external or humid locations and ensure installations remain within the specified –10 °C to +55 °C operating range. When installing on uneven or hollow surfaces, select suitable wall anchors or a backing plate to maintain mechanical stability and prevent stress on the mounted device.
