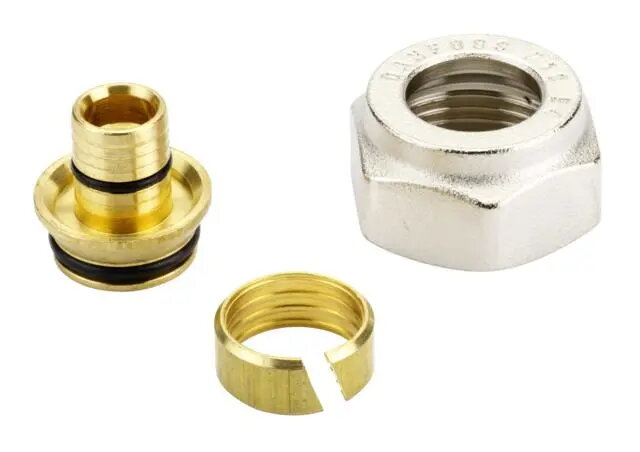

Danfoss 013G4156 Connection for Multilayer Pipe 16x3/4"

The Danfoss 013G4156 is a professional-grade connection fitting specifically engineered for integrating 16mm multilayer pipes into heating and plumbing systems with a 3/4 inch connection interface. This component is designed to provide a robust and reliable mechanical link, ensuring long-term integrity and optimal flow performance within residential or commercial pipe networks.

Advantages

This connection fitting stands out due to its precise manufacturing standards, which facilitate a secure and leak-proof seal essential for maintaining system pressure. The high-quality materials used in its construction offer excellent resistance to mechanical stress and thermal expansion, making it a dependable choice for demanding plumbing environments. Its design allows for straightforward installation, reducing labor time while ensuring a professional finish that meets rigorous industry requirements.

Suitable for

• Connecting 16mm multilayer pipes to heating manifolds
• Integration of pipework in radiator heating systems
• Plumbing installations in residential buildings
• Commercial heating network maintenance

When it may not be suitable

This fitting is specifically designed for 16mm multilayer pipes and will not be compatible with pipes of different diameters or materials, such as rigid copper or PEX-only tubing without the appropriate adapter. It is not intended for use in high-pressure industrial steam systems or applications involving aggressive chemical fluids that may degrade the sealing components.

Key specifications

• Pipe diameter compatibility: 16 mm
• Connection size: 3/4 inch
• Material type: High-durability metal alloy
• System compatibility: Multilayer pipe networks

How to use

To install the fitting, ensure the multilayer pipe is cut cleanly and squarely to avoid damaging the internal seals. Slide the nut and the compression ring onto the pipe end before inserting the support sleeve into the pipe opening. Once the pipe is fully seated into the fitting body, tighten the nut manually and then use a calibrated wrench to apply the final torque, ensuring a firm connection without over-tightening.

What to consider before purchase

• Verify the outer diameter of your existing multilayer pipe
• Check the thread type of your manifold or valve connection
• Ensure you have the necessary tools for proper tightening

Usage recommendations

Always inspect the pipe end for burrs or debris before assembly to prevent damage to the O-rings, and perform a pressure test on the system after installation to confirm a leak-free connection.
