Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner

Name: Datalogic Gryphon I GD4520 Handheld 518428
Brand: Datalogic
SKU: 12423144
Price: 226.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner, Wired, White

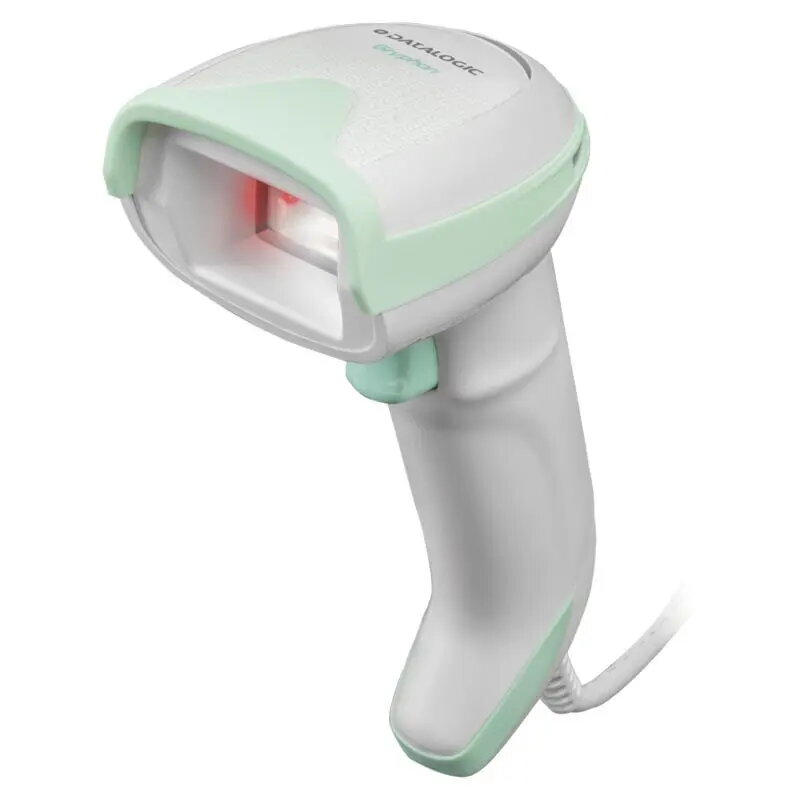

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner Photo 1

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner Photo 2

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner Photo 3

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner Photo 4

Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Datalogic Gryphon I GD4520 is a high-performance handheld 1D/2D barcode scanner designed for reliable data capture. It supports a wide range of symbologies, including QR Code, Data Matrix, and Aztec. Featuring wired USB connectivity and an IP52-rated shock-resistant housing, this white scanner is ideal for retail and commercial environments requiring efficient and accurate scanning performance.

Available for order: 48 pcs.

Warranty: 2 Years

SKU: 12423144

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 75.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 6.31 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic Gryphon I GD4520 is a high-performance handheld 1D/2D barcode scanner designed for reliable and efficient data capture in various professional environments. This corded device features an advanced megapixel sensor with warm-white illumination, ensuring superior reading performance even on colored labels. Its ergonomic design and Motionix motion-sensing technology allow for seamless transitions between handheld and presentation scanning modes, providing flexibility for different operational needs.

Advantages

This scanner offers exceptional versatility by supporting a wide array of 1D and 2D barcode symbologies, including QR codes and Data Matrix. The highly visible 4-dot aimer with a center cross ensures precise targeting, which significantly reduces accidental scans in environments with multiple barcodes. Furthermore, the device is built for durability with an IP52-rated, shock-resistant housing, making it a robust solution for daily commercial use.

Suitable for

Retail point-of-sale systems
Inventory management and tracking
Document processing in office environments
Commercial applications requiring high-speed data entry

When it may not be suitable

This model is a wired device and may not be suitable for applications requiring full mobility or freedom of movement away from the workstation. Additionally, while it is highly durable, it is not designed for extreme industrial conditions that require higher levels of liquid or dust protection beyond the IP52 rating.

Key specifications

Scanner type: 1D/2D imager
Connectivity: Wired USB
Supported 2D codes: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Resolution: 1280 x 800 pixels
Protection rating: IP52 (shock resistant)
Weight: 161 g
Dimensions: 68 mm x 109 mm

How to use

To begin using the Datalogic Gryphon I GD4520, connect the provided USB cable to your computer or host terminal. The device is plug-and-play, meaning it should be recognized automatically by most operating systems. Once connected, simply point the scanner at the barcode you wish to capture. The 4-dot aimer will help you align the scanner correctly. The Motionix technology will automatically detect if you are holding the device or using it in a stationary position, adjusting the scanning mode accordingly.

What to consider before purchase

Ensure your workstation has an available USB port for the wired connection.
Verify that your software supports the specific barcode symbologies you intend to scan.
Consider whether your workflow requires a wireless scanner or if a corded model is sufficient for your desk space.

Usage recommendations

For optimal performance, keep the scanner lens clean and free of dust. When scanning multiple barcodes in close proximity, use the center cross of the 4-dot aimer to ensure you are targeting the correct code.

Specifications

Scanner type:: 1D/2D
Connectivity technology:: Wired
Weight:: 0.161 kg
2D (matrix & stacked) barcodes supported:: QR Code, Micro QR Code, Aztec Code, Data Matrix, Han Xin, MaxiCode
Product colour:: White

All features

Scanning

Scanner type:: 1D/2D
Type:: Handheld bar code reader
2D (matrix & stacked) barcodes supported:: QR Code, Micro QR Code, Aztec Code, Data Matrix, Han Xin, MaxiCode
Wavelength:: 650 nm
Pitch reading angle:: -65 - 65
Tilt reading angle:: 0 - 360
Motion tolerance (cm/s):: 88.9
Light levels (direct sunlight):: 0 - 100000
Optical sensor resolution (W x H):: 1280 x 800

Ports & interfaces

Connectivity technology:: Wired
Standard interfaces:: USB

Power

Input voltage:: 5
Power consumption:: 300 mA
Power source type:: DC

Technical details

Compliance certificates:: RoHS

Performance

Product colour:: White
Certification:: IEC 60825 Class 2
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP52
Protection features:: Shock resistant
Image formats supported:: JPEG, BMP, TIFF
Built-in display:: No

Weight & dimensions

Weight:: 0.161 kg
Height:: 166 mm
Width:: 68 mm
Depth:: 109 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40

Logistics data

Harmonized System (HS) code:: 84716070

Packaging data

Cables included:: USB

Hide Show all

Instructions

mmo_61033718_1549650048_8733_19015.pdf

Description

Instructions

mmo_61033718_1549650048_8733_19015.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner cost, and is it available for purchase?

The price is 226.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 48 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 29.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Datalogic products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Datalogic service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: scanner type, connectivity technology, weight, 2d (matrix & stacked) barcodes supported, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Datalogic Gryphon I GD4520 Handheld 1D/2D Barcode Scanner?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
