Photoelectric Sensor Datalogic 95B010050

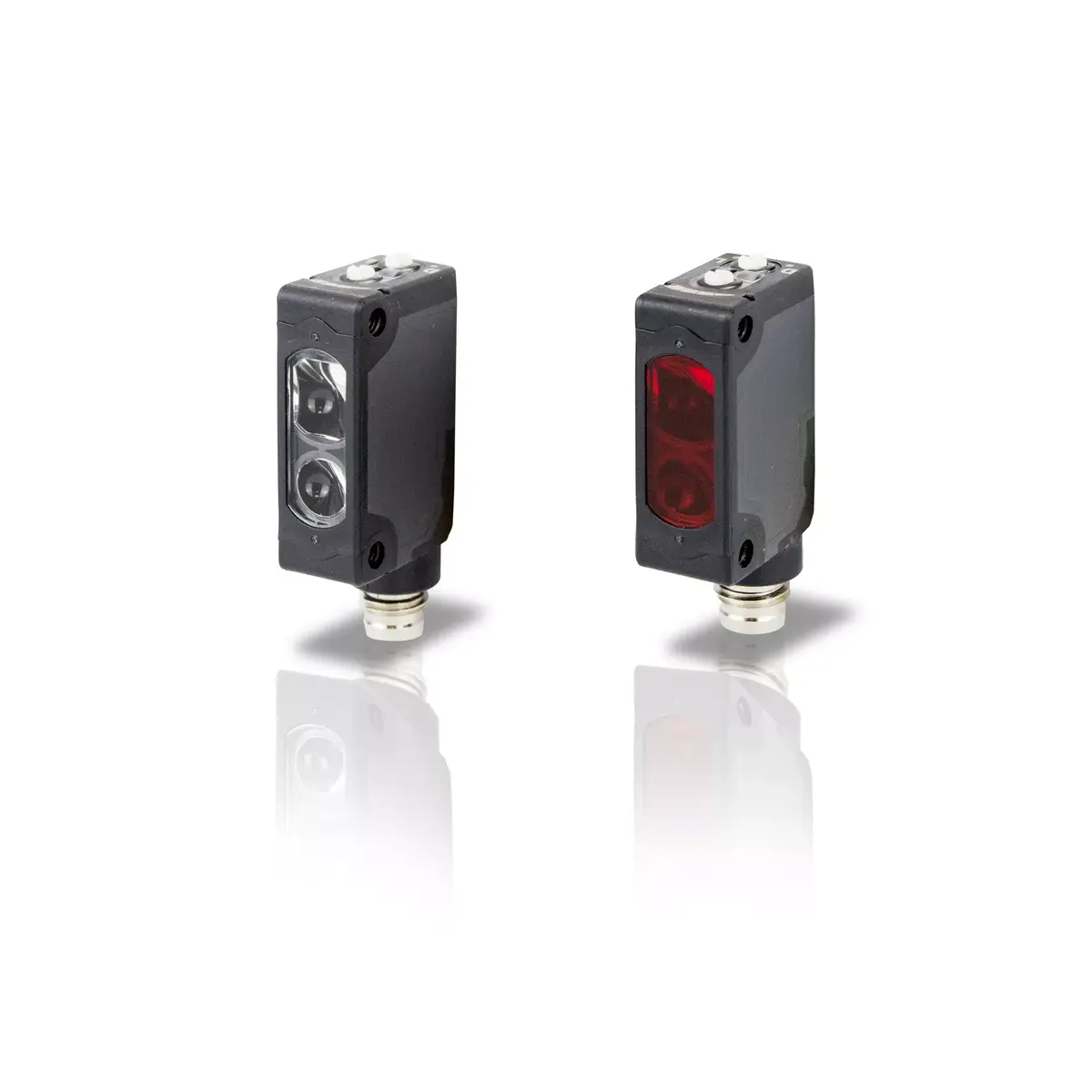

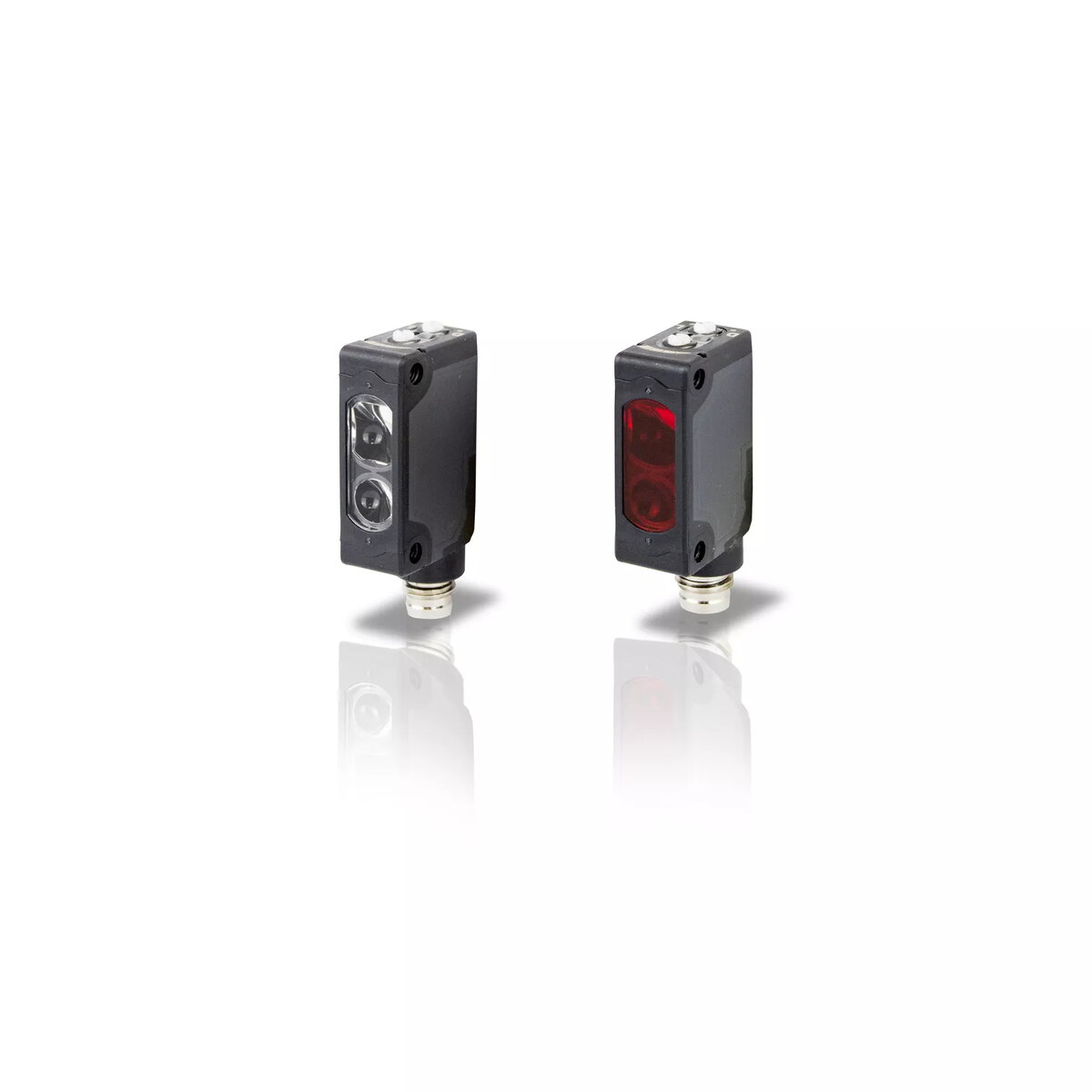

The Datalogic 95B010050 Photoelectric Sensor from the S3Z line is a miniature sensor designed to deliver high precision and reliable object detection in a compact, standardized housing. The sensor combines extreme space saving with strong performance to replace larger sensors and to fit into limited spaces. It is suitable for automation and control applications where accurate, repeatable detection is required.

Advantages

The miniature S3Z housing provides high performance in a small footprint, enabling installation where space is limited. The sensor offers precise detection capabilities and stable operation across varied environments. A version with Laser emission is available for fast and accurate detection of small objects. The compact design simplifies integration into existing systems.

Suitable for

• Industrial automation and assembly lines
• Small-object detection in tight spaces
• Conveyor systems and packaging machines
• Retrofit applications replacing larger sensors

Key specifications

• Brand: Datalogic
• Model / MPN: 95B010050
• Line: S3Z miniature housing
• Type: Photoelectric sensor (standard and laser emission options)
• EAN: 2050004556018

How to use

Install the sensor in the required position using the mounting points provided by the S3Z housing, ensuring the sensing axis is aligned with the target path. Connect power and output wiring according to the system’s control wiring diagram and the sensor’s electrical specifications. Adjust sensitivity or focus (if applicable) to achieve reliable detection; for laser versions, align the laser beam to the target and verify detection over the operating range. Test the sensor’s response with representative objects and fine-tune settings as needed before full production operation.

Usage recommendations

For reliable long-term operation, protect the sensor from direct mechanical damage and excessive dust or liquids; follow the manufacturer’s installation clearances and wiring guidelines. Use the laser-emission variant where small, fast, and precise object detection is required, and verify compliance with local laser safety regulations when applicable.
