header-product Built-in bar code reader Datalogic M3410-010210-00403
559.99 €

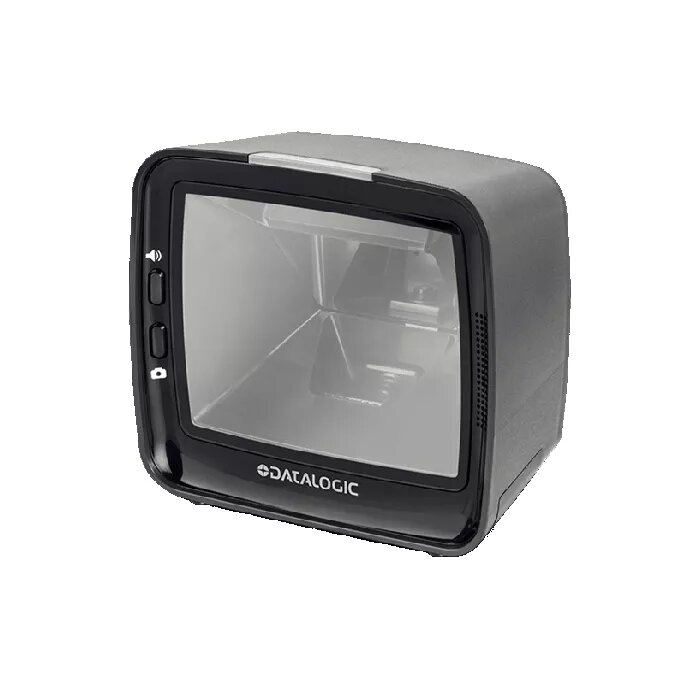

Built-in bar code reader Datalogic M3410-010210-00403

Built-in bar code reader Datalogic M3410-010210-00403 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Built-in bar code reader Datalogic M3410-010210-00403

{{email}}
You keep track of price changes

Built-in bar code reader Datalogic M3410-010210-00403

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic M3410-010210-00403 is a versatile built-in bar code reader supporting 1D and 2D barcodes, including GS1 DataBar. It features wired connectivity via RS-232 and USB, ensuring reliable data transmission. With an IP52 rating, it is protected against dust and water. The reader supports BMP and JPEG image formats and operates on AC, DC, or USB power sources. Weighing 600 g and measuring 137 mm in width and 152 mm in depth, it is compact yet powerful, making it ideal for various applications.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 4297766
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.22 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
29.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic M3410-010210-00403 is a built-in barcode reader from the Magellan 3410VSi family designed for retail and point-of-sale integration. This compact imaging scanner reads 1D and 2D codes, including GS1 DataBar and Digimarc, and offers wired interfaces (RS-232 and USB) for reliable data transfer. With a small footprint and durable construction, it supports BMP and JPEG image formats, multiple power options (AC, DC or USB) and an IP52 rating for basic protection against dust and water.

Advantages

The unit combines a large reading area and sweep-scanning capability with proven decoding technology to deliver consistent first-pass reads. Its solid-state electronics and optional USB-powered operation reduce installation complexity. The scanner includes near-infrared illumination and soft, uniform lighting for improved readability of challenging barcodes, audible and visual good-read confirmations, and ESD protection up to 25 kV for enhanced reliability in busy retail or manufacturing environments.

Suitable for

  • Retail point of sale (built-in counter installations)
  • Pharmacy and drug verification
  • Self-checkout and customer-facing scanning
  • Component or item verification in production

Key specifications

  • Model: Datalogic M3410-010210-00403 (Magellan 3410VSi series)
  • Supported symbologies: 1D and 2D barcodes, GS1 DataBar, Digimarc
  • Interfaces: RS-232, USB (auxiliary USB port for customer scanner)
  • Image formats: BMP, JPEG
  • Power: AC, DC or USB-powered (standard USB host cable may supply power)
  • Protection rating: IP52
  • Dimensions (approx.): width 137 mm, depth 152 mm; weight: 600 g
  • ESD protection: up to 25 kV

How to use

Install the reader into a counter cutout or mount it on a wall or inside a small self-checkout unit using the compact form factor. Connect the scanner to the host system via RS-232 or USB; if supported, the unit can be powered from the USB host cable to avoid an external power supply. Position items so barcodes pass through the scanner’s reading area or perform a sweep motion across the barcode. The device provides audible beeps, visible LEDs and Datalogic’s Green Spot on the barcode to confirm successful reads.

Usage recommendations

For best results, keep the scanner’s window clean and ensure items move steadily through the reading area. When integrating a customer-facing scanner on the auxiliary USB port, verify host software support for the additional device and test EAS integration so tags deactivate only after successful barcode reads.

Specifications

Scanner type:
1D/2D
Read rate (max):
30000000 reads/s
Connectivity technology:
Wired
Weight:
0.6 kg
Linear (1D) barcodes supported:
GS1 DataBar
2D (matrix & stacked) barcodes supported:
QR Code, PDF417, MicroPDF417, Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, GS1 Databar RSS14 Stacked
Product colour:
Grey
All features

Scanning

Scanner type:
1D/2D
Type:
Built-in bar code reader
Read rate (max):
30000000 reads/s
Linear (1D) barcodes supported:
GS1 DataBar
2D (matrix & stacked) barcodes supported:
QR Code, PDF417, MicroPDF417, Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, GS1 Databar RSS14 Stacked
Yaw reading angle:
0 - 75
Pitch reading angle:
0 - 65
Tilt reading angle:
0 - 360
Light levels (direct sunlight):
0 - 86100
Optical sensor resolution (W x H):
1280 x 800

Ports & interfaces

Connectivity technology:
Wired
Standard interfaces:
RS-232, USB

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
1.6 W
Input voltage:
100 - 240
Power consumption (standby):
0.95 W
Input frequency:
50-60
Power source type:
DC, USB, AC

Technical details

Sustainability compliance:
Yes
Compliance certificates:
RoHS

Performance

Product colour:
Grey
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP52
Compatible memory cards:
MicroSD (TransFlash)
Image formats supported:
JPEG, BMP
Print contrast:
25 %

Weight & dimensions

Weight:
0.6 kg
Height:
94 mm
Width:
137 mm
Depth:
152 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
10 - 40
