header-product Built-in bar code reader Datalogic Magellan 3450VSi
608.99 €

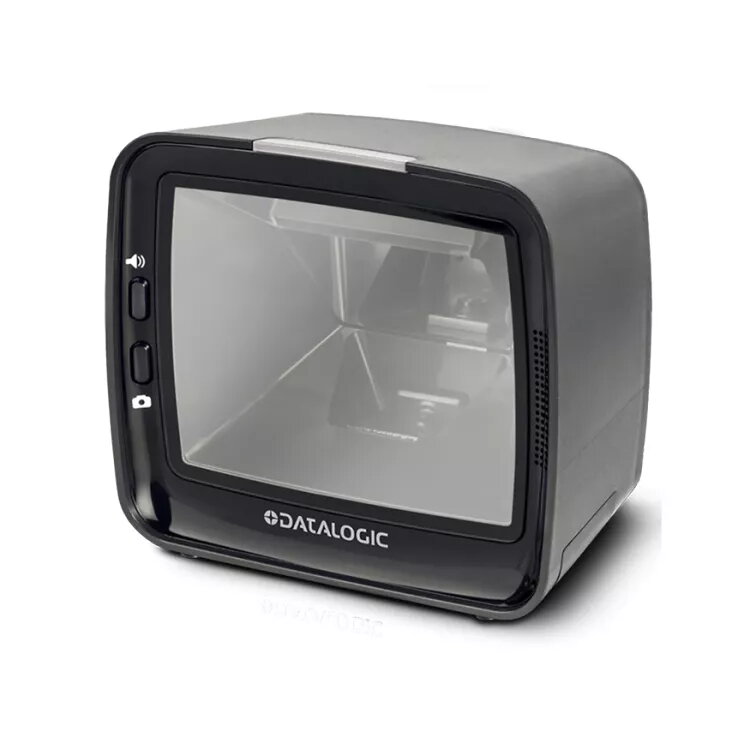

Built-in bar code reader Datalogic Magellan 3450VSi

Built-in bar code reader Datalogic Magellan 3450VSi Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Built-in bar code reader Datalogic Magellan 3450VSi

{{email}}
You keep track of price changes

Built-in bar code reader Datalogic Magellan 3450VSi

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic Magellan 3450VSi is a built-in bar code reader that supports 1D and 2D scanning with a laser sensor. It features wired connectivity with RS-232 interface and a 4.5 m cable. With an IP52 rating, it is protected against dust and water. The device operates on AC power, consuming 3.8 W during use and 2.6 W in standby. Weighing 600 g and measuring 152 mm in width and 137 mm in depth, it is compact and efficient for various applications.
Available at price 608.99 €: 1 pcs.
Total available for order: 14 pcs.
Warranty: 3 Years
SKU: 916851
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.65 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
15.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 21.19 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic Magellan 3450VSi built-in bar code reader is a compact imaging scanner designed for retail and point-of-sale integrations. It supports seamless 1D and 2D decoding with a laser sensor, offers solid-state electronics and image capture, and provides wired RS-232 connectivity with an approximately 4.5 m cable. With an IP52 rating, low power consumption (3.8 W active, 2.6 W standby), and a compact footprint (152 mm wide, 137 mm deep, 600 g), the Magellan 3450VSi is suitable for continuous use in busy checkout environments.

Advantages

The Magellan 3450VSi combines advanced imaging, illumination and processing to improve throughput, depth of field and read speed while reducing visible illumination intensity. It features a larger, intuitive scan zone that facilitates efficient sweep scanning and easy service access for software updates and configuration changes. The unit’s gentle, unobtrusive illumination helps maintain a comfortable work environment for operators. Built-in support for a wide range of 2D and stacked codes plus reliable wired RS-232 connectivity ensures stable operation in integrated POS systems.

Suitable for

  • Retail point-of-sale checkout lanes
  • Counter-mounted scanning in supermarkets and convenience stores
  • Integrated kiosks and service counters requiring 1D/2D scanning
  • Environments needing durable, low-maintenance fixed scanners

Key specifications

  • Scanner type: 1D/2D imaging scanner
  • Sensor type: Laser
  • Supported codes: PDF417, MicroPDF417, Aztec Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional and other common 1D/2D codes
  • Connectivity: Wired, RS-232 interface (approx. 4.5 m cable)
  • Ingress protection: IP52
  • Power consumption: 3.8 W (active), 2.6 W (standby)
  • Dimensions (W×D): 152 mm × 137 mm
  • Weight: 600 g
  • Product colour: Black, Grey

How to use

Install the Magellan 3450VSi into the checkout counter or kiosk cutout following the manufacturer’s mechanical and electrical integration guidelines. Connect the RS-232 cable to the host system and apply AC power. Position items so that barcodes pass through the scanner’s scan zone; the larger scan zone supports sweep scanning motions for rapid reads. Use the device’s service access to update firmware or change configuration parameters as required. For reliable reads, ensure the barcode surface is clean and oriented toward the scan window.

Usage recommendations

Place the scanner at a height and angle that allow natural sweep motions by operators; avoid direct bright light striking the scan window. Regularly clean the scan window and verify firmware is up to date to maintain optimal read performance.

Specifications

Scanner type:
1D/2D
Sensor type:
Laser
Working distance:
140 mm
Connectivity technology:
Wired
Weight:
0.6 kg
2D (matrix & stacked) barcodes supported:
PDF417, MicroPDF417, Aztec Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional
Product colour:
Black, Grey
All features

Scanning

Scanner type:
1D/2D
Sensor type:
Laser
Type:
Built-in bar code reader
Working distance:
140 mm
2D (matrix & stacked) barcodes supported:
PDF417, MicroPDF417, Aztec Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional
Yaw reading angle:
-75 - 75
Pitch reading angle:
-65 - 65
Tilt reading angle:
0 - 360
Light levels (direct sunlight):
0 - 86100

Ports & interfaces

Connectivity technology:
Wired
Cable length:
4.5 m
Standard interfaces:
RS-232

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
3.8 W
Input voltage:
100-240
Power consumption (standby):
2.6 W
Input frequency:
50-60
Power source type:
AC

Technical details

Compliance certificates:
RoHS

Performance

Product colour:
Black, Grey
Certification:
EN62471, IEC62471
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP52
Buzzer:
Yes

Weight & dimensions

Weight:
0.6 kg
Height:
94 mm
Width:
152 mm
Depth:
137 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 40

Logistics data

Harmonized System (HS) code:
84716070
