header-product Built-in bar code reader Datalogic Magellan 3510HSi
486.49 €

Built-in bar code reader Datalogic Magellan 3510HSi

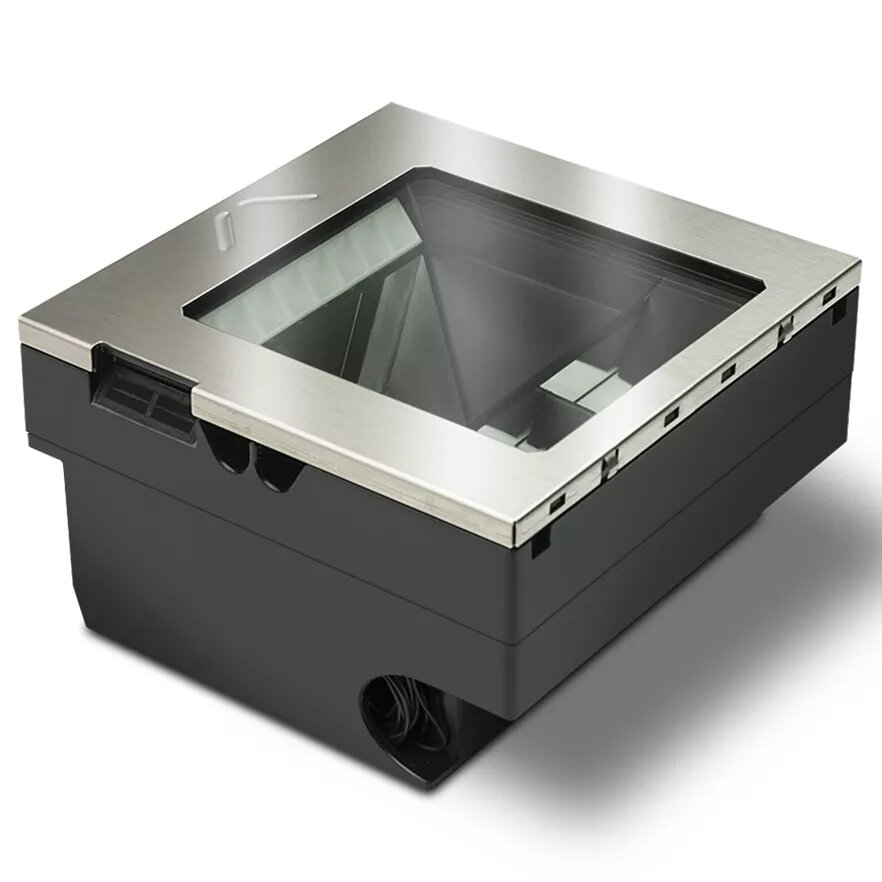

Built-in bar code reader Datalogic Magellan 3510HSi Photo 1
Built-in bar code reader Datalogic Magellan 3510HSi Photo 2
Built-in bar code reader Datalogic Magellan 3510HSi Photo 1
Built-in bar code reader Datalogic Magellan 3510HSi Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Built-in bar code reader Datalogic Magellan 3510HSi

{{email}}
You keep track of price changes

Built-in bar code reader Datalogic Magellan 3510HSi

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic Magellan 3510HSi is a built-in bar code reader supporting 1D/2D scanning. It features wired connectivity with RS-232 and USB interfaces, and supports GS1 DataBar. With an IP52 rating, it is protected against dust and water. The device operates on DC or USB power, consuming 2.1 W during use and 1.25 W in standby. Weighing 980 g and measuring 152 mm in width and depth, it is compact and efficient for various applications.
Available at price 486.49 €: 1 pcs.
Total available for order: 121 pcs.
Warranty: 3 Years
SKU: 4212876
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
15.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic Magellan 3510HSi built-in bar code reader is a compact in-counter imager designed for point-of-sale and retail environments. It supports both 1D and 2D bar codes, including GS1 DataBar, and offers wired connectivity via RS-232 and USB. With an IP52 rating it provides protection against limited dust ingress and dripping water. The scanner operates from DC or from a 5 V USB supply, consuming approximately 2.1 W during active use and 1.25 W in standby; its compact footprint and 980 g weight simplify integration into checkout counters and kiosks.

Advantages

The Magellan 3510HSi combines a large field of view and high-performance imaging to read truncated, poorly printed or otherwise difficult codes reliably. Its electronics platform allows powering from a single 5 V USB connection for easier installation and reduced cabling. The unit supports both high-speed sweep scanning and hands-free presentation modes to accommodate different cashier workflows. Remote management support and included value-added features make it suitable for managed retail environments and centralized device administration.

Suitable for

  • Point-of-sale checkouts in grocery and retail stores
  • Self-service kiosks integrated with in-counter scanning
  • Environments requiring fast scanning of mobile phone coupons and paper tickets
  • Retail systems needing remote management and centralized configuration

Key specifications

  • Scan capability: 1D and 2D bar code imaging, including GS1 DataBar
  • Interfaces: RS-232 and USB wired connectivity
  • Power: DC or USB power with ~2.1 W active consumption and ~1.25 W standby
  • Ingress protection: IP52 (protection against limited dust and dripping water)
  • Weight and size: approximately 980 g; footprint about 152 mm (width) x 152 mm (depth)
  • Scanning modes: high-speed sweep scanning and hands-free presentation scanning
  • Management: support for remote management via OPOS/JavaPOS and compatible enterprise tools

How to use

Install the Magellan 3510HSi in a compatible counter cutout and connect it to the POS system using the RS-232 or USB interface. If using USB power, ensure the host supplies 5 V to meet the device power requirements. Place items or mobile screens over the scanner window and use either sweep motion or present items for hands-free reads. For best results position bar codes within the scanner's field of view and orient the code so the imager can capture the full symbol area. Configure interface settings and enabling of value-added features through your POS software or the scanner’s configuration tools.

Usage recommendations

Maintain a clean optical window and avoid direct spray cleaning; wipe with a soft, lint-free cloth and a mild, non-abrasive cleaner if necessary. Use the supported interfaces and follow POS vendor guidelines to enable remote management and firmware updates. For environments with frequent mobile wallet scanning, consider enabling customer service scanner features to allow parallel scanning while the cashier continues POS operations.

Specifications

Scanner type:
1D/2D
Connectivity technology:
Wired
Weight:
0.98 kg
Linear (1D) barcodes supported:
GS1 DataBar
2D (matrix & stacked) barcodes supported:
Aztec Code, Data Matrix, QR Code, WaterCode
Product colour:
Black
All features

Scanning

Scanner type:
1D/2D
Type:
Built-in bar code reader
Linear (1D) barcodes supported:
GS1 DataBar
2D (matrix & stacked) barcodes supported:
Aztec Code, Data Matrix, QR Code, WaterCode
Yaw reading angle:
-75 - 75
Pitch reading angle:
0 - 65
Tilt reading angle:
0 - 360
Optical sensor resolution (W x H):
1280 x 800

Ports & interfaces

Connectivity technology:
Wired
USB 2.0 ports quantity:
2
Standard interfaces:
USB, RS-232

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
2.1 W
Input voltage:
100 - 240
Power consumption (standby):
1.25 W
Input frequency:
50 - 60
Power source type:
DC, USB

Technical details

Compliance certificates:
RoHS

Performance

Product colour:
Black
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP52
Compatible memory cards:
MicroSD (TransFlash)
Image formats supported:
JPEG, BMP
Buzzer:
Yes
Ambient lighting:
Yes
Print contrast:
25 %

Weight & dimensions

Weight:
0.98 kg
Height:
87 mm
Width:
152 mm
Depth:
152 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
10 - 40
Storage relative humidity (H-H):
5 - 95

Logistics data

Harmonized System (HS) code:
84716070

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH144 1 10.07.2026 Best delivery 486.49 €
WH109 120 24.07.2026 548.99 €
Available only for legal entities
486.49 €
Stock: 1
Delivery Date: 10.07.2026 Best delivery
Warehouse: WH144
548.99 €
Stock: 120
Delivery Date: 24.07.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the Built-in bar code reader Datalogic Magellan 3510HSi cost, and is it available for purchase?

The price is 486.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 121 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 10.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Datalogic products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Datalogic service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: scanner type, connectivity technology, weight, linear (1d) barcodes supported, 2d (matrix & stacked) barcodes supported, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Built-in bar code reader Datalogic Magellan 3510HSi?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
