Type:
Characteristics of the device.
-

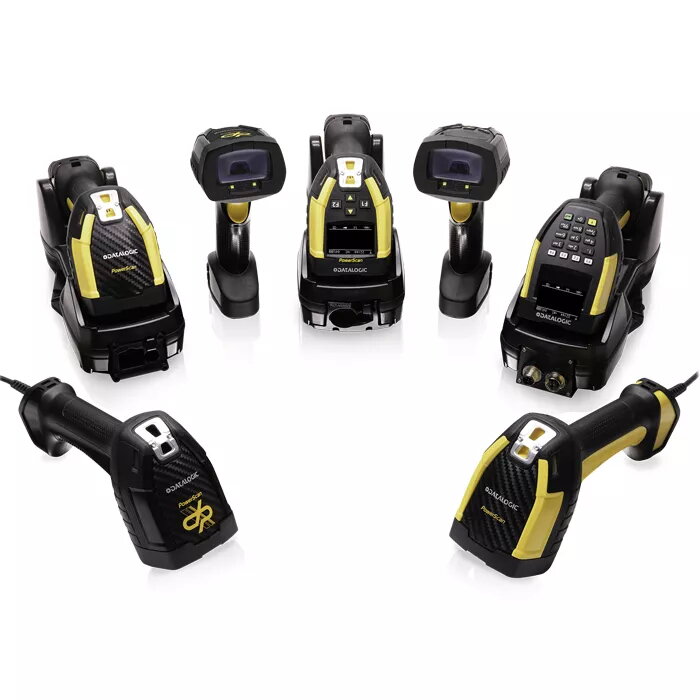

Handheld bar code reader
-
Battery technology:
The type of battery in the device, e.g. nickel–cadmium (NiCd).
-
Lithium-Ion (Li-Ion)
-
Scanner type:
Indicates the type of scanner this product is.
-
1D/2D
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-40 - 70
-
Battery capacity:
A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.
-
3350 mAh
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-20 - 50
-
Bluetooth version:
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
-
5.0
-
Storage relative humidity (H-H):
-
0 - 95
-
Height:
The measurement of the product from head to foot or from base to top.
-
198 mm
-
Wireless range:
-
100 m
-
Width:
The measurement or extent of something from side to side.
-
79 mm
-
Depth:
The distance from the front to the back of something.
-
140 mm
-
Connectivity technology:
The technology that enables connectivity of the device, e.g. wired or wireless.
-
Wireless
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black, Yellow
-
Operating frequency:
The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz.
-
2400
-
Charging time:
The amount of time needed to charge the product.
-
3.2 h
-
Number of reads per charge:
-
80000
-
Yaw reading angle:
-
-52 - 52
-
Pitch reading angle:
-
-52 - 52
-
Tilt reading angle:
-
0 - 360
-
Light levels (direct sunlight):
-
0 - 100000
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP65, IP67
-
Standard interfaces:
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
-
Bluetooth, RS-232, USB
-
Power source type:
What the power source is.
-
Battery
-
Linear (1D) barcodes supported:
The product can read linear (1D) barcordes.
-
UPC-A, Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-E
-
2D (matrix & stacked) barcodes supported:
The product can read matrix (2D) barcordes.
-
PDF417, MicroPDF417, Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code
-
Optical sensor resolution (W x H):
-
1280 x 800
