header-product Handheld barcode reader Datalogic PD9630-DPX 1D/2D wired, RS-232/USB, IP65/IP67, 5–30 V, 316 g
1,428.99 €

Handheld barcode reader Datalogic PD9630-DPX 1D/2D wired, RS-232/USB, IP65/IP67, 5–30 V, 316 g

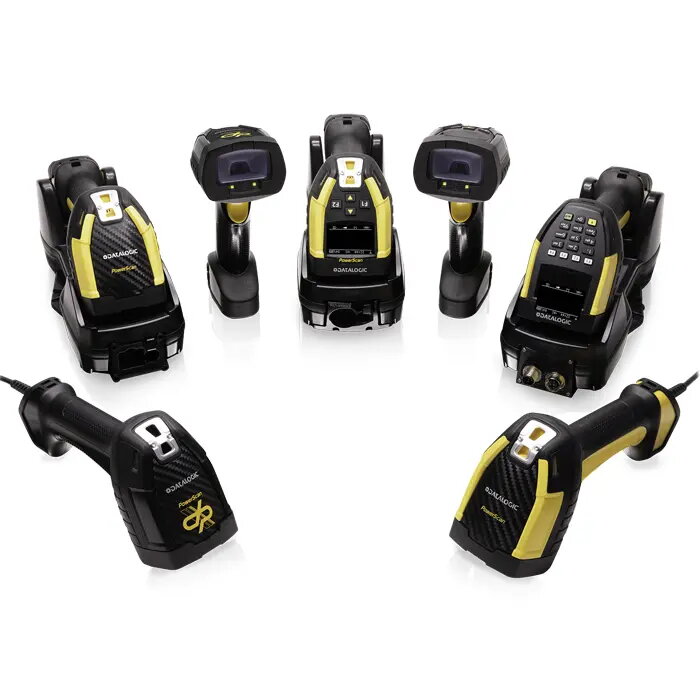

Datalogic PD9630-DPX handheld 1D/2D barcode reader Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld barcode reader Datalogic PD9630-DPX 1D/2D wired, RS-232/USB, IP65/IP67, 5–30 V, 316 g

{{email}}
You keep track of price changes

Handheld barcode reader Datalogic PD9630-DPX 1D/2D wired, RS-232/USB, IP65/IP67, 5–30 V, 316 g

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Datalogic PD9630-DPX is a handheld 1D/2D barcode scanner designed for reliable wired scanning of linear and matrix codes. It supports common 1D formats (Code 128, Code 39, GS1 DataBar, JAN, UPC-A, UPC-E) and PDF417, connects via RS-232 or USB, and runs on 5–30 V DC. Rugged IP65/IP67 protection, compact size (79 × 140 mm) and 316 g weight make it suitable for retail, logistics and industrial environments.
Available at price 1,428.99 €: 5 pcs.
Total available for order: 10 pcs.
Warranty: 3 Years
SKU: 11678618
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.46 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 49.73 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Datalogic PD9630-DPX is a wired handheld 1D/2D barcode scanner designed for reliable scanning of linear and matrix codes in industrial and commercial environments. The device offers rugged protection with IP65/IP67 ratings, supports common 1D and 2D symbologies, and connects via RS-232 or USB. It operates from a 5–30 V DC power source and is built for continuous use where durability and accurate data capture are required.

Advantages

The PD9630-DPX combines industrial-grade ruggedness with flexible wired connectivity, enabling stable interfacing to PCs, industrial PCs or PLCs. Its enclosure withstands dust, water and repeated drops, while the scanner delivers fast reading performance for both label-based and direct part mark codes. The scanner’s tilt reading range and high-resolution sensor support consistent reads across a variety of code types and conditions.

Suitable for

  • Manufacturing traceability and work-in-progress tracking
  • Intralogistics and warehouse scanning at fixed or handheld stations
  • Automotive and aerospace component marking (DPM and label codes)
  • Retail point-of-sale and back-office barcode capture

Key specifications

  • Scan type: 1D and 2D barcode imaging
  • Supported symbologies: Code 128, Code 39, GS1 DataBar, JAN, UPC-A, UPC-E, PDF417, Data Matrix, Aztec, MaxiCode, Micro QR Code and related matrix formats
  • Sensor resolution / field: 1280 × 800 pixels
  • Tilt reading angle: 0–360°
  • Connectivity (wired): RS-232 and USB interfaces
  • Power supply: DC input, 5–30 V
  • Ingress protection: IP65 and IP67
  • Weight: approximately 316 g

How to use

Connect the PD9630-DPX to your host device using an RS-232 or USB cable and supply power within the 5–30 V DC range. Position the scanner so the aiming zone covers the barcode and pull the trigger to capture the code; the device provides visual confirmation of successful reads. For DPM or damaged labels, align the scanner at a suitable distance and angle within the tilt range to obtain the best image. Configure interface parameters on the host system as required for serial or USB communication.

Usage recommendations

To maintain reliable operation, keep the scan window clean and avoid impacts beyond the rated drop resistance. Use the wired RS-232 or USB connections provided for stable data transfer in industrial settings, and ensure power supply is within the specified 5–30 V DC range. For traceability applications, verify symbology settings and perform periodic checks on scanner health and cabling integrity.

Specifications

Scanner type:
1D/2D
Connectivity technology:
Wired
Weight:
0.3162 kg
Linear (1D) barcodes supported:
UPC-A, UPC-E, PDF417, JAN, GS1 DataBar, Code 39, Code 128
2D (matrix & stacked) barcodes supported:
MicroPDF417, PDF417, Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code
Product colour:
Black, Yellow
All features

Scanning

Scanner type:
1D/2D
Type:
Handheld bar code reader
Linear (1D) barcodes supported:
UPC-A, UPC-E, PDF417, JAN, GS1 DataBar, Code 39, Code 128
2D (matrix & stacked) barcodes supported:
MicroPDF417, PDF417, Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code
Wavelength:
650 nm
Yaw reading angle:
-52 - 52
Pitch reading angle:
-52 - 52
Tilt reading angle:
0 - 360
Light levels (direct sunlight):
0 - 100000
Optical sensor resolution (W x H):
1280 x 800

Ports & interfaces

Connectivity technology:
Wired
Standard interfaces:
RS-232, USB

Power

Input voltage:
5 - 30
Power source type:
DC

Performance

Product colour:
Black, Yellow
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP65, IP67

Weight & dimensions

Weight:
0.3162 kg
Height:
190 mm
Width:
79 mm
Depth:
140 mm

Operational conditions

Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
-20 - 50
Storage relative humidity (H-H):
0 - 95
