header-product Handheld barcode reader Datalogic PD9630-HPK1 1D/2D USB Black Yellow
415.99 €

Handheld barcode reader Datalogic PD9630-HPK1 1D/2D USB Black Yellow

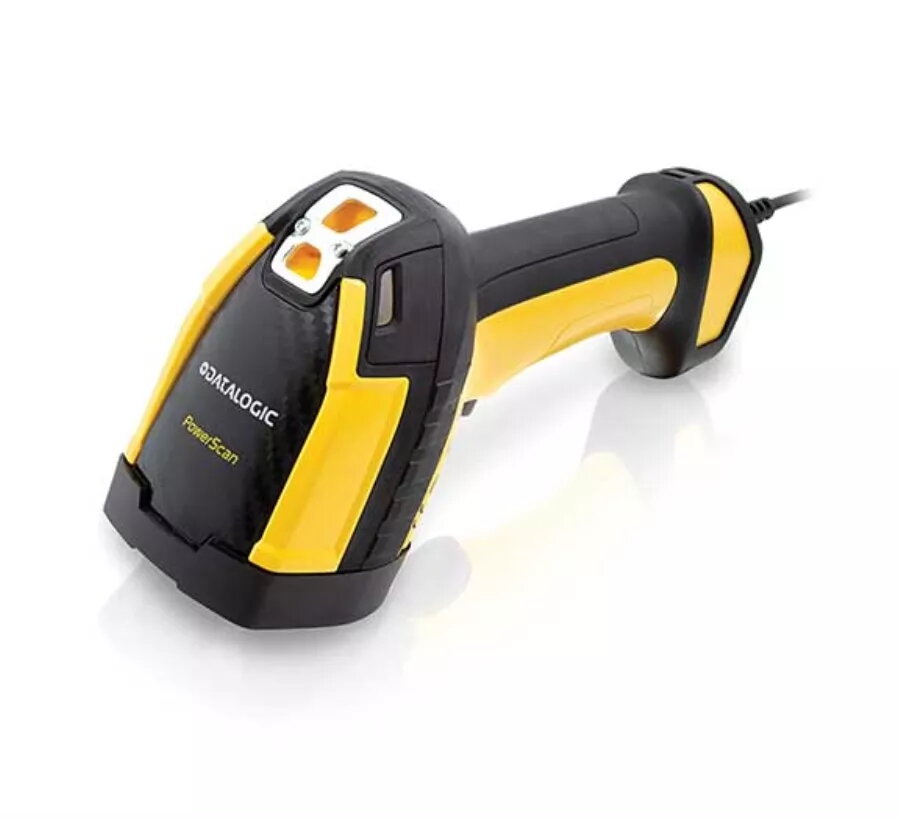

Handheld barcode reader Datalogic PD9630-HPK1 Photo 1

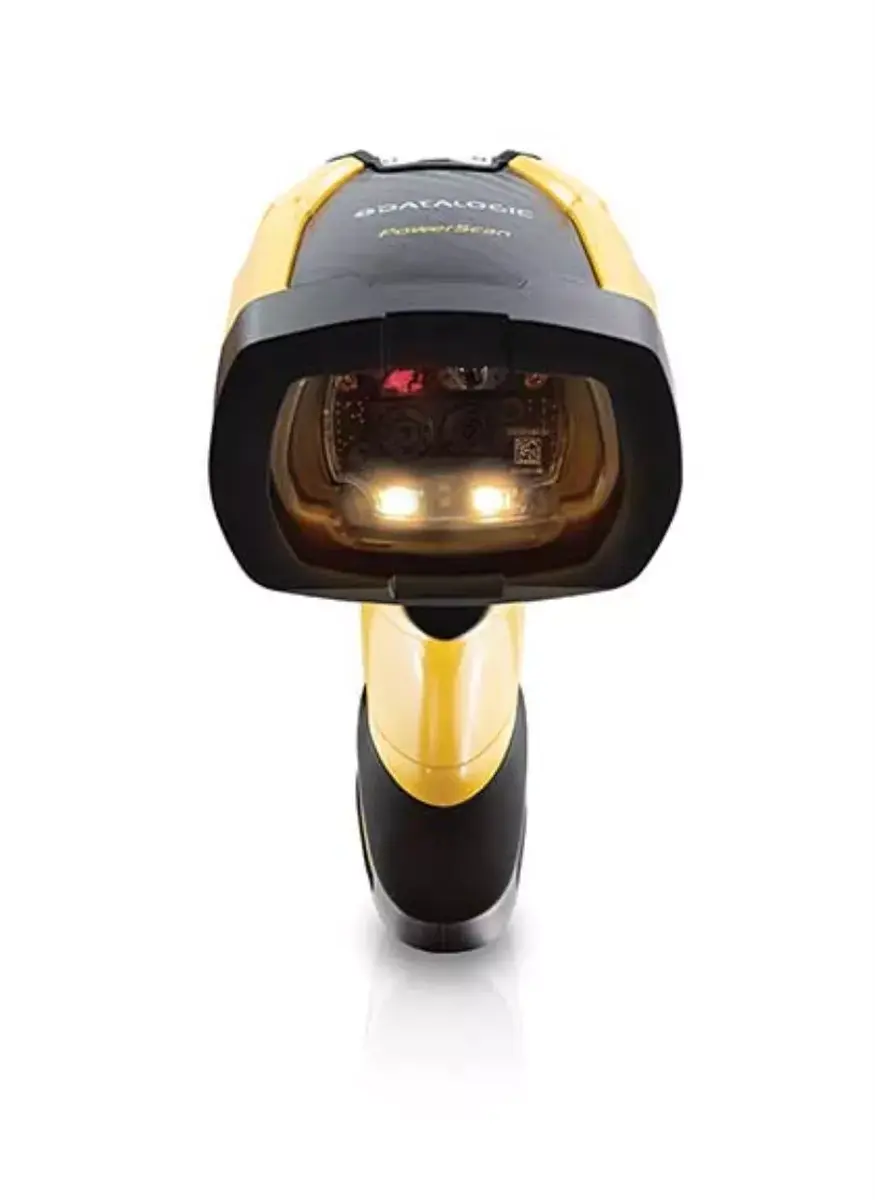

Handheld barcode reader Datalogic PD9630-HPK1 Photo 2

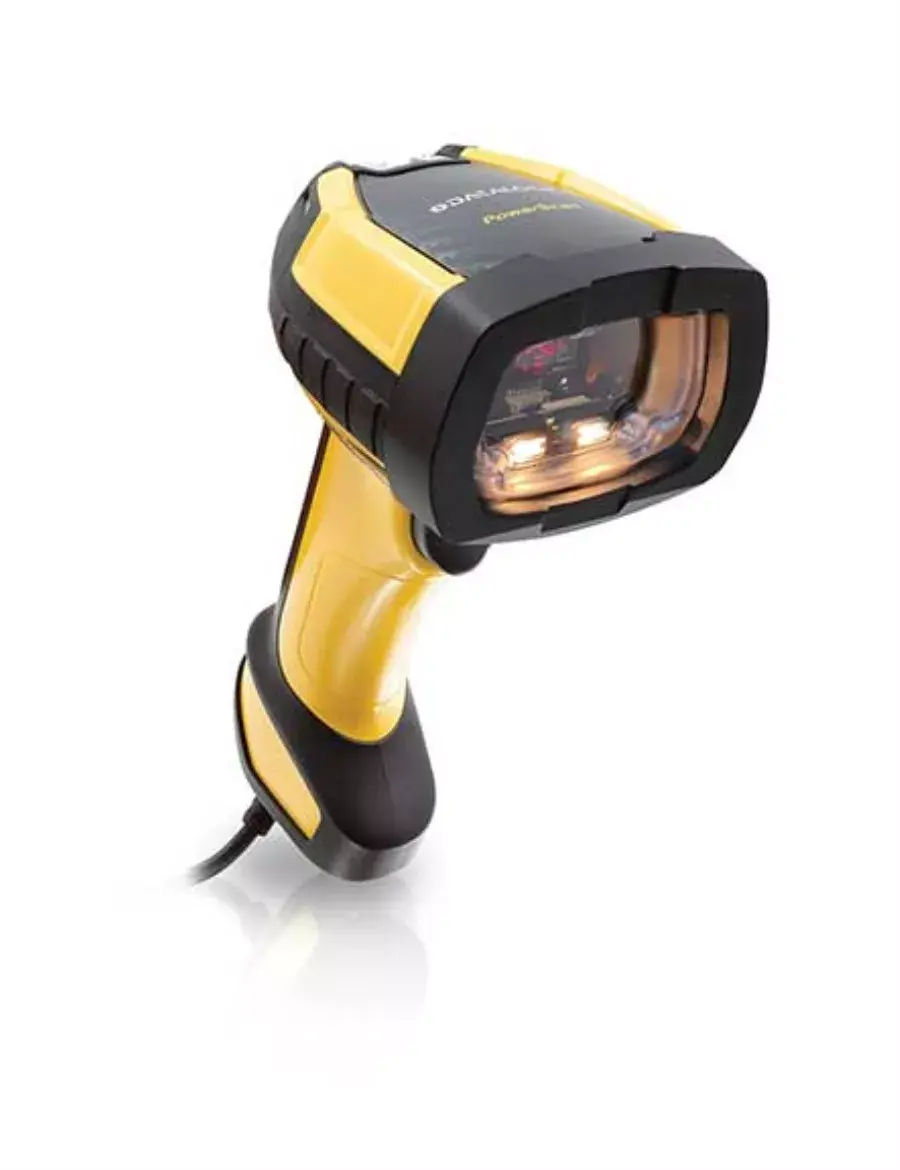

Handheld barcode reader Datalogic PD9630-HPK1 Photo 3

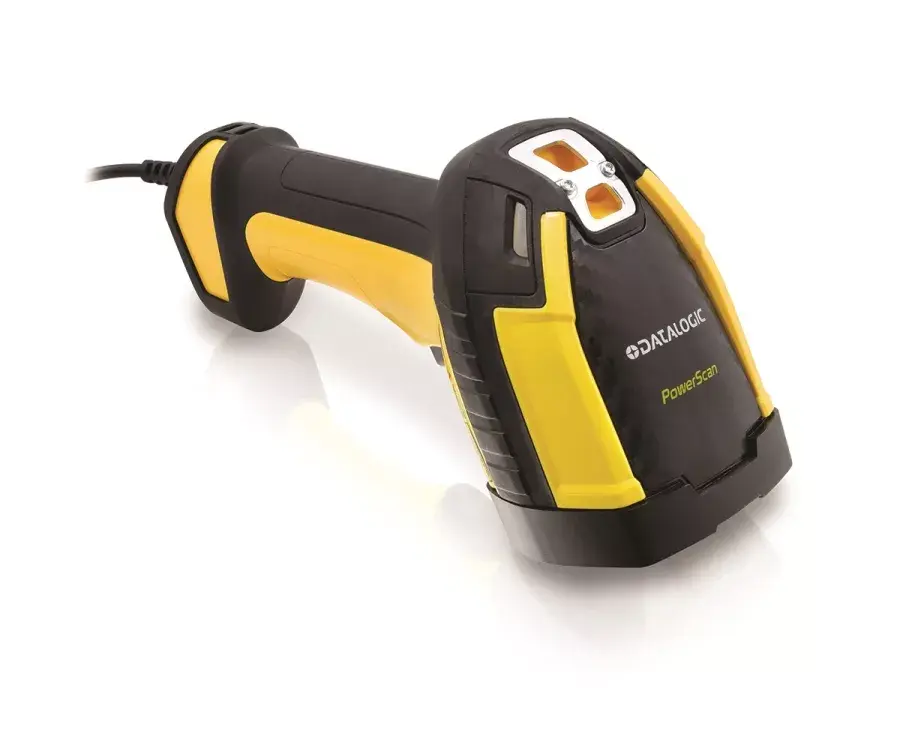

Handheld barcode reader Datalogic PD9630-HPK1 Photo 4
Handheld barcode reader Datalogic PD9630-HPK1 Photo 1
Handheld barcode reader Datalogic PD9630-HPK1 Photo 2
Handheld barcode reader Datalogic PD9630-HPK1 Photo 3
Handheld barcode reader Datalogic PD9630-HPK1 Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld barcode reader Datalogic PD9630-HPK1 1D/2D USB Black Yellow

{{email}}
You keep track of price changes

Handheld barcode reader Datalogic PD9630-HPK1 1D/2D USB Black Yellow

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic PD9630-HPK1 is a handheld barcode reader that supports 1D and 2D barcodes. It features USB connectivity, IP65/IP67 protection, and is designed to withstand dirt, drops, and water exposure. Weighing 318g, it is compact and durable, making it ideal for various scanning applications.
Available at price 415.99 €: 12 pcs.
Total available for order: 26 pcs.
Warranty: 2 Years
SKU: 4768488
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
01.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.60 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic PowerScan PD9630-HPK1 is a handheld 1D/2D barcode reader supplied as a USB kit (includes scanner and USB cable CAB-553). Designed for industrial use, the PD9630 series combines an ultra-rugged housing with balanced ergonomics to reduce operator fatigue. This model supports wired USB connectivity, offers IP65/IP67 protection against dust and water, and weighs 0.318 kg, making it compact and durable for demanding environments.

Advantages

The PD9630-HP provides a robust, impact-resistant design and an ergonomic shape with balanced weight to minimise wrist strain during repetitive scanning. Multiple optical options address different needs: Standard Range for typical reading distances, High Performance for decoding high-density codes and extended depth of field, and Document Capture for wide-angle and document imaging. Operator feedback is enhanced by Datalogic’s 3 Green Lights (3GL™), a loud beeper, vibration and the Green Spot aimed directly on the code. Multi-interface support includes RS-232 and USB, with optional Ethernet for industrial applications. Motionix™ motion-sensing technology automatically switches between handheld and presentation modes.

Suitable for

  • Industrial and warehouse barcode scanning
  • Point-of-service and logistics operations requiring 1D and 2D scanning
  • Document capture and wide-angle code reading (with Document Capture optic)

Key specifications

  • Scanner type: 1D/2D area imager
  • Connectivity: Wired USB (kit includes CAB-553); interfaces include RS-232, USB; optional Ethernet
  • Working distance: up to 200 mm (depends on optics and code density)
  • Weight: 0.318 kg
  • Ingress protection: IP65/IP67
  • Supported 1D codes: China Post, UPC-E, UPC-A, GS1 DataBar, EAN-8, EAN-13, EAN-5, EAN-2, EAN-128, Code 128
  • Supported 2D codes: QR Code, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417
  • Colours: Black and Yellow

How to use

Connect the scanner to a host device using the supplied USB cable (CAB-553) or another supported interface. Configure the scanner to the appropriate interface and decoding settings for your application using the Datalogic configuration guides or provided software. Aim the imager at the barcode area and pull the trigger or allow Motionix™ to switch to presentation mode; verify the green spot and audible/physical feedback to confirm a successful read. For document capture or wide-angle codes, use the Document Capture optic variant and position the reader at the recommended distance for full-frame capture.

Usage recommendations

Use the High Performance optic for small or high-density 2D codes and choose the Document Capture optic when scanning wide labels or pages. Regularly clean the imager window and verify firmware/interface settings after network or environment changes to maintain optimal read rates.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.318 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
Power source type: What the power source is.
USB
Product colour: The colour e.g. red, blue, green, black, white.
Yellow, Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
EAN 5, China Post, Code 128, EAN 128, EAN 2, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
All features

Logistics data

Harmonized System (HS) code:
84716070

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, REACH

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50

Packaging data

Cables included:
USB

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.318 kg
Height: The measurement of the product from head to foot or from base to top.
190 mm
Depth: The distance from the front to the back of something.
140 mm
Width: The measurement or extent of something from side to side.
79 mm

Power

Power consumption:
280 mA
Input voltage: The voltage (V) which is required to power the product.
5 - 30
Power source type: What the power source is.
USB

Performance

Vibration function:
Yes
Print contrast:
15 %
Buzzer:
Yes
LED indicators:
Y
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Water resistant, Electrostatic Discharge (ESD) protection, Dust resistant, Drop proof, Dirt resistant
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP65, IP67
Product colour: The colour e.g. red, blue, green, black, white.
Yellow, Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Yaw reading angle:
-52 - 52
Pitch reading angle:
-52 - 52
Tilt reading angle:
0 - 360
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
630 nm
Light levels (direct sunlight):
0 - 100000
Working distance:
200 mm
Optical sensor resolution (W x H):
1280 x 800
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
EAN 5, China Post, Code 128, EAN 128, EAN 2, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
