header-product Handheld barcode reader Datalogic PD9630-SRK2 1D/2D Wired Black Yellow
359.49 €

Handheld barcode reader Datalogic PD9630-SRK2 1D/2D Wired Black Yellow

Handheld barcode reader Datalogic PD9630-SRK2 Photo 1

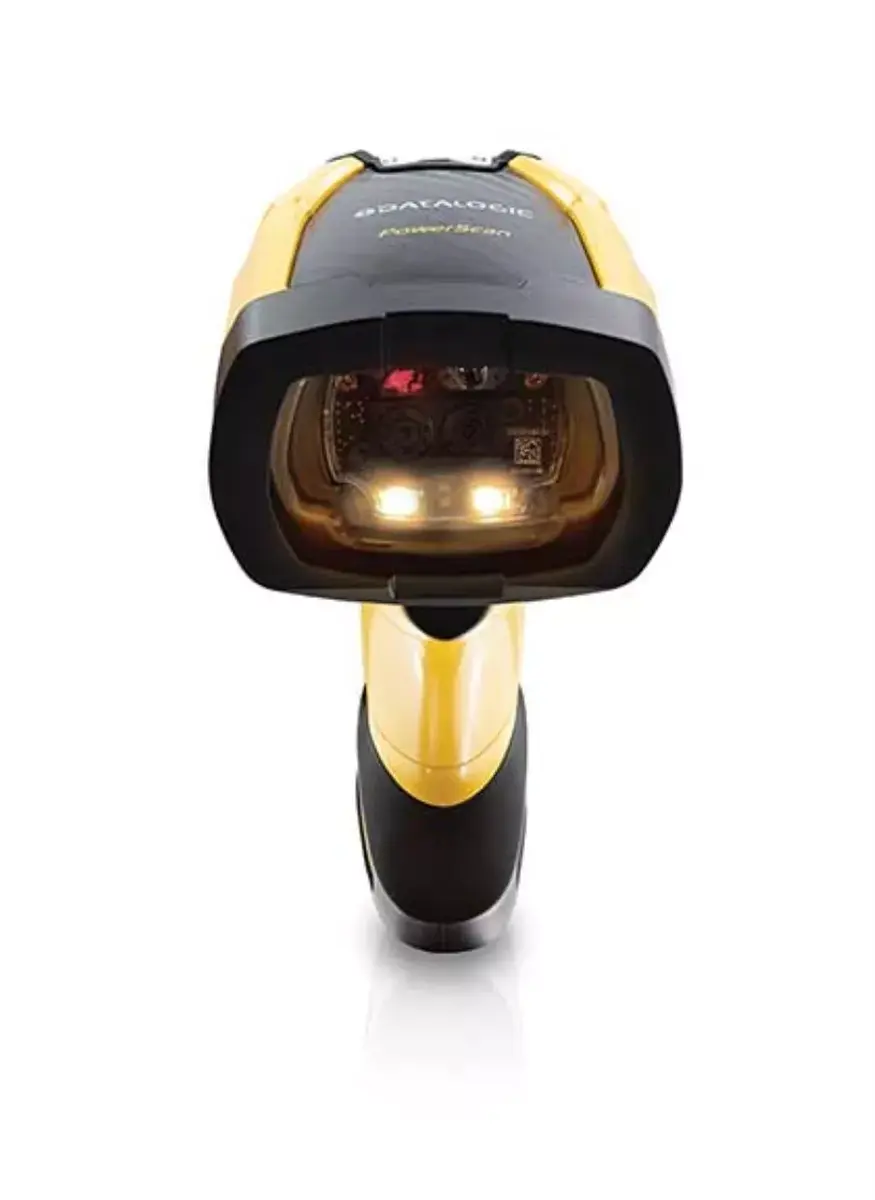

Handheld barcode reader Datalogic PD9630-SRK2 Photo 2

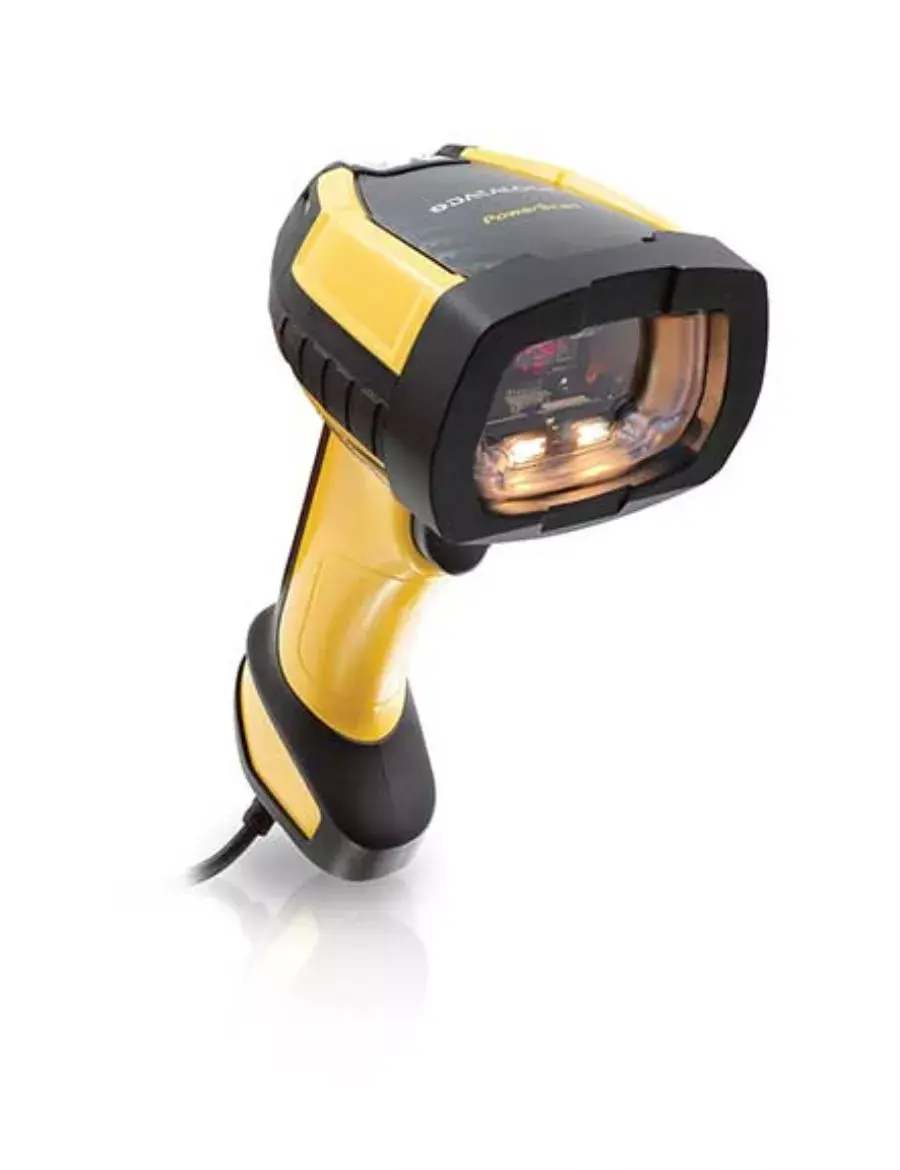

Handheld barcode reader Datalogic PD9630-SRK2 Photo 3

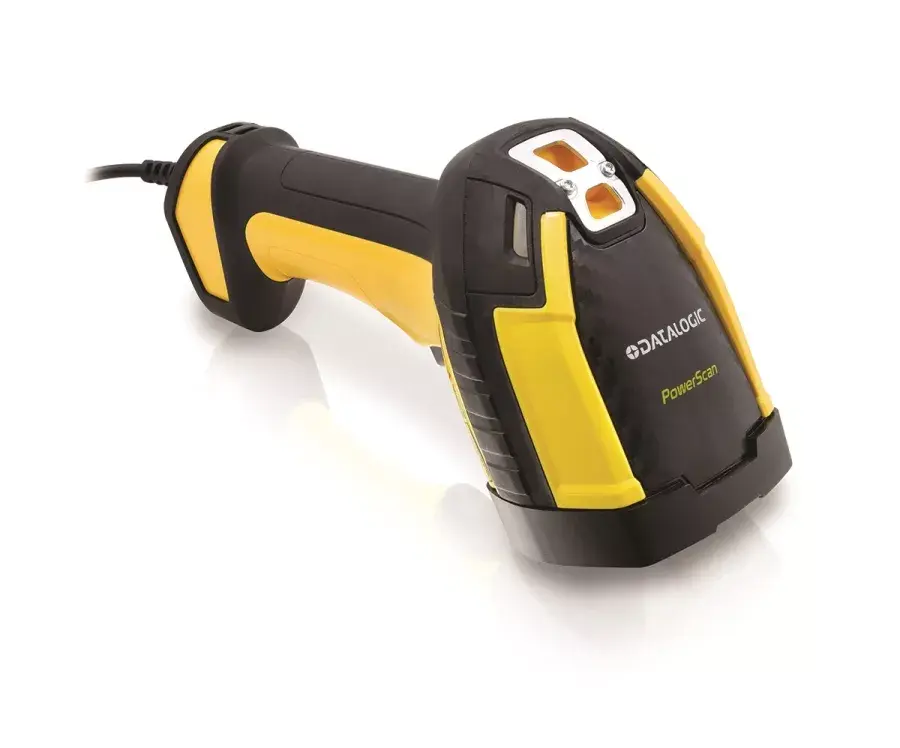

Handheld barcode reader Datalogic PD9630-SRK2 Photo 4
Handheld barcode reader Datalogic PD9630-SRK2 Photo 1
Handheld barcode reader Datalogic PD9630-SRK2 Photo 2
Handheld barcode reader Datalogic PD9630-SRK2 Photo 3
Handheld barcode reader Datalogic PD9630-SRK2 Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld barcode reader Datalogic PD9630-SRK2 1D/2D Wired Black Yellow

{{email}}
You keep track of price changes

Handheld barcode reader Datalogic PD9630-SRK2 1D/2D Wired Black Yellow

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic PD9630-SRK2 is a handheld barcode reader designed for 1D and 2D barcode scanning. It features wired connectivity with RS-232 interface, IP65/IP67 protection, and is resistant to dirt and water. Weighing 318 g, it is compact and durable, making it suitable for various environments.
Available at price 359.49 €: 1 pcs.
Total available for order: 24 pcs.
Warranty: 2 Years
SKU: 4776748
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
12.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.62 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
15.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic PowerScan PD9630-SR (RS-232 kit) is an ultra-rugged handheld barcode imager for 1D and 2D codes. Supplied as a kit with the scanner and RS-232 cable (CAB-549), the PD9630-SRK2 offers a balanced ergonomic shape, robust industrial construction and sealed protection suitable for harsh environments. It provides wired RS-232 connectivity, fast first-pass reading and motion-sensing automatic mode switching between handheld and presentation scanning.

Advantages

The PD9630-SRK2 combines an ultra-rugged mechanical design with balanced ergonomics to reduce operator fatigue. Its area-imager optics deliver reliable decoding of both 1D and 2D barcodes at typical working distances, while Datalogic feedback features — including 3 Green Lights (3GL™), Green Spot, audible beeper and vibration — provide clear good-read confirmation. Multi-interface capability is provided via RS-232 and USB, with optional Ethernet available for industrial networking. Motionix™ motion-sensing enables automatic switching between handheld and presentation modes.

Suitable for

  • Warehouse receiving and shipping
  • Industrial production lines and assembly
  • Logistics and distribution centers
  • Retail back-office and stockroom operations
  • Document capture and label verification (with appropriate optic)

Key specifications

  • Scanner type: 1D/2D area imager
  • Interface: RS-232 (kit includes CAB-549); USB and optional Ethernet supported
  • Working distance: up to 200 mm (typical)
  • Weight: 0.318 kg
  • Protection: rugged industrial design; suitable for dusty and wet environments (see manufacturer ratings)
  • Supported linear (1D) codes: UPC-E, UPC-A, EAN-8, EAN-13, EAN 5/2, EAN128, Code 128, China Post
  • Supported 2D codes: Aztec, Data Matrix, MaxiCode, Micro QR, MicroPDF417, PDF417, QR Code
  • Color: Black / Yellow

How to use

Connect the scanner to your host using the supplied RS-232 cable (CAB-549) or an alternate supported interface. Hold the imager in a natural grip and aim the targeting system at the barcode; press the trigger to scan or rely on Motionix™ to switch to presentation mode when placing items in front of a fixed-mounted scanner. Confirm successful reads via the Green Spot, 3GL™ LEDs, audible beeper or vibration feedback. Configure interface parameters and barcode decoding settings through your host application or Datalogic configuration tools as required.

Usage recommendations

Use the PD9630-SRK2 in environments where an ultra-rugged, wired 1D/2D scanner is required. For best results, keep the scanner window clean and position items within the typical working distance (around 200 mm) appropriate to the chosen optic. Choose the High Performance or Document Capture optic variants if your application requires higher density barcode decoding or wide-angle/document imaging.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.318 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
Power source type: What the power source is.
RS-232
Product colour: The colour e.g. red, blue, green, black, white.
Yellow, Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
EAN 5, China Post, Code 128, EAN 128, EAN 2, EAN-13, EAN-8, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
All features

Logistics data

Harmonized System (HS) code:
84716070

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, REACH

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50

Packaging data

Cables included:
RS-232

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.318 kg
Height: The measurement of the product from head to foot or from base to top.
190 mm
Depth: The distance from the front to the back of something.
140 mm
Width: The measurement or extent of something from side to side.
79 mm

Power

Power consumption:
200 mA
Input voltage: The voltage (V) which is required to power the product.
5 - 30
Power source type: What the power source is.
RS-232

Performance

Vibration function:
Yes
Print contrast:
15 %
Buzzer:
Yes
LED indicators:
Y
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Water resistant, Electrostatic Discharge (ESD) protection, Dust resistant, Drop proof, Dirt resistant
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP65, IP67
Product colour: The colour e.g. red, blue, green, black, white.
Yellow, Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Yaw reading angle:
-52 - 52
Pitch reading angle:
-52 - 52
Tilt reading angle:
0 - 360
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
630 nm
Light levels (direct sunlight):
0 - 100000
Working distance:
200 mm
Optical sensor resolution (W x H):
1280 x 800
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
EAN 5, China Post, Code 128, EAN 128, EAN 2, EAN-13, EAN-8, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 1 12.10.2026
359.49 € Best price
EU9 10 28.09.2026 Best delivery
389.99 €
WH144 13 28.09.2026 Best delivery
407.49 €
Available only for legal entities
359.49 €
Stock: 1
Delivery Date: 12.10.2026
Warehouse: WH109
389.99 €
Stock: 10
Delivery Date: 28.09.2026 Best delivery
Warehouse: EU9
407.49 €
Stock: 13
Delivery Date: 28.09.2026 Best delivery
Warehouse: WH144

Customer reviews

Customer questions

FAQ

How much does the Handheld barcode reader Datalogic PD9630-SRK2 cost, and is it available for purchase?

The price is 359.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 24 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 12.10.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Datalogic products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Datalogic service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: weight, connectivity technology, scanner type, type, power source type, product colour, standard interfaces, linear (1d) barcodes supported, 2d (matrix & stacked) barcodes supported, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Handheld barcode reader Datalogic PD9630-SRK2?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
