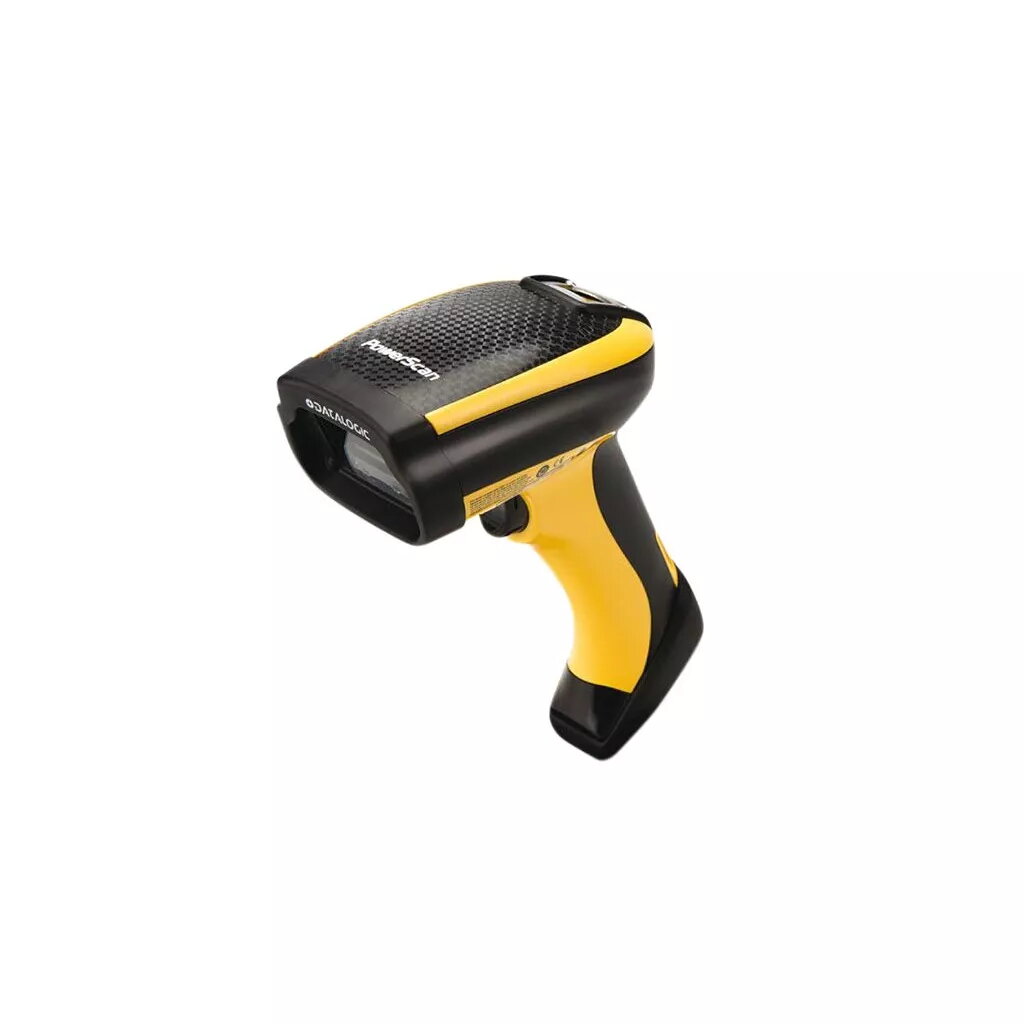

Handheld bar code reader Datalogic PowerScan PM9500

Name: Handheld bar code reader Datalogic PM9500-433RBK20
Brand: Datalogic
SKU: 260600
Price: 25.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Short description

The Datalogic PowerScan PM9500 is a versatile handheld bar code reader that supports both 1D and 2D scanning. With a robust photo diode sensor, it offers wired and wireless connectivity options, including USB and RS-232 interfaces, with a wireless range of up to 100 meters. Its IP65 rating ensures durability in harsh environments, while the Lithium-Ion battery provides long-lasting power with a capacity of 2150 mAh. Weighing only 380 g and measuring 74 mm in width and 110 mm in depth, it is designed for ease of use and portability.

Warranty: 2 Years

SKU: 260600

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic PowerScan PM9500 handheld bar code reader is a rugged cordless area imager designed for demanding industrial and retail environments. It supports 1D and 2D codes using a photo diode sensor, offers wired and wireless connectivity, and features a robust design with IP65 resistance and a long-life Lithium‑Ion battery for extended shifts.

Advantages

The PowerScan PM9500 delivers omnidirectional 1D/2D reading performance and a soft white illumination that reduces operator eye strain. Models with an optional display and four configurable keys enable two-way interaction between user and host. It integrates Datalogic technologies such as the STAR Cordless System™ for reliable radio range, Motionix™ motion sensing, and 3GL™ three-green-lights plus a loud beeper for good-read feedback. Long battery life and ergonomic handle design support comfortable, intensive scanning.

Suitable for

Warehouse receiving and order picking
Manufacturing and production tracking
Retail checkout and inventory management
Logistics, loading docks and distribution centers

Key specifications

Scanner type: 1D/2D area imager
Sensor type: Photo diode
Connectivity: Wired & wireless (USB, RS-232; STAR Cordless System™ radio)
Radio frequencies: High speed 433 MHz and 910 MHz options
Battery: Lithium‑Ion, 2150 mAh (long lasting for more than one shift)
Durability: IP65-rated rugged housing
Weight: 0.38 kg
Supported 2D codes: QR Code, Micro QR, MaxiCode, Aztec, Data Matrix
Colours: Black, Yellow

How to use

Power on the PowerScan PM9500 and pair it with the host device using the wired interface or the STAR Cordless System™ radio. Aim the imager at the barcode using the intuitive aiming system and press the trigger to scan; omnidirectional reading increases first-pass read rates. If present, use the display and configurable keys to send and receive information or change operating modes. Recharge the Lithium‑Ion battery between shifts as needed.

Usage recommendations

For best results in scan-intensive environments, use models with the soft white illumination and optional display for improved operator feedback, keep firmware up to date, and follow Datalogic’s maintenance and EASEOFCARE service plan options to ensure continuous operation and maximum ROI.

Specifications

Scanner type:: 1D/2D
Sensor type:: Photo diode
Connectivity technology:: Wired & Wireless
Weight:: 0.38 kg
2D (matrix & stacked) barcodes supported:: QR Code, Micro QR Code, MaxiCode, Aztec Code, Data Matrix
Product colour:: Black, Yellow

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: Photo diode
Type:: Handheld bar code reader
2D (matrix & stacked) barcodes supported:: QR Code, Micro QR Code, MaxiCode, Aztec Code, Data Matrix
Wavelength:: 680 nm
Yaw reading angle:: 0 - 40
Pitch reading angle:: 0 - 40
Tilt reading angle:: 0 - 360
Light levels (direct sunlight):: 0 - 100000

Ports & interfaces

Connectivity technology:: Wired & Wireless
Wireless range:: 100 m
Operating frequency:: 433
Standard interfaces:: USB, RS-232

Power

Number of batteries supported:: 1
Charging time:: 4 h
Number of reads per charge:: 30000
Power source type:: Battery
Battery life:: 10 h

Performance

Product colour:: Black, Yellow
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP65

Weight & dimensions

Weight:: 0.38 kg
Height:: 212 mm
Width:: 74 mm
Depth:: 110 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -20 - 50

Battery

Battery technology:: Lithium-Ion (Li-Ion)
Battery capacity:: 2150 mAh

Packaging data

Cables included:: RS-232, AC
Charging base:: Yes

Logistics data

Harmonized System (HS) code:: 84716070
