header-product Handheld barcode reader Datalogic PM9600-SR433RBK20 1D/2D Laser Wired Wireless
904.99 €

Handheld barcode reader Datalogic PM9600-SR433RBK20 1D/2D Laser Wired Wireless

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 1

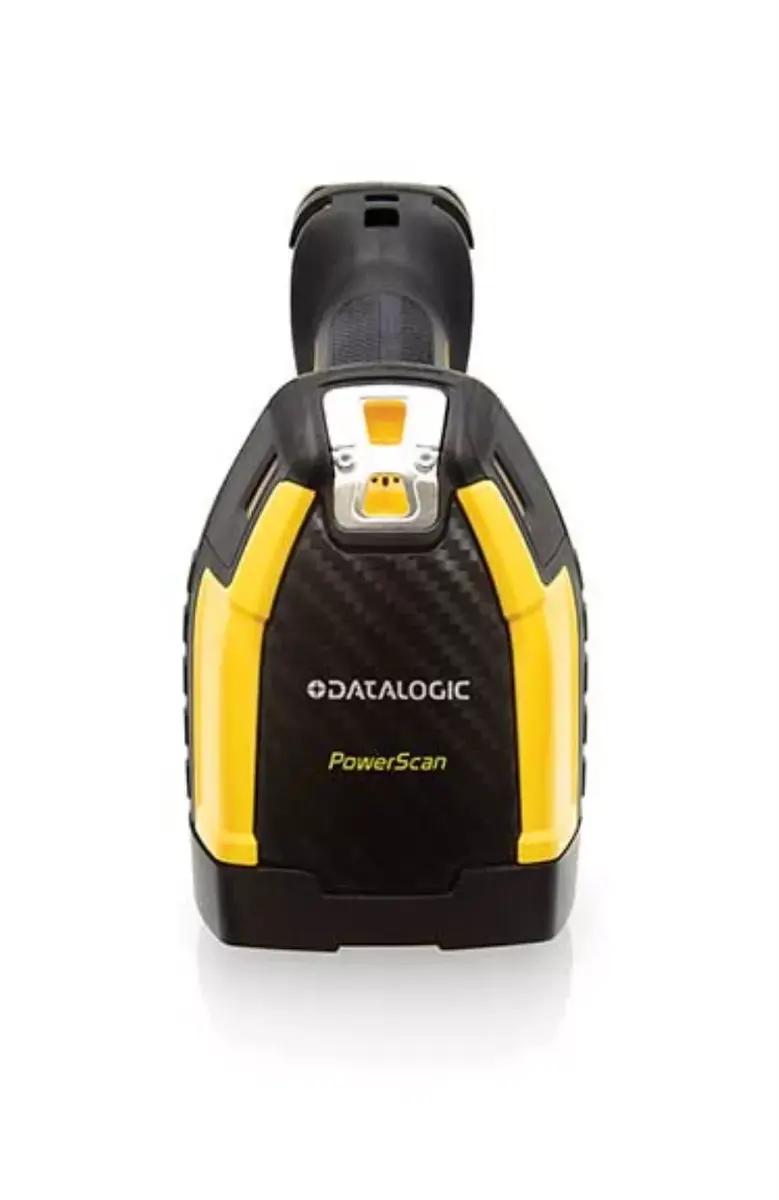

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 2

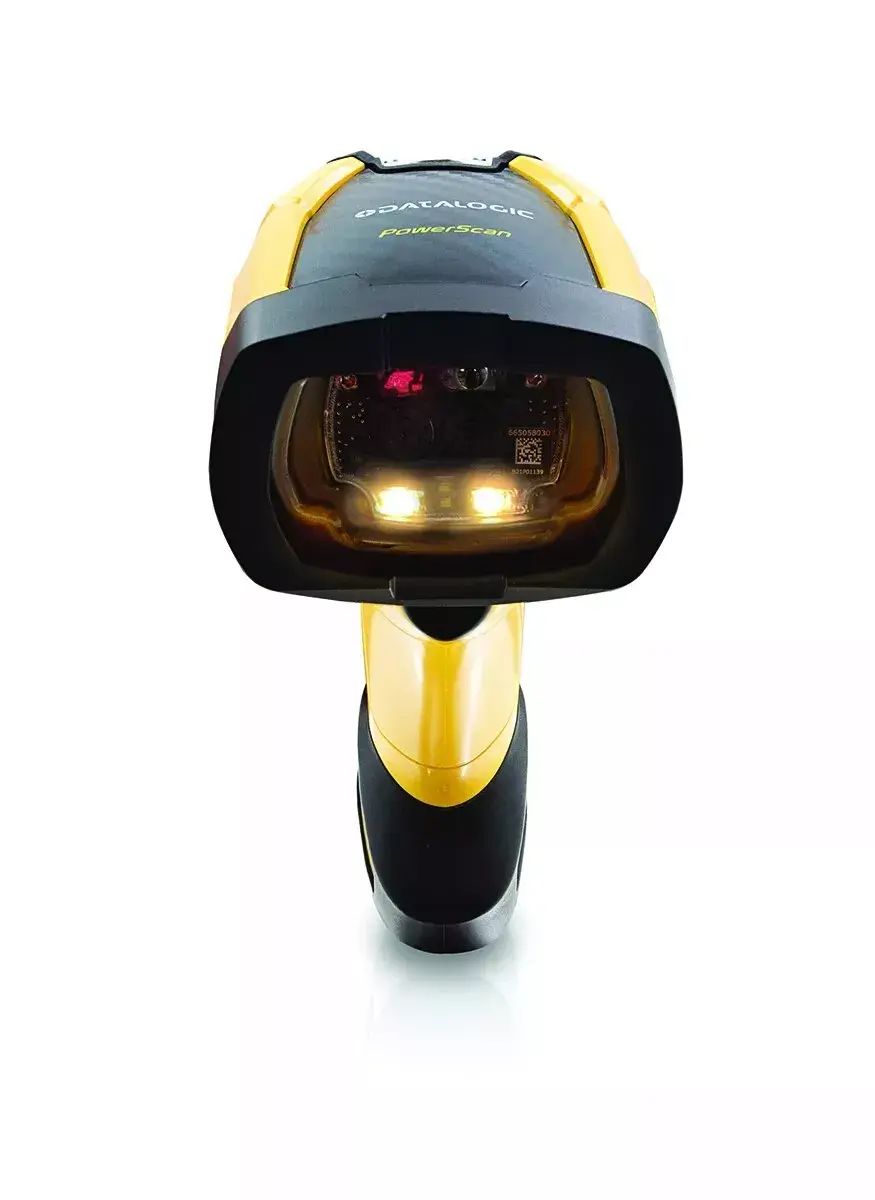

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 3

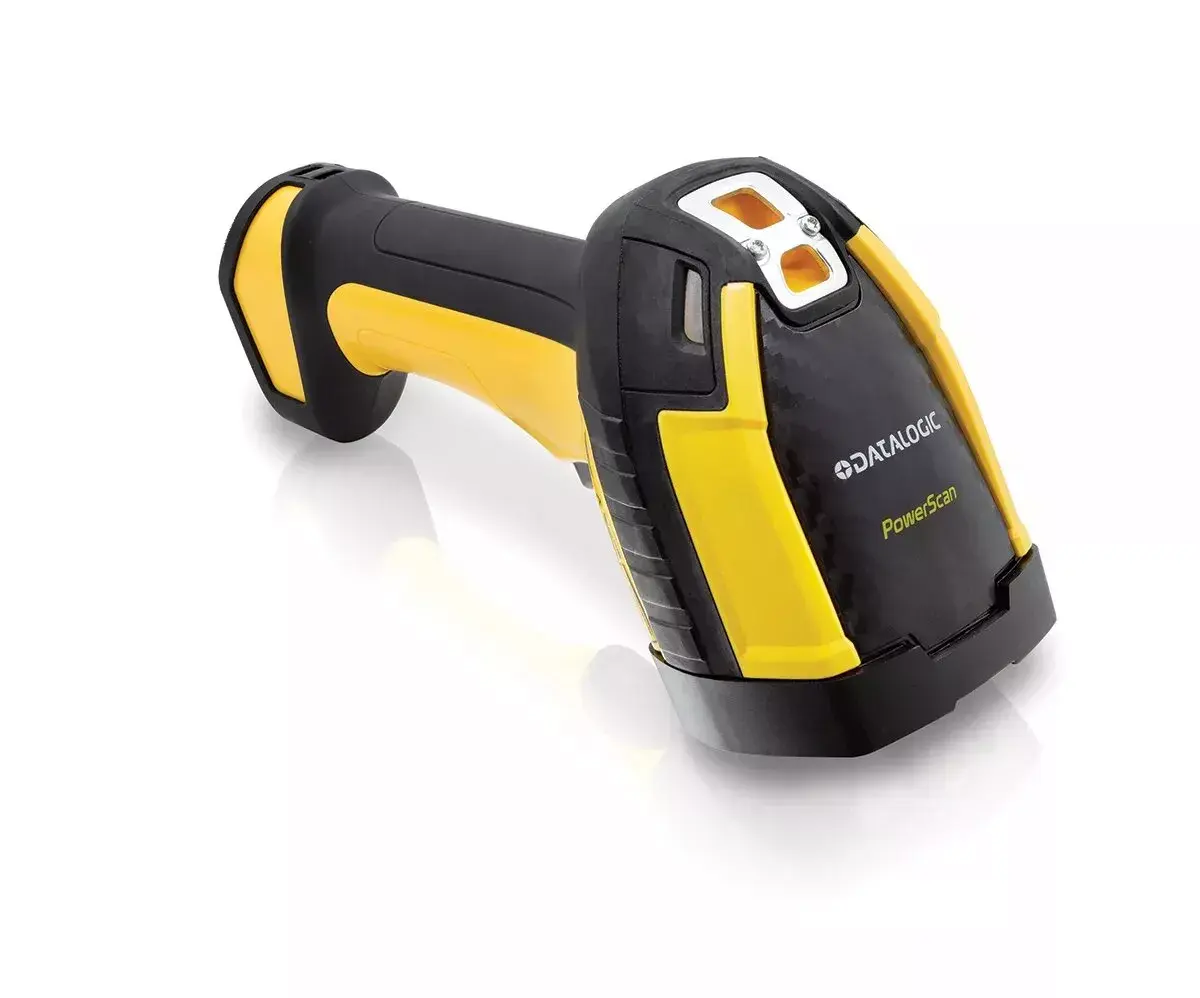

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 4

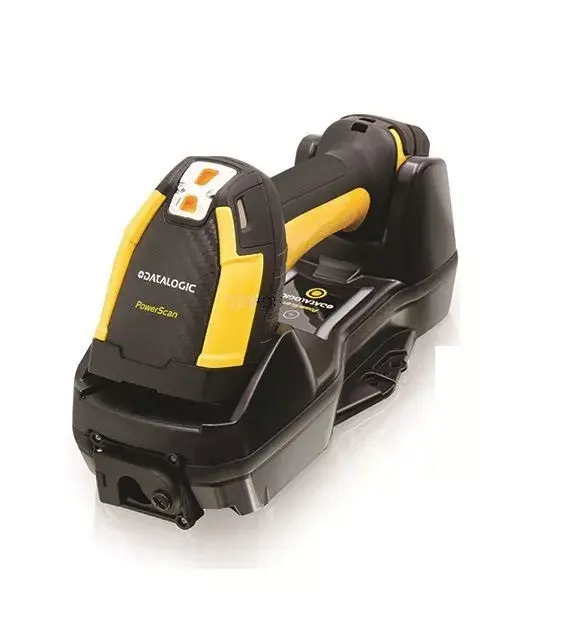

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 5

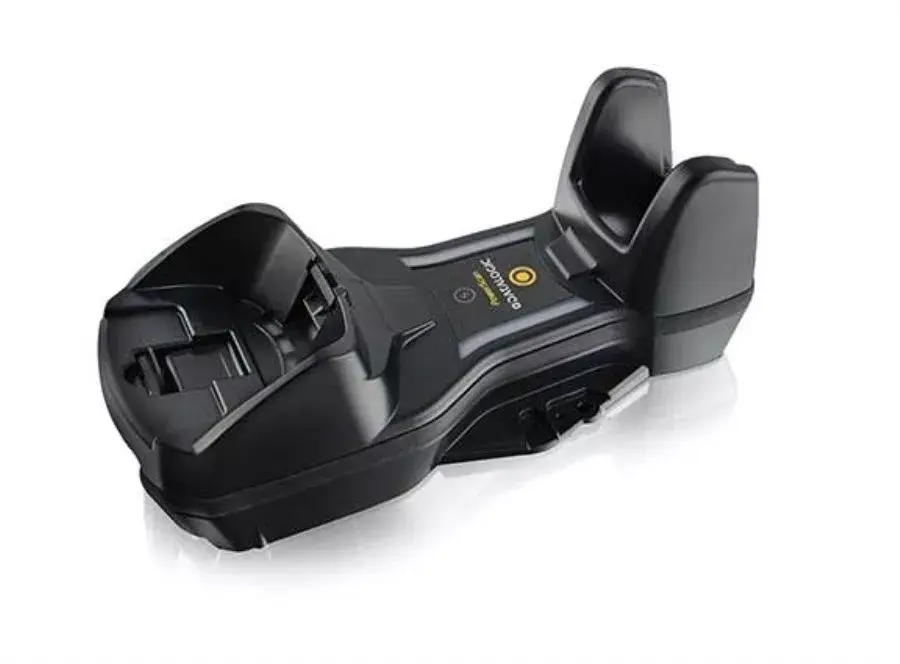

Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 6
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 7
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 8
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 1
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 2
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 3
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 4
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 5
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 6
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 7
Handheld barcode reader Datalogic PM9600-SR433RBK20 Photo 8
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld barcode reader Datalogic PM9600-SR433RBK20 1D/2D Laser Wired Wireless

{{email}}
You keep track of price changes

Handheld barcode reader Datalogic PM9600-SR433RBK20 1D/2D Laser Wired Wireless

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic PM9600-SR433RBK20 is a handheld barcode reader featuring 1D/2D laser scanning capabilities. It offers both wired and wireless connectivity options, operates at 433 MHz, and is designed for durability with IP65/IP67 protection against dust and water. Weighing 425 g, it is powered by a Lithium-Ion battery and has a typical power consumption of 15 W.
Available at price 904.99 €: 7 pcs.
Total available for order: 36 pcs.
Warranty: 2 Years
SKU: 5060376
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 31.49 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic PowerScan PM9600-SR (PM9600-SR433RBK20) is a rugged handheld 1D/2D barcode scanner supplied as a kit including the PM9600-SR scanner, BC9630-433 cradle, CAB-548 cable, 8-0935 power supply and power cord 6003-0940. Designed for industrial use, it supports 433 MHz wireless communications and wired RS-232 connectivity, offers IP65/IP67 protection against dust and water, withstands 2.5 m drops to concrete and uses a Lithium-Ion battery for mobile operation.

Advantages

The PowerScan 9600 series delivers high durability and reliable reading performance with a single-camera Standard Range model suited to typical reading distances. Its cradle system supports exchangeable communication modules for RS-232, USB, USB-C, Ethernet, Ethernet/IP and Profinet, enabling straightforward integration with PCs, industrial PCs, tablets and PLCs without third-party interfaces. The scanner supports Datalogic’s STAR narrow-band radio for interference-free wireless operation and increased device-per-cradle capacity, while wireless charging in the cradle and smart battery management improve uptime and reduce maintenance and total cost of ownership.

Suitable for

  • Industrial manufacturing traceability and work-in-progress tracking
  • Warehouse and intralogistics scanning and inventory control
  • Retail backroom and stock handling where robust devices are required
  • Environments requiring wireless 433 MHz communication and RS-232 interfacing

Key specifications

  • Model: Datalogic PowerScan PM9600-SR (MPN PM9600-SR433RBK20)
  • Scan type: 1D/2D image-based scanner (Standard Range, single camera)
  • Connectivity: 433 MHz wireless (STAR), RS-232; cradle supports exchangeable modules (USB, USB-C, Ethernet, Ethernet/IP, Profinet)
  • Protection: IP65 and IP67
  • Drop resistance: up to 2.5 m onto concrete
  • Battery: Lithium‑Ion rechargeable (wireless charging in cradle)
  • Typical power consumption: 15 W
  • Weight: approximately 425 g

How to use

Charge the scanner in the BC9630-433 cradle to ensure the Lithium‑Ion battery is fully charged and the device registers with the host using the chosen communication interface. For wireless operation, pair the scanner with the cradle using the 433 MHz STAR radio; for wired setups connect via RS-232 or fit the appropriate cradle communication module for USB, USB-C, Ethernet, Ethernet/IP or Profinet. Aim the scanner at the barcode within the normal reading range for the Standard Range model and press the trigger; a green spot and white illumination indicate a successful read. Use the included CAB-548 cable and power accessories for wired installations as required.

Usage recommendations

Use the scanner in environments where robust protection against dust and water is required, and prefer the STAR 433 MHz wireless option in areas with dense Wi‑Fi or Bluetooth deployment to reduce interference. Regularly inspect and charge the Lithium‑Ion battery, use the cradle’s wireless charging to avoid contact-related charging failures, and monitor cradle-reported device health to plan predictive maintenance and minimize downtime.

Specifications

Scanner type:
1D/2D
Sensor type:
Laser
Connectivity technology:
Wired & Wireless
Weight:
0.425 kg
Linear (1D) barcodes supported:
EAN-13, EAN 5, EAN 2, EAN 128, Code 128, China Post, EAN-8, GS1 DataBar, Matrix 2 of 5, PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported:
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Product colour:
Yellow, Black
All features

Scanning

Scanner type:
1D/2D
Sensor type:
Laser
Type:
Handheld bar code reader
Linear (1D) barcodes supported:
EAN-13, EAN 5, EAN 2, EAN 128, Code 128, China Post, EAN-8, GS1 DataBar, Matrix 2 of 5, PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported:
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Wavelength:
630 nm
Yaw reading angle:
-52 - 52
Pitch reading angle:
-52 - 52
Tilt reading angle:
0 - 360
Light levels (direct sunlight):
0 - 100000
Optical sensor resolution (W x H):
1280 x 800

Ports & interfaces

Connectivity technology:
Wired & Wireless
Operating frequency:
433
Standard interfaces:
RS-232

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
15 W
AC adapter output voltage:
5
Number of batteries supported:
1
Input voltage:
5
Charging time:
3.2 h
Battery voltage:
3.7 V
Power consumption:
480 mA
Number of reads per charge:
80000
Power source type:
Battery

Technical details

Compliance certificates:
REACH, RoHS

Performance

Product colour:
Yellow, Black
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP65, IP67
Protection features:
Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant, Dirt resistant
Buzzer:
Yes
Print contrast:
15 %
Vibration function:
Yes

Weight & dimensions

Weight:
0.425 kg
Height:
198 mm
Width:
79 mm
Depth:
140 mm

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
-20 - 50

Battery

Battery technology:
Lithium-Ion (Li-Ion)
Battery capacity:
3350 mAh

Packaging data

Cables included:
RS-232, AC
External power adapter:
Yes
Charging base:
Yes

Logistics data

Harmonized System (HS) code:
84716070
