header-product Surge Protection Device DEHN DBX U4 KT BD S 0-180 Grey
260.49 €

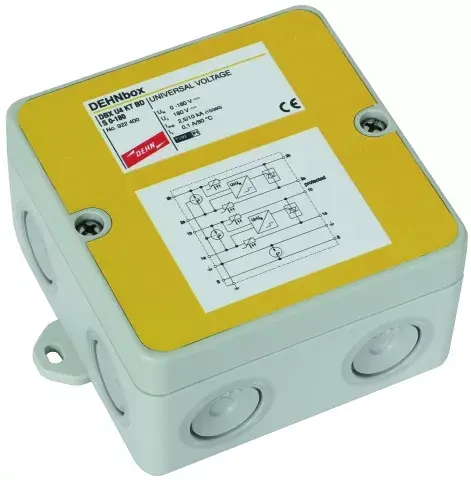

Surge Protection Device DEHN DBX U4 KT BD S 0-180 Grey

Surge Protection Device DEHN DBX U4 KT BD S 0-180 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Surge Protection Device DEHN DBX U4 KT BD S 0-180 Grey

{{email}}
You keep track of price changes

Surge Protection Device DEHN DBX U4 KT BD S 0-180 Grey

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The DEHN DBX U4 KT BD S 0-180 is a grey surge protection device designed for nominal input voltage of 180 V. It weighs 220 g and has dimensions of 93 mm x 93 mm. This device provides reliable protection against voltage spikes, ensuring the safety and longevity of connected equipment.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 3213667
Manufacturer: dehn + soehne
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
21.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
26.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.25 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
26.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DEHN DBX U4 KT BD S 0-180 is a compact combined lightning current and surge arrester in a surface-mounted plastic enclosure. It is designed to protect two pairs of galvanically isolated balanced interfaces with the same or different signal voltages and supports direct or indirect shield earthing. The unit incorporates actiVsense technology and is intended for installation at lightning protection zone boundaries from 0A–2 and higher.

Advantages

This compact surge protection device is capable of carrying lightning currents up to 10 kA (10/350 µs) while providing a low voltage protection level suitable for safeguarding terminal equipment. Its IP65-rated surface-mounted plastic enclosure allows wall mounting and offers environmental protection. Spring-loaded terminals enable quick and easy installation and reliable contact even in confined installations.

Suitable for

  • Protection of two-pair balanced data or signal transmission lines (galvanically isolated)
  • Installations requiring combined lightning current and surge protection at LPZ boundaries (0A–2 and higher)
  • Applications with direct or indirect shield earthing requirements
  • Indoor or sheltered outdoor wall-mounted equipment where IP65 protection is needed

When it may not be suitable

This device is intended for protecting balanced interfaces and may not be suitable for unbalanced single-conductor signals or for circuits requiring different protection concepts (for example, specialized mains surge protection or protection for high-frequency radio antennas). It is also not a substitute for full structural lightning protection systems where additional measures are required.

Key specifications

  • Function: combined lightning current and surge arrester for two pairs
  • Lightning current capability: up to 10 kA (10/350 µs)
  • Nominal voltage (recommended application): 180 V
  • Enclosure: surface-mounted plastic, degree of protection IP65
  • Connection: spring-loaded terminals for quick installation
  • Dimensions: 93 mm × 93 mm × 54 mm
  • Weight: 220 g
  • Shield earthing: supports direct or indirect earthing

How to use

Mount the device on a suitable wall surface ensuring correct orientation and secure fastening. Connect the two balanced signal pairs to the designated terminals, observing polarity and maintaining galvanic isolation as required by the installation. Implement shield earthing either directly or indirectly, following site earthing practices and local standards. Verify connections before restoring operational voltage and test the protected equipment after installation.

What to consider before purchase

  • Ensure the device's nominal voltage (about 180 V) matches the signal system requirements
  • Confirm the need for combined lightning current and surge protection for balanced two-pair lines
  • Check available mounting space to accommodate the unit's dimensions (93 × 93 × 54 mm)
  • Verify that IP65 enclosure rating and spring-loaded terminal terminations meet environmental and installation needs

Usage recommendations

Install this surge protection device at the appropriate lightning protection zone boundary and follow national installation standards and the manufacturer's detailed instructions. Periodically inspect the device and connections after significant surge events and during routine maintenance to ensure continued protection.

All features
Weight:
0.22 kg
Operating temperature (T-T):
-25 - 40
Height:
54 mm
Width:
93 mm
Depth:
93 mm
Nominal input voltage:
180
Product colour:
Grey
