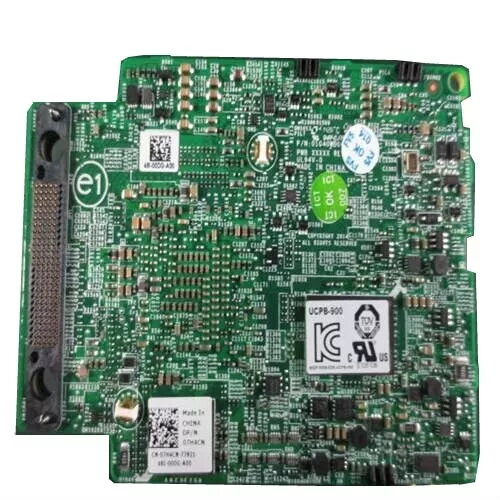

RAID controller DELL 405-AAEK

Name: RAID controller DELL 405-AAEK 405-AAEK
Brand: Dell
SKU: 326761
Price: 202.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The DELL 405-AAEK RAID controller is a PCI Express x8 3.0 device supporting SAS and SATA III interfaces. It features 8 channels and supports RAID levels 0, 1, 5, 6, 10, 50, and 60, making it versatile for various storage configurations. Compatible with PowerEdge R430, R530, R630, R640, R730, and R730XD servers, it is powered by the SAS 3108 processor from the LSI family. This controller is ideal for Windows Server 2008 R2 and 2012 environments, providing reliable performance and data protection.

Available at price 202.99 €: 2 pcs.

Total available for order: 6 pcs.

Warranty: 2 Years

SKU: 326761

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.34 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 238.49 €: 2 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DELL 405-AAEK RAID controller is a PCI Express x8 3.0 storage controller designed for server environments. It supports both SAS and SATA III drives across 8 channels and implements hardware RAID levels 0, 1, 5, 6, 10, 50 and 60. Built around the LSI family SAS 3108 processor, the controller is compatible with a range of PowerEdge servers and is intended for deployment in Windows Server 2008 R2 and 2012 systems where dependable RAID functionality and high throughput are required.

Advantages

The controller provides multi-level RAID support for flexible data protection and performance tuning, with hardware acceleration from the SAS 3108 chipset. Its PCI Express x8 host interface offers high-bandwidth connectivity to the host system, while support for both SAS and SATA III media enables mixed-drive configurations. Compatibility with common PowerEdge server models simplifies integration into existing server fleets.

Suitable for

Enterprise and SMB server storage requiring hardware RAID
Database servers and virtualized hosts where redundancy and performance are needed
Backup and archival systems using mixed SAS/SATA drives
Systems running Windows Server 2008 R2 or Windows Server 2012

Key specifications

Host interface: PCI Express x8 (PCIe 3.0)
Supported drive interfaces: SAS and SATA III
Number of channels: 8
Supported RAID levels: 0, 1, 5, 6, 10, 50, 60
Controller chipset family: LSI SAS 3108
Intended operating environments: Windows Server 2008 R2, Windows Server 2012

How to use

Install the controller into a free PCIe x8 slot on a compatible server motherboard following standard electrostatic discharge (ESD) precautions. Connect SAS or SATA drive backplanes or cables to the controller’s ports according to the server chassis layout. Power on the host and enter the system's pre-boot configuration utility to verify the controller is detected and to configure RAID arrays. Load the appropriate drivers in the operating system, then initialize and format logical volumes before placing them into production.

Usage recommendations

For optimal performance and reliability, use enterprise-class SAS drives when implementing RAID levels that require high I/O throughput or write performance. Ensure firmware and driver versions for both the controller and host server are kept up to date. Maintain regular backups and monitor array health through vendor or third-party management tools to detect degradations early.

Specifications

Host interface:: PCI Express x8

All features

Ports & interfaces

Host interface:: PCI Express x8
PCI Express slots version:: 3.0
Supported storage drive interfaces:: SAS, Serial ATA III

Weight & dimensions

Width:: 167.6 mm
Depth:: 64.4 mm

System requirements

Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2012, Windows Server 2008 R2 x64, Windows Server 2008 R2

Performance

RAID levels:: 60, 50, 10, 6, 5, 1
Compatible products:: PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R640 PowerEdge R730 PowerEdge R730XD PowerEdge R740 PowerEdge R740XD
Channels quantity:: 8 channels
Number of devices supported:: 255

Logistics data

Harmonized System (HS) code:: 84733080

Processor

Built-in processor:: No

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	2	06.07.2026	238.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU6	2	29.06.2026 Best delivery	202.99 € Best price
WH109	2	13.07.2026	247.49 €

238.49 €

Stock: 2

Delivery Date: 06.07.2026

Warehouse: WH354

Available only for legal entities

202.99 €

Stock: 2

Delivery Date: 29.06.2026 Best delivery

Warehouse: EU6

247.49 €

Stock: 2

Delivery Date: 13.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the RAID controller DELL 405-AAEK cost, and is it available for purchase?

The price is 202.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 6 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 29.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Dell products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Dell service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: host interface, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Show all questions
