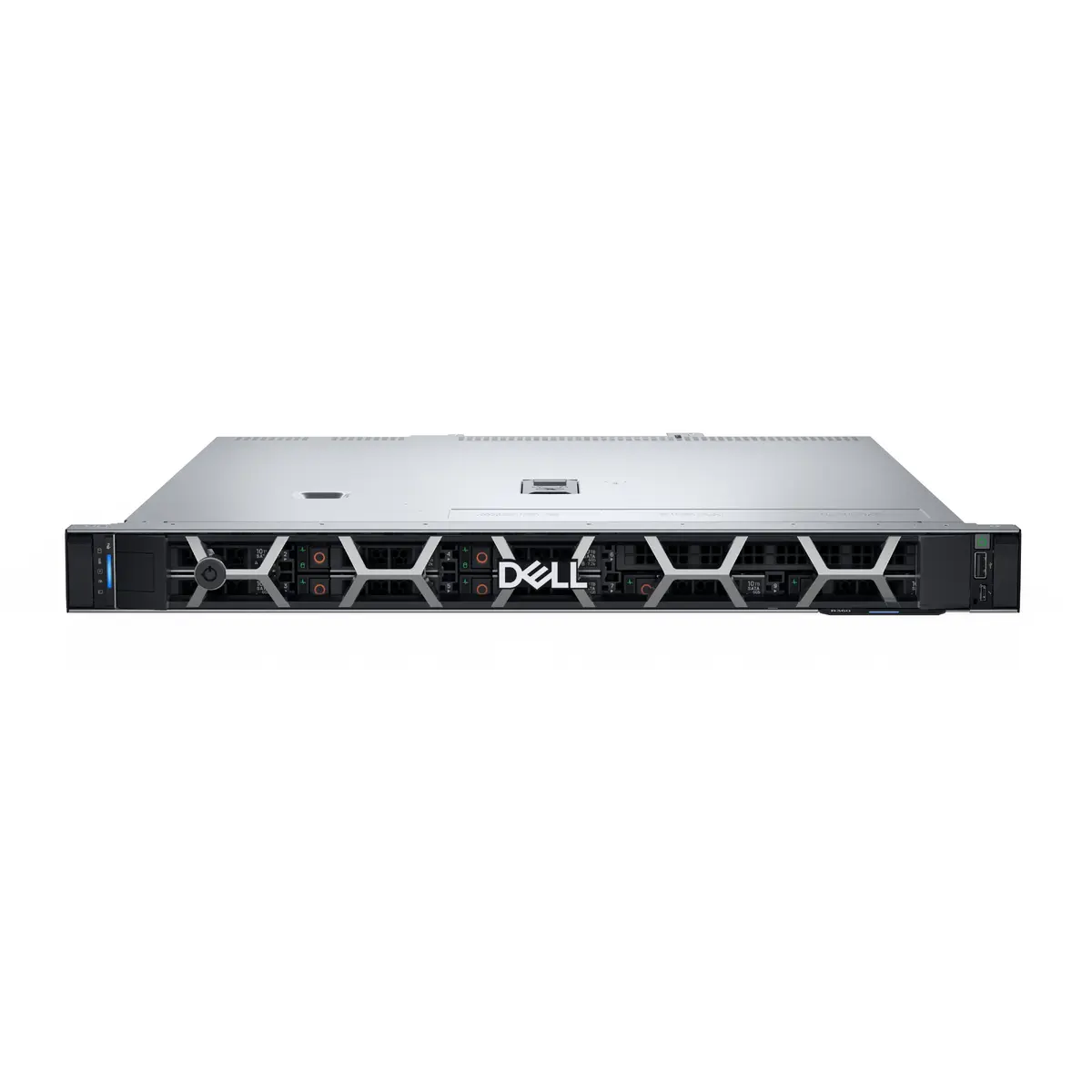

Server Rack (1U) Dell PowerEdge R360 Intel Xeon 6 6325P 3.5 GHz, 32 GB DDR5, 480 GB, 700 W

Performance cores:

4

Processor

Processor model:

6325P

Processor manufacturer:

Intel

Processor family:

Intel Xeon 6

System bus rate:

16 GT/s

Processor threads:

8

Processor boost frequency:

5.2 GHz

Processor cache:

12 MB

Processor frequency:

3.5 GHz

Thermal Design Power (TDP):

55 W

Memory types supported by processor:

DDR5-SDRAM

Memory clock speeds supported by processor:

4800

Memory

Internal memory type:

DDR5-SDRAM

Maximum internal memory:

128 GB

ECC:

Yes

Memory layout (slots x size):

1 x 32

Internal memory:

32 GB

Memory data transfer rate:

5600 MT/s

Buffered memory type:

Unregistered (unbuffered)

Storage

Hot-Plug support:

Yes

Total storage capacity:

480 GB

SSD interface:

SATA III

SSD capacity:

480 GB

RAID support:

No

Number of SSDs installed:

1

Number of SSDs supported:

8

Supported RAID controllers:

Front PERC H755 Front Load

SSD size:

2.5"

Drive writes per day (DWPD):

1

Supported SSD sizes:

2.5"

Network

Ethernet LAN:

Yes

LAN controller:

Broadcom 5720

Ethernet interface type:

Gigabit Ethernet

Ports & interfaces

Serial ports quantity:

1

USB 2.0 ports quantity:

2

Ethernet LAN (RJ-45) ports:

2

VGA (D-Sub) ports quantity:

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

Expansion slots

PCI Express x16 slots:

1

PCI Express x8 slots:

1

Power

Power supply:

700 W

Power supply input voltage:

200 - 240

Redundant power supply (RPS) support:

No

Power cable length:

2 m

Number of main power supplies:

1

Power cable current:

10 A

Power cable connector 1:

C13 coupler

Power cable connector 2:

C14 coupler

Design

Chassis type:

Rack (1U)

Product colour:

Black

Bezel:

Yes

Performance

Remote administration:

iDRAC9, Enterprise 16G

Technical details

Total carbon footprint (kg of CO2e):

1140

Other features

Memory slots:

4x DIMM

Data transfer rate:

6 Gbit/s

Bytes per sector:

512e

Target workload:

Read Intensive (RI)

Weight & dimensions

Height:

42.8 mm

Width:

482 mm

Certificates

80 PLUS certification:

80 PLUS Titanium

Software

Operating system installed:

No

Features

Compatible operating systems:

Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®

Carbon footprint

Total carbon emissions, standard deviation (kg of CO2e):

943

Carbon emissions, manufacturing (kg of CO2e):

307.8

Carbon emissions, logistics (kg of CO2e):

102.6

Carbon emissions, energy usage (kg of CO2e):

718.2

Carbon emissions, end-of-life (kg of CO2e):

11.4

PAIA version:

1.4.0, 2024

Packaging data

Packaging content:

ReadyRails™ Sliding Rails Without Cable Management Arm
