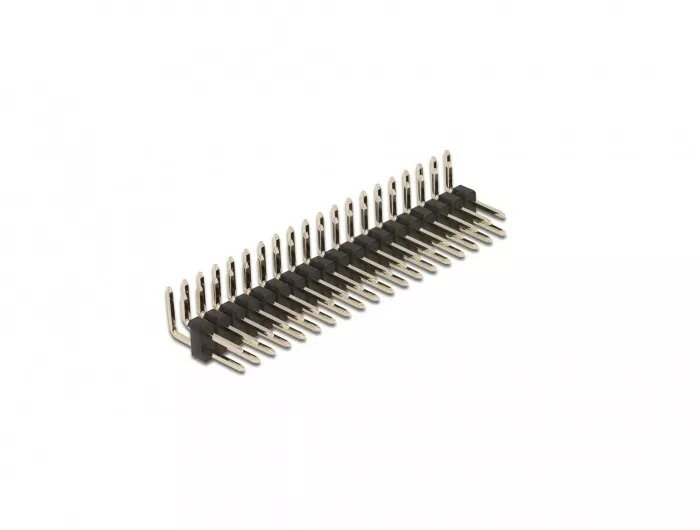

Pin header DeLOCK 66702

Name: Pin header DeLOCK 66702 Printed 66702
Brand: DELOCK
SKU: 4029431
Price: 5.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Pin header DeLOCK 66702 Printed Circuit Board (PCB) accessory

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The DeLOCK 66702 is a high-quality pin header designed for printed circuit boards. It features a black and metallic finish, made from durable metal and plastic materials. With dimensions of 50.8 mm in length, 12.9 mm in depth, and 5 mm in height, this accessory is perfect for various electronic applications, ensuring reliable connections and ease of installation.

Available at price 5.49 €: 341 pcs.

Total available for order: 641 pcs.

Warranty: 2 Years

SKU: 4029431

Manufacturer: DELOCK

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

21.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

21.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 6.49 €: 300 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DeLOCK 66702 pin header is an accessory for printed circuit boards (PCBs) that provides a reliable electrical and mechanical connection between individual boards or modules. It combines metal contacts with a plastic insulator and is finished in black and metallic tones. With compact dimensions, it is intended for use in various electronic assemblies where a durable PCB interconnect is required.

Advantages

The pin header offers a sturdy metal contact construction for consistent signal transmission and a plastic housing that facilitates soldering and board mounting. Its compact size and standard form factor simplify integration into existing PCB layouts, while the black and metallic finish supports clear polarity and alignment during installation.

Suitable for

Connecting stacked or adjacent printed circuit boards
Prototyping and custom electronic assemblies
Board-to-board signal and low-power connections in devices
Repair or replacement of existing PCB header connectors

Key specifications

Brand: DELOCK
Model / MPN: 66702
EAN: 4043619667024
Material: metal contacts with plastic insulator
Finish: black and metallic
Dimensions: 50.8 mm (length) x 12.9 mm (depth) x 5 mm (height)
Category: Printed circuit board (PCB) accessory

How to use

Place the pin header into the designated holes on the PCB so that the plastic insulator aligns with the board surface and the metal pins protrude through the solder side. Secure the header by soldering each pin to the board pads, ensuring good solder joints and correct orientation. After soldering, verify electrical continuity and mechanical stability before assembling connected modules or enclosures.

Usage recommendations

Use appropriate soldering equipment and ESD precautions when handling and installing the pin header. Verify pin alignment and spacing against your PCB design to ensure compatibility with mating connectors or board layouts.

All features

Material:: Plastic, Metal
Operating temperature (T-T):: -40 - 105
Number of pins:: 40
Height:: 5 mm
Depth:: 12.9 mm
Product colour:: Metallic, Black
Length:: 50.8 mm
Connector contacts plating:: Gold
Insulation resistance:: 1000 MΩ
Product type:: Pin header
Quantity per pack:: 5 pc(s)
Number of rows:: 2
Withstanding voltage:: 500 V
Connector form factor:: Angled
Soldering temperature (for 3 seconds):: 230 °C
Pitch distance:: 2.54 mm
