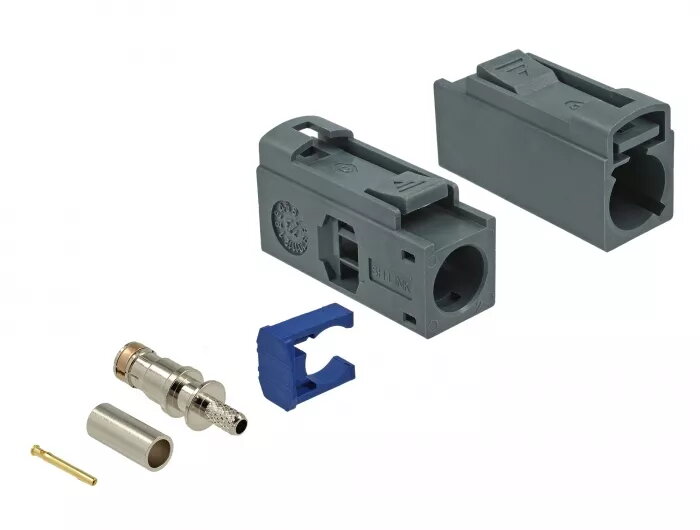

Coaxial connector DELOCK 89691 FAKRA G male, gold-plated contacts, 13.8×25×9.5 mm

DELOCK 89691 is a compact single-piece coaxial FAKRA G male connector with gold-plated contacts designed for reliable RF connections in automotive and electronic systems. With dimensions of 13.8 × 25 × 9.5 mm, the connector provides a small footprint while maintaining the mechanical and electrical characteristics expected from FAKRA interfaces. It is supplied as a single unit in a polybag and is intended for use where corrosion-resistant contact surfaces and consistent signal transmission are required.

Advantages

The gold-plated contacts provide improved corrosion resistance and stable electrical contact over time, while the single-piece FAKRA G male design ensures proper mating alignment and mechanical retention in compatible housings. The compact dimensions make this connector suitable for installations with limited space, and the robust construction supports reliable RF performance in mobile and vehicle environments.

Suitable for

• Automotive antenna and infotainment connections
• GPS, GNSS and telematics modules
• RF signal transmission in compact electronic devices
• Repair or replacement of FAKRA G male connectors in assemblies

Key specifications

• Connector type: FAKRA G male coaxial
• Contact plating: gold-plated contacts for corrosion resistance
• Construction: single-piece coaxial connector
• Dimensions (W × D × H): 13.8 × 25 × 9.5 mm
• Packaging: supplied as one unit in a polybag

How to use

Ensure the mating FAKRA female counterpart and housing are compatible with the FAKRA G keying before installation. Align the male connector with the female receptacle and push until the mechanical retention engages; verify secure seating to maintain reliable RF contact. Use appropriate cable assembly and strain relief practices when integrating the connector into vehicle wiring or electronic modules to prevent mechanical stress on the interface.

Usage recommendations

For optimal long-term performance, avoid exposing the connector to aggressive chemicals and ensure that mating cycles are kept within normal maintenance limits. When used in automotive environments, confirm connector compatibility with vehicle mounting brackets and routing to prevent deformation or undue vibration stress.
