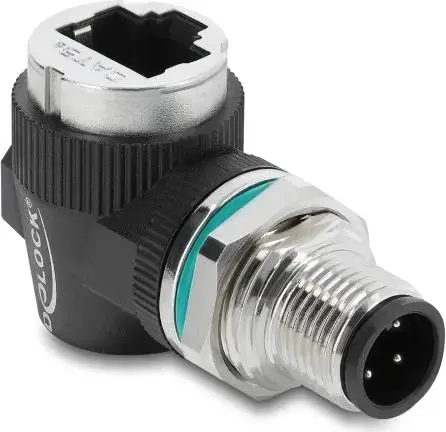

Delock M12 Adapter D-coded 4-pin Male to RJ45 Female Panel Mount 90° Angled

The Delock M12 adapter is a professional-grade networking component designed to bridge M12 D-coded 4-pin male interfaces with standard RJ45 female ports. Engineered for panel mounting, this adapter facilitates seamless integration of industrial Ethernet devices into standard network infrastructures. Its 90° angled design is specifically optimized for installations where space is restricted, allowing for efficient cable management and reduced mechanical stress on connections.

Advantages

This adapter provides a robust solution for maintaining signal integrity in demanding industrial environments. The D-coded M12 interface is renowned for its vibration resistance and durability, ensuring that data transmission remains stable even in settings prone to movement or mechanical interference. By converting the M12 connection to an RJ45 port, it allows for the use of standard network cables, simplifying maintenance and reducing the need for specialized cabling throughout the entire network path.

Suitable for

• Industrial Ethernet automation systems
• Connecting sensors and actuators to network switches
• Machine vision and robotics applications
• Panel-mounted network access points in tight enclosures

When it may not be suitable

This adapter is not intended for high-speed data applications exceeding the limitations of the D-coded standard, such as Gigabit Ethernet or higher. It is also not suitable for outdoor environments without additional protective housing, as the connector interface itself may not meet specific IP ratings required for direct exposure to harsh weather conditions.

Key specifications

• Connector 1: M12 D-coded 4-pin male
• Connector 2: RJ45 female
• Orientation: 90° angled
• Mounting type: Panel mount
• Application: Industrial Ethernet

How to use

To install the adapter, insert the M12 male end into the corresponding D-coded port on your industrial device or sensor and tighten the locking mechanism securely. The RJ45 female side should be mounted into the designated panel cutout using the provided mounting hardware. Once secured, connect a standard RJ45 Ethernet cable to the female port to establish the network link. Ensure that the panel cutout is sized correctly to accommodate the adapter housing for a flush and stable fit.

What to consider before purchase

• Verify that your device uses a D-coded 4-pin M12 interface.
• Check the available depth behind the panel to ensure the 90° angle fits correctly.
• Confirm the required panel cutout dimensions for the mounting hardware.
• Ensure the environment is compatible with the connector's physical specifications.

Usage recommendations

Always ensure that the M12 connection is fully tightened to maintain the integrity of the signal and prevent accidental disconnection due to vibration. Regularly inspect the RJ45 port for debris or dust accumulation to ensure optimal contact quality.
