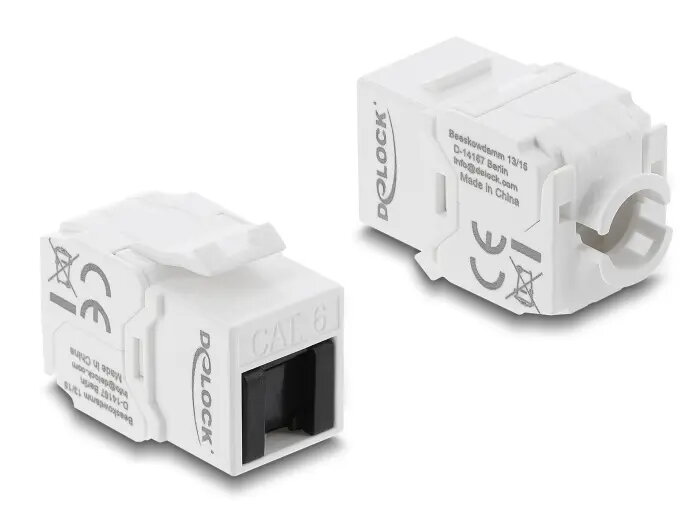

Keystone module DELOCK RJ45 to LSA Cat.6 UTP tool-free with dust cover, flat, 16×31.8×19.4 mm, white/black

DELOCK Keystone module is a tool-free connector for Cat.6 UTP network cables, combining an RJ45 female jack with an LSA termination interface. The flat housing measures 16 × 31.8 × 19.4 mm and includes a dust cover to protect the contact area when not in use. It is available in white and black and is designed for quick snap-in mounting into keystone panels, face plates or surface-mount boxes to simplify on-site Cat6 UTP cable termination without requiring punch-down tools.

Advantages

This keystone module offers tool-free LSA termination, enabling fast and reliable connection of solid and stranded 22–24 AWG conductors. The flat form factor reduces protrusion behind faceplates and in shallow boxes, while the integrated dust cover preserves connector contacts during installation or temporary disconnection. The RJ45 interface conforms to standard patching and network equipment, supporting Cat.6 UTP performance for typical local area network applications.

Suitable for

• Installing Cat.6 UTP network outlets in office and residential wall plates
• Snap-in mounting in keystone patch panels and structured cabling panels
• Use in shallow surface-mount boxes where reduced depth is required
• On-site terminations where punch-down tools are not available

Key specifications

• Connector type: RJ45 female
• Termination: tool-free LSA style
• Cable category: Cat.6 UTP
• Compatible conductor sizes: 22–24 AWG (solid/stranded)
• Housing profile: flat, low depth
• Dimensions: 16 × 31.8 × 19.4 mm
• Dust protection: integrated removable cover
• Colours available: white, black

How to use

Prepare the Cat.6 UTP cable by stripping the outer sheath to expose the conductors and arrange the pairs according to the chosen wiring standard. Insert each conductor into the corresponding LSA slot of the keystone module and press until the contacts are engaged; the tool-free mechanism secures the wires without a punch-down tool. Snap the module into a compatible keystone opening in a panel, face plate or surface-mount box. Close the dust cover when the jack is not in use to protect contacts from dust and debris.

Usage recommendations

For reliable performance, use Cat.6 UTP cable and ensure correct pair alignment before termination. Avoid excessive conductor length inside the module and verify continuity and wiring order with a network tester after installation. Store spare modules with the dust cover closed to prevent contamination.
