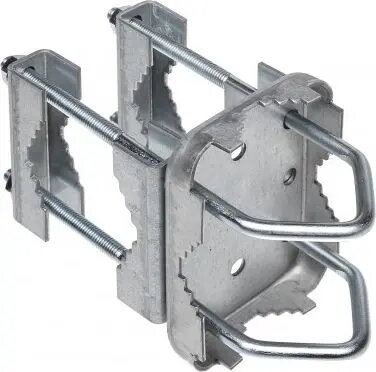

Clamp (obejma) Delta OZK-50 – cross-type pipe clamp, model OZK-50

Delta OZK-50 is a cross-type pipe clamp designed to secure and connect cylindrical pipes and conduits where a crossing or intersection support is required. The clamp is intended for mechanical fixing in plumbing, HVAC and general building services, offering a stable junction point for two perpendicular runs or branches of piping.

Advantages

The Delta OZK-50 clamp provides a compact solution for joining intersecting pipes with a straightforward mechanical design that simplifies installation. Its construction delivers reliable holding power to maintain alignment and reduce lateral movement at pipe crossings. The cross-type form factor enables integration into existing pipe runs without the need for complex fittings or welding, and the clamp is compatible with common piping materials used in building services.

Suitable for

• Securing perpendicular or crossing runs of metal and plastic pipes
• Mechanical support of plumbing installations and service branches
• HVAC duct and conduit intersections requiring fixed junctions
• General building services where a compact cross connection is needed

Key specifications

• Type: cross-type pipe clamp for intersecting pipes
• Intended use: mechanical fixing and joining of cylindrical pipelines and conduits
• Compatibility: suitable for common metal and plastic pipe materials used in plumbing and HVAC
• Design: compact cross junction form to join two perpendicular pipe runs

How to use

Place the Delta OZK-50 clamp at the intended intersection point so that each pipe aligns with the corresponding clamp opening. Ensure pipe ends or run positions are set to the required alignment and insert the pipes into the clamp. Tighten the fastening elements to secure the pipes, taking care to apply even torque and avoid over-tightening that could deform plastic pipes. Verify alignment and mechanical stability after installation and perform any additional supports as required by the installation standards.

Usage recommendations

Before installation, confirm material compatibility and pipe diameters to ensure a proper fit. For installations in exposed or load-bearing situations, combine the clamp with supplementary supports or hangers to distribute loads. Follow local building codes and manufacturer guidance for tightening torque and corrosion protection when used in aggressive environments.
