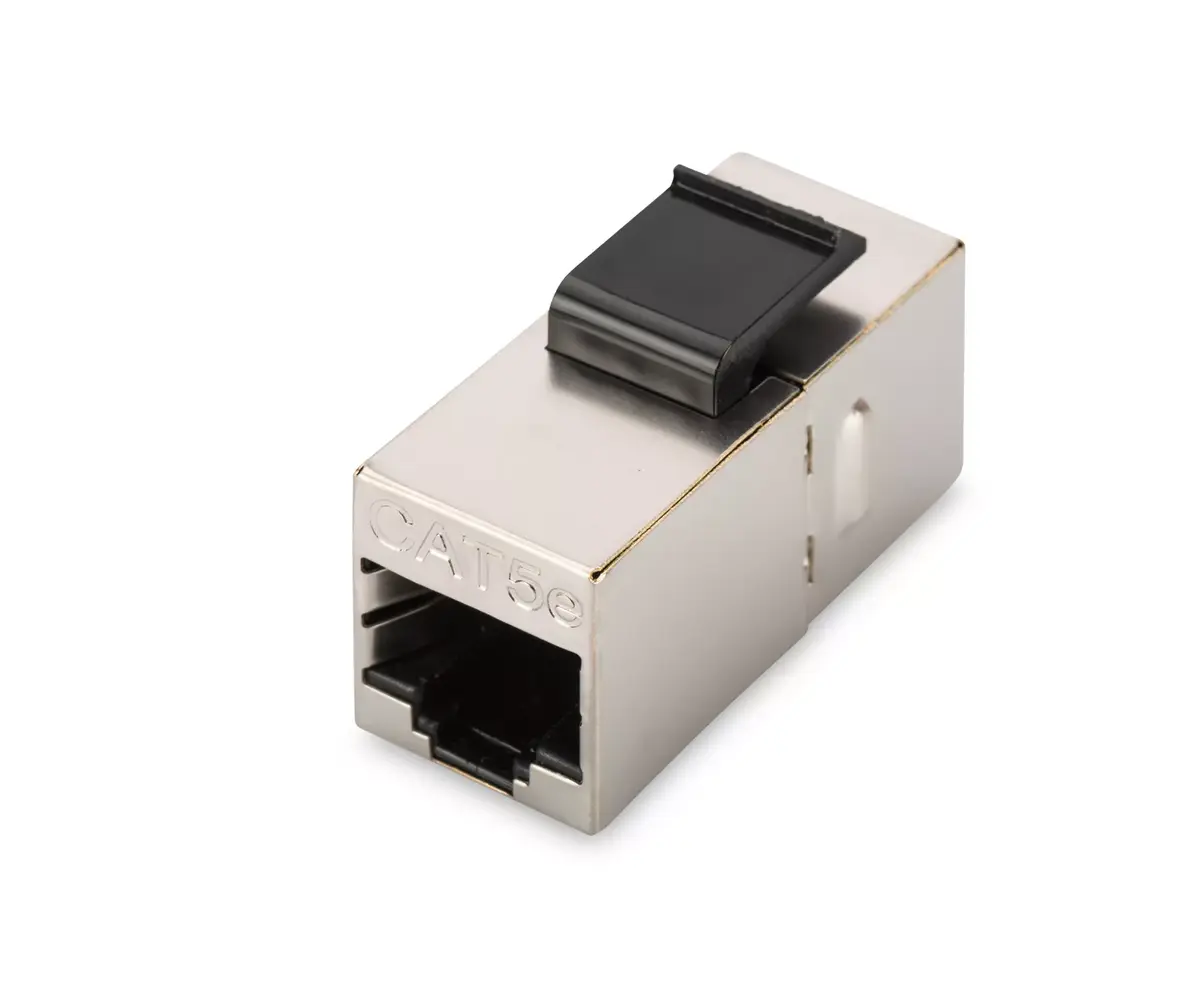

Digitus DN-93513 CAT 5e Class E Modular Coupler Shielded RJ-45 F

The Digitus DN-93513 CAT 5e Class E Modular Coupler Shielded RJ-45 F is designed to connect and extend two network cables cleanly and reliably within a single compact unit. Built with a durable zinc die-cast housing and 360-degree shielding, this modular coupler protects signal transmission against external electromagnetic interference. It supports frequencies up to 100 MHz and is fully compatible with 10/100Base-T and 1GBase-T Ethernet applications, ensuring stable network performance in demanding environments.

Advantages

This shielded RJ-45 coupler features robust construction with a nickel-plated zinc die-cast housing that provides high mechanical durability and effective protection against interference. The internal contacts are gold-plated on phosphor bronze to maintain low contact resistance and prevent signal degradation over time. Its compact dimensions allow for seamless integration into standard network layouts without requiring excessive space, while supporting a high number of mating cycles for long-term operational reliability.

Suitable for

• Extending existing shielded CAT 5e network cables
• Mounting into 19-inch patch panels and network cabinets
• Setting up 10/100Base-T and 1GBase-T Ethernet networks
• Structured cabling environments requiring 360-degree shielding

This coupler may not be suitable for unshielded cabling environments where shielded hardware is unnecessary, or for applications exceeding Category 5e bandwidth limitations such as 10GBASE-T networks requiring higher frequency standards. It is also not designed for outdoor use without an appropriate weatherproof enclosure.

Key specifications

• Category 5e Class E performance
• Supports frequencies up to 100 MHz
• 10/100Base-T and 1GBase-T Ethernet support
• Two RJ-45 female ports with 1:1 pin assignment
• 360-degree shield coverage
• Zinc die-cast nickel-plated housing
• Gold-plated phosphor bronze contacts
• Dimensions of 20 x 35 x 20 mm
• Operating temperature range from -20 °C to +70 °C

To use the coupler, insert the standardized RJ-45 network cables with male plugs into both female ports until they click securely into place. When installing into a patch panel, secure the unit firmly into the designated 19-inch mounting slot to ensure proper alignment and mechanical stability during cable connection and disconnection.

What to consider before purchase

• Verify that your existing cables use compatible conductor sizes ranging from 22 to 26 AWG
• Confirm that your network infrastructure requires shielded CAT 5e Class E connections
• Check available space in your patch panel or enclosure for proper physical fit

For optimal network performance and signal integrity, ensure that all connected cables are properly terminated and that the surrounding environment stays within the specified temperature range of -20 °C to +70 °C.
