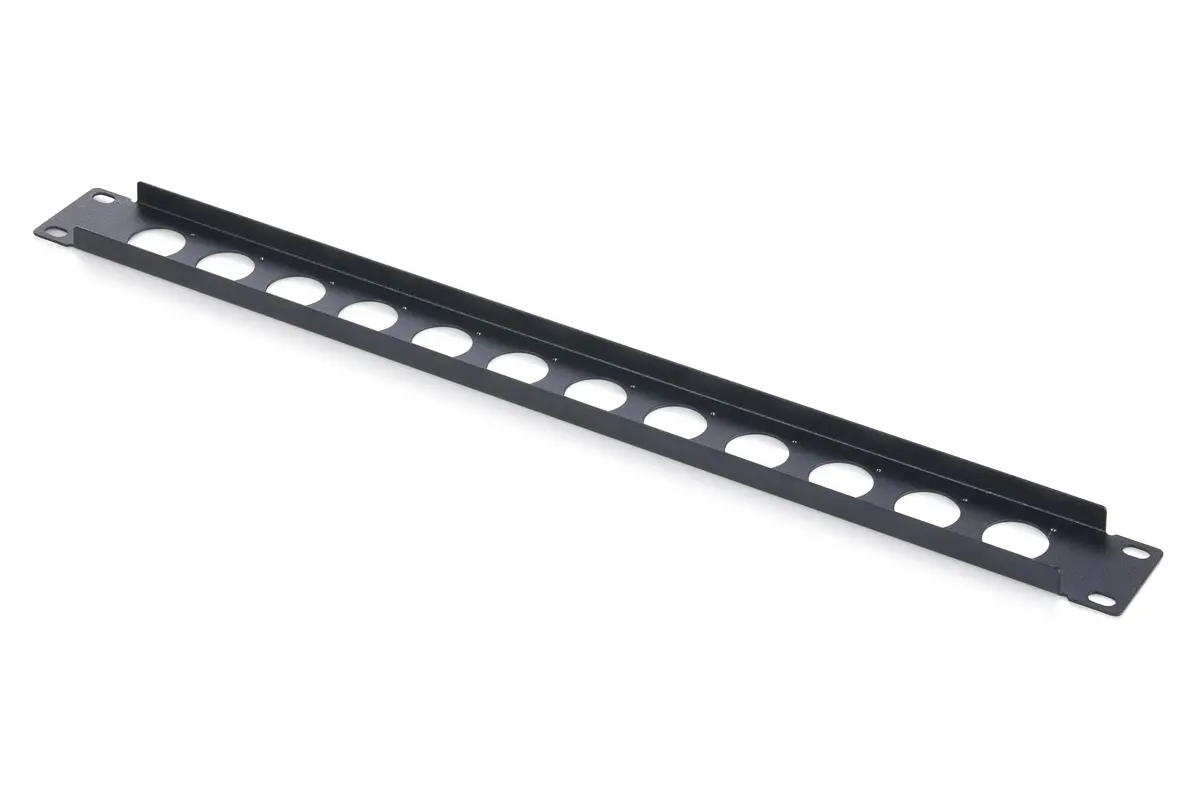

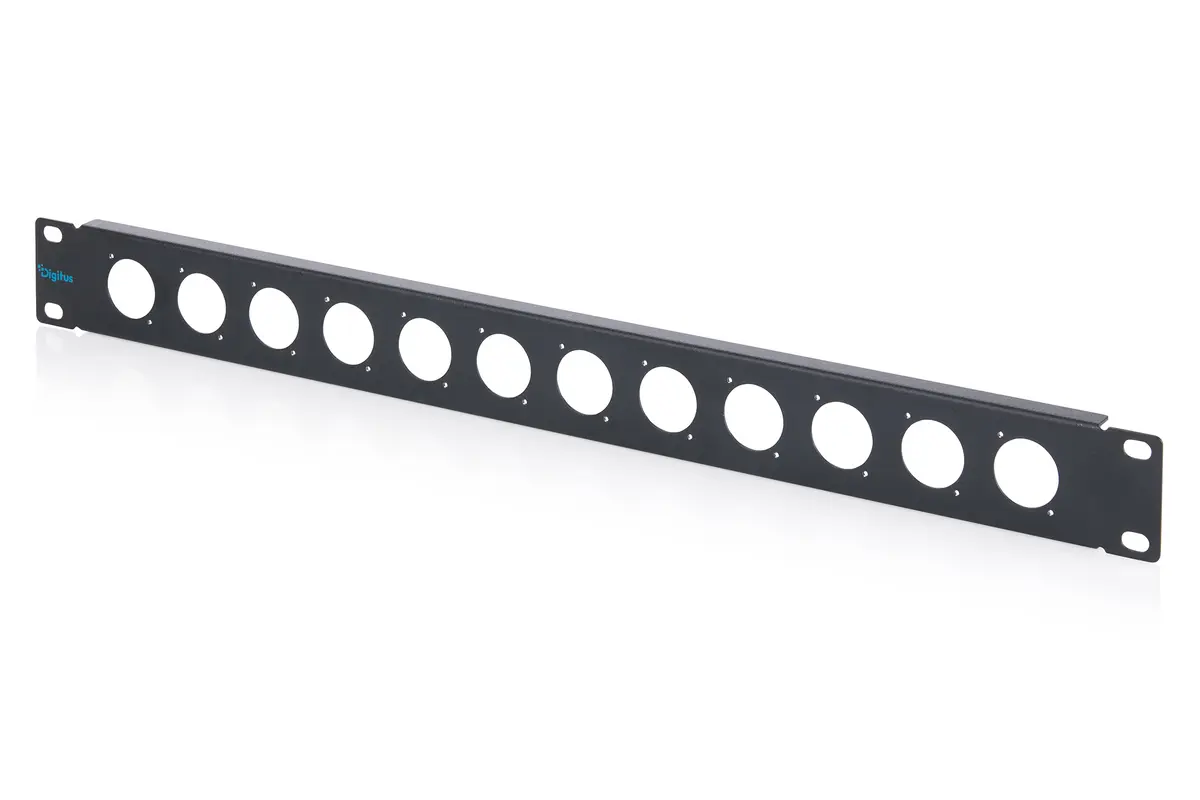

Digitus 1U rack panel for 12 x D-Type modules, steel housing, black color

The Digitus 1U rack panel for 12 x D-Type modules is a reliable mounting solution designed to organize and secure connections in standard network and server environments. Manufactured from robust sheet steel with a durable black powder coating, this connector panel integrates seamlessly into professional rack setups while providing a clean and structured appearance.

Advantages

Constructed from heavy-duty sheet steel, this panel ensures long-lasting durability and stability within demanding rack enclosures. The universal design accommodates up to twelve D-type modules, allowing users to customize their patch panels with various multimedia and networking connections according to specific project requirements. Its compact one-height-unit profile maximizes space efficiency in 19-inch enclosures, while the included mounting material facilitates straightforward installation on standard profile rails.

Suitable for

• Organizing professional network and server rack installations

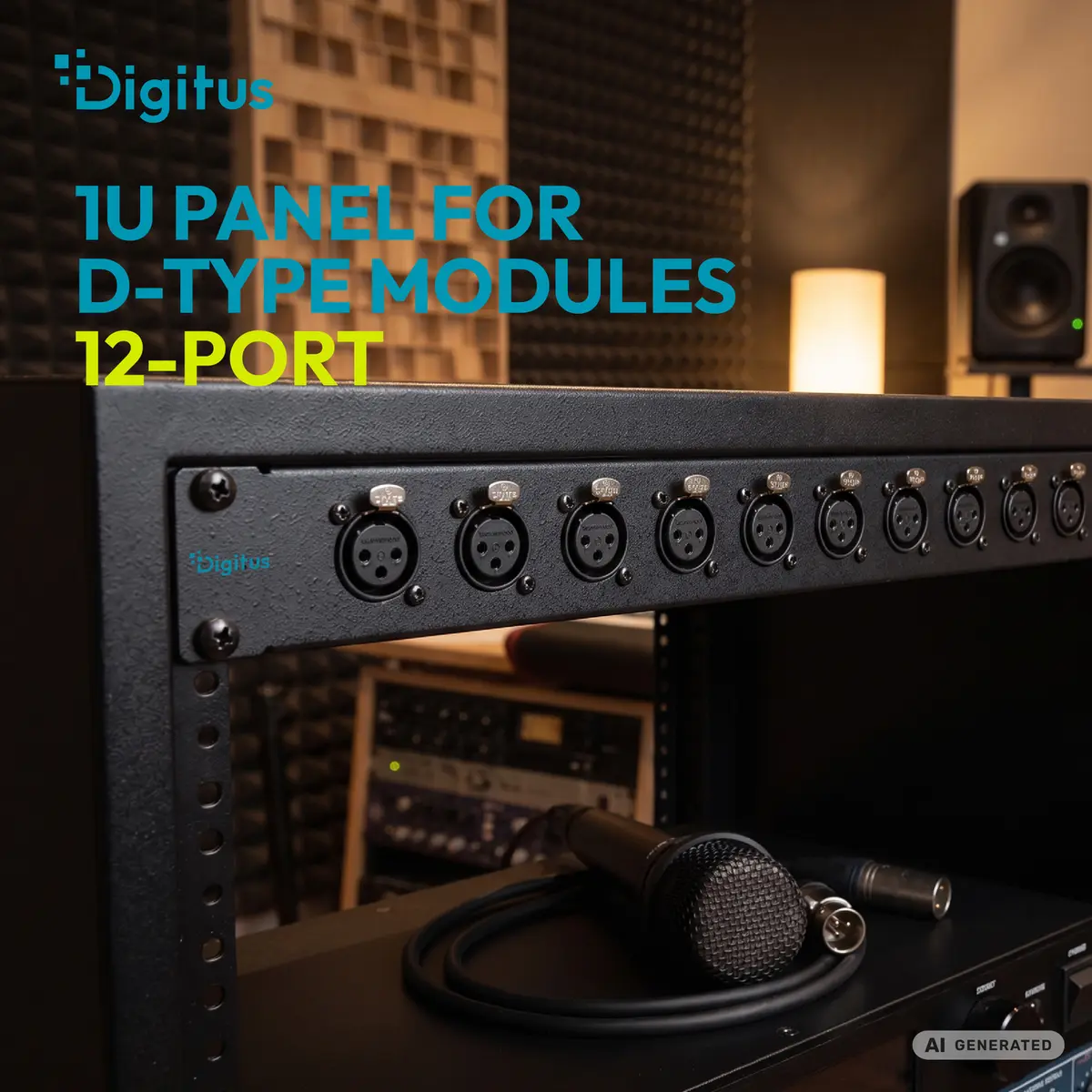

• Mounting audio and video accessories in 19-inch equipment racks
• Housing various D-type multimedia sockets such as XLR, jack, Speacon, HDMI, USB, BNC, and LAN

This product may not be suitable for non-standard enclosures that do not adhere to 19-inch dimensions or for applications that do not utilize standardized D-type modular inserts.

Key specifications

• Designed for 482.6 mm (19") profile rails
• Capacity for up to 12 D-Type modules
• Form factor of 1 height unit (1U)
• Robust sheet steel housing material
• Black powder-coated finish (RAL 9005)
• Includes mounting material

To use the panel, align it with the 19-inch profile rails of your rack enclosure at the desired height position. Secure the panel firmly to the rails using the provided mounting hardware. Once the housing is securely fixed, insert your chosen D-type modules into the designated ports and secure them according to the module manufacturer specifications to complete your custom connection layout.

What to consider before purchase

• Verify that your rack enclosure supports standard 19-inch (482.6 mm) equipment
• Confirm the quantity and type of D-type modules you plan to install
• Check available space in your rack to ensure a 1U panel fits your layout

For optimal installation results, ensure the rack rails are clean and properly aligned before mounting the panel, and route all connected cables securely to minimize strain on the modular inserts.
