Video wall controller DIGITUS DS-55358 — 4 displays, up to 4K (3840×2160) @30Hz, DisplayPort 1.2a, metal housing, button control

DIGITUS DS-55358 video wall controller — 4 displays 4K Photo 1

DIGITUS DS-55358 video wall controller — 4 displays 4K Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

DIGITUS DS-55358 is a compact video wall controller for managing up to four displays in a 2x2 or custom layout. Supports maximum resolution 3840×2160 and 4K output at 30 Hz (max refresh rate noted 60 Hz), uses DisplayPort 1.2a outputs, and features metal housing with button controls. External 12 V power supply, typical power consumption 5.5 W. Ideal for control rooms, retail signage and presentation setups where stable multi-display output is required.

Available at price 189.49 €: 3 pcs.

Total available for order: 9 pcs.

Warranty: 2 Years

SKU: 11531325

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.09 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 189.49 €: 2 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

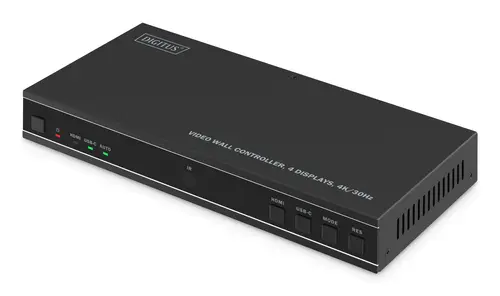

DIGITUS DS-55358 is a compact video wall controller that connects and controls up to four 4K UHD displays. It accepts input via HDMI (HDMI 2.0) or USB-C (DisplayPort 1.2a) at up to 4K/60Hz and outputs in video wall mode over HDMI at up to 4K/30Hz. The unit supports eight display formations (1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2) and includes an audio extractor for separate analog 3.5 mm stereo or digital S/PDIF output. The metal-housed controller features front-panel buttons, remote control and RS232 control, supports 180° image rotation for ceiling installations, and can be wall mounted.

Advantages

The controller provides flexible layout options and reliable high-resolution signal processing, enabling seamless presentation across multiple displays. Integrated audio extraction and multiple control methods (front buttons, remote, RS232) simplify installation and operation. Compact metal housing with wall-mount capability and 180° rotation support allow integration in various professional environments such as retail, control rooms and meeting spaces.

Suitable for

Retail digital signage and advertising displays
Control rooms and surveillance monitoring walls
Conference rooms and presentation setups
Public information displays and lobbies

Key specifications

Maximum input resolution: 4K (3840×2160) @60Hz via HDMI 2.0 or USB-C (DP 1.2a)
Maximum output resolution (video wall mode): 4K (3840×2160) @30Hz via HDMI
Supported formations: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
Video bandwidth: 18 Gbps
HDCP support: HDCP 2.2
Maximum HDMI cable length (input/output): 4K/60Hz – 8 m; 4K/30Hz – 10 m; 1080p/60Hz – 15 m
Rear connections: 1× HDMI input (HDMI 2.0, 4K/60Hz), 1× USB-C input (DP 1.2a, 4K/60Hz), 4× HDMI output (HDMI 2.0, 4K/30Hz)
Audio outputs: 1× 3.5 mm analog stereo, 1× S/PDIF digital
Control and extras: IR extension port, RS232 pass-through, IR receiver
Front panel: on/off switch, 4 status LEDs, source select, video wall mode switch, output resolution switch
Power: DC 12V/1A (external), power consumption approx. 5.5 W
Operating temperature: 0 °C to 40 °C
Dimensions: 22.0 × 10.0 × 3.0 cm; Weight: 590 g
Housing: Metal; Color: Black

How to use

Connect a video source to the HDMI input or the USB-C input (DisplayPort 1.2a). Connect up to four HDMI displays to the HDMI outputs. Power the unit with the supplied 12 V DC adapter. Use the front-panel buttons, supplied remote control or RS232 interface to select the input source, choose one of the eight display formations and set the output resolution. If required, enable the audio extractor and connect external speakers via the 3.5 mm stereo jack or S/PDIF output. For ceiling installations, use the 180° rotation function via remote control.

Usage recommendations

For stable operation, use high-quality HDMI cables within the recommended length limits and ensure the source device can output the required 4K/60Hz signal. When installing in public or ceiling-mounted locations, verify IR receiver accessibility or use the IR extension. Mount the controller on a stable surface or wall and allow adequate ventilation around the metal housing.

Specifications

Weight:: 0.59 kg
Product colour:: Black

All features

USB 3.2 Gen 1 (3.1 Gen 1) ports quantity:: 1
Power supply location:: External
RS-232/422 connector:: Yes
HDMI input ports quantity:: 1
HDMI output ports quantity:: 4

Ports & interfaces

3.5 mm connector:: Yes
HDMI version:: 2.0
DisplayPort version:: 1.2a

Technical details

Control type:: Buttons

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 5.5 W
Input voltage:: 12

Weight & dimensions

Weight:: 0.59 kg
Height:: 30 mm
Width:: 220 mm
Depth:: 100 mm

Operational conditions

Operating temperature (T-T):: 0 - 40

Packaging data

Package weight:: 1050 g
Package depth:: 180 mm
Package height:: 80 mm
Package width:: 280 mm
Package type:: Box

Packaging content

Mounting kit:: Yes

Features

Maximum resolution:: 3840 x 2160
Product colour:: Black
Housing material:: Metal
HDCP:: Yes
Maximum refresh rate:: 60 Hz
HDCP version:: 2.2
Number of displays supported:: 4
