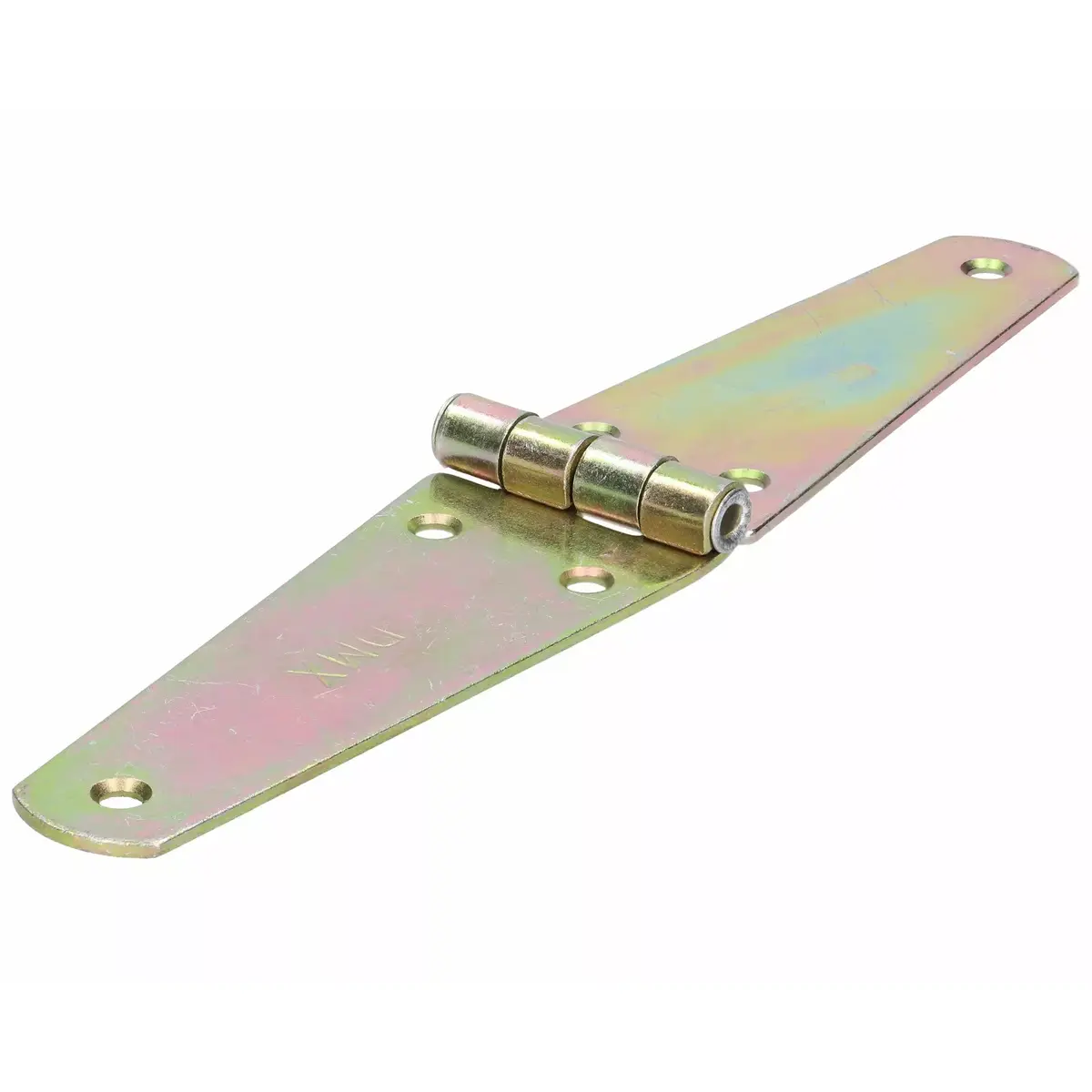

Hinge triangle DMX 8132420 steel/brass 200x40x2.0 mm

The DMX triangle hinge is a specialized hardware component engineered for reliable pivot movement in various door, gate, and panel applications. Measuring 200 x 40 x 2.0 mm, this hinge combines the structural integrity of steel with the functional benefits of brass components, ensuring a balance between strength and smooth operation. Its unique triangular design allows for specific mounting configurations where standard rectangular hinges may not be suitable, providing a stable and secure connection for your installations.

Advantages

The primary advantage of this hinge lies in its robust construction, which utilizes high-quality steel to support the weight of doors or panels effectively. The inclusion of brass components enhances the pivot mechanism, offering improved resistance to wear and corrosion over time. This combination of materials ensures that the hinge remains functional even with frequent use, while the 2.0 mm thickness provides sufficient rigidity to prevent sagging or misalignment. The design is optimized for straightforward installation, making it a practical choice for both professional contractors and DIY enthusiasts.

Suitable for

• Mounting wooden or metal doors
• Installation of access hatches and inspection panels
• Securing storage chests and heavy-duty lids
• Light commercial gate applications

When it may not be suitable

This hinge is not intended for heavy-duty industrial gates or high-security exterior doors that require specialized anti-theft hinges. It may also be unsuitable for environments with extreme humidity or direct exposure to harsh weather conditions, as the steel components may require additional protective coatings to prevent oxidation.

Key specifications

• Dimensions: 200 x 40 mm
• Material thickness: 2.0 mm
• Material composition: Steel with brass components
• Design: Triangular hinge plate

How to use

To install the hinge, first determine the desired position on the door and frame, ensuring that the pivot point is aligned correctly to allow for smooth opening and closing. Mark the screw holes on the mounting surfaces and pre-drill pilot holes if necessary to prevent the material from splitting. Align the hinge and secure it firmly using appropriate screws that match the size of the mounting holes. Once attached, test the movement of the door or panel to ensure it operates without obstruction and adjust the positioning if required.

What to consider before purchase

• Verify the weight capacity of the door or panel to ensure it does not exceed the hinge limits.
• Check the clearance space required for the triangular shape during the opening arc.
• Ensure the mounting surface is flat and sturdy enough to hold the screws securely.

Usage recommendations

Regularly inspect the hinge for signs of wear and apply a light lubricant to the pivot point to maintain smooth operation and extend the service life of the hardware.
