Corner mounting plate DMX Angle KM10 80×80×100×2 mm metal bracket for structural corner connections

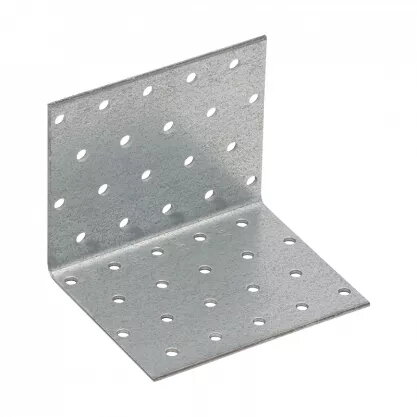

DMX Angle KM10 is a flat corner mounting plate sized 80×80×100×2 mm designed to form rigid right-angle connections in metal or wooden constructions. Manufactured from galvanized steel DX51D + Z275 with a 2 mm thickness, the plate features multiple perforations to enable a variety of simple and complex joints. It is suitable for use in frames, racks, cabinets and general structural corner reinforcements where precise alignment and load distribution are required.

Advantages

The KM10 metal bracket offers versatile perforation that allows flexible placement of fasteners and supports both straightforward and intricate connection patterns. Made of galvanized DX51D + Z275 steel, it provides corrosion resistance appropriate for typical indoor and sheltered applications. With a declared load capacity of 10.91 kN, the plate delivers measurable holding strength when fixed with suitable fasteners. The flat design simplifies installation in confined corners and on flat surfaces.

Suitable for (tasks / use cases)

• Reinforcing right-angle joints in wooden frames and furniture
• Securing corners of metal racks and shelving units
• Assembly of cabinets, boxes and enclosures requiring rigid corners
• General construction joints where load distribution at a corner is needed

Key specifications

• Model: DMX Angle KM10 (MPN: 8141101, EAN: 5907708141101)
• Material: Galvanized steel DX51D + Z275
• Dimensions: 80 × 80 × 100 × 2 mm
• Thickness: 2 mm
• Recommended fasteners: woodworking anchor nails or screws Ø 4 mm
• Declared capacity: 10.91 kN

How to use

Position the DMX Angle KM10 at the corner to be reinforced, ensuring the bracket aligns with the faces to be joined at a right angle. Mark fastener locations using the perforations as a template, then pre-drill holes in the base material if required. Fix the plate with appropriate Ø 4 mm anchor nails or screws suitable for the substrate (wood or metal), tightening fasteners evenly to maintain flush contact. Check alignment and, if needed, add additional fasteners for increased stability.

Usage recommendations

Use corrosion-resistant fasteners where exposure or higher moisture is expected. Select anchor length and type appropriate to the thickness and material of the substrate to achieve the declared capacity. For critical structural applications, follow applicable building standards and consult a structural engineer if required.
