Dynatron K666R1 CPU Air Cooler 60 mm

Name: Air cooler Dynatron K666R1 — K666R1
Brand: Dynatron
SKU: 3595362
Price: 63.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Air cooler Dynatron K666R1 — 60 mm fan, 3 speeds, 1600–5000 RPM, 125 W TDP, aluminium/black

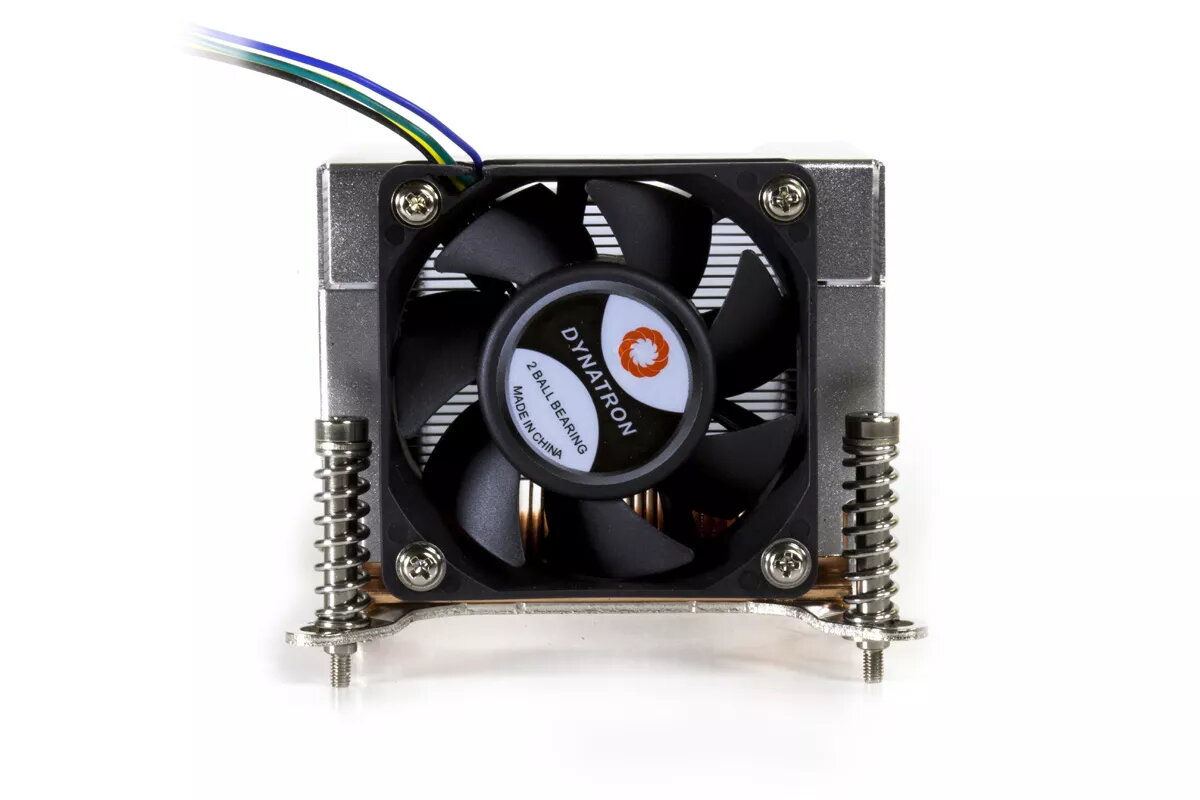

Dynatron K666R1 CPU Air Cooler 60 mm Photo 1

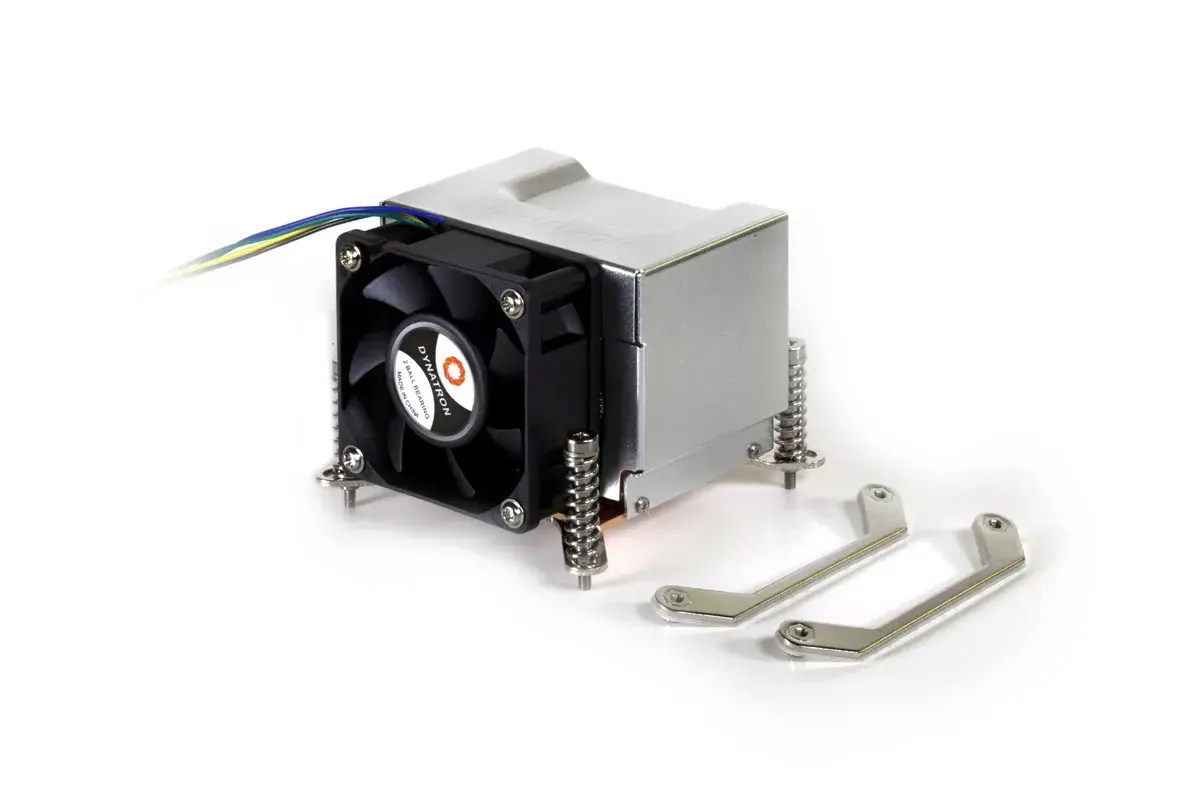

Dynatron K666R1 CPU Air Cooler 60 mm Photo 2

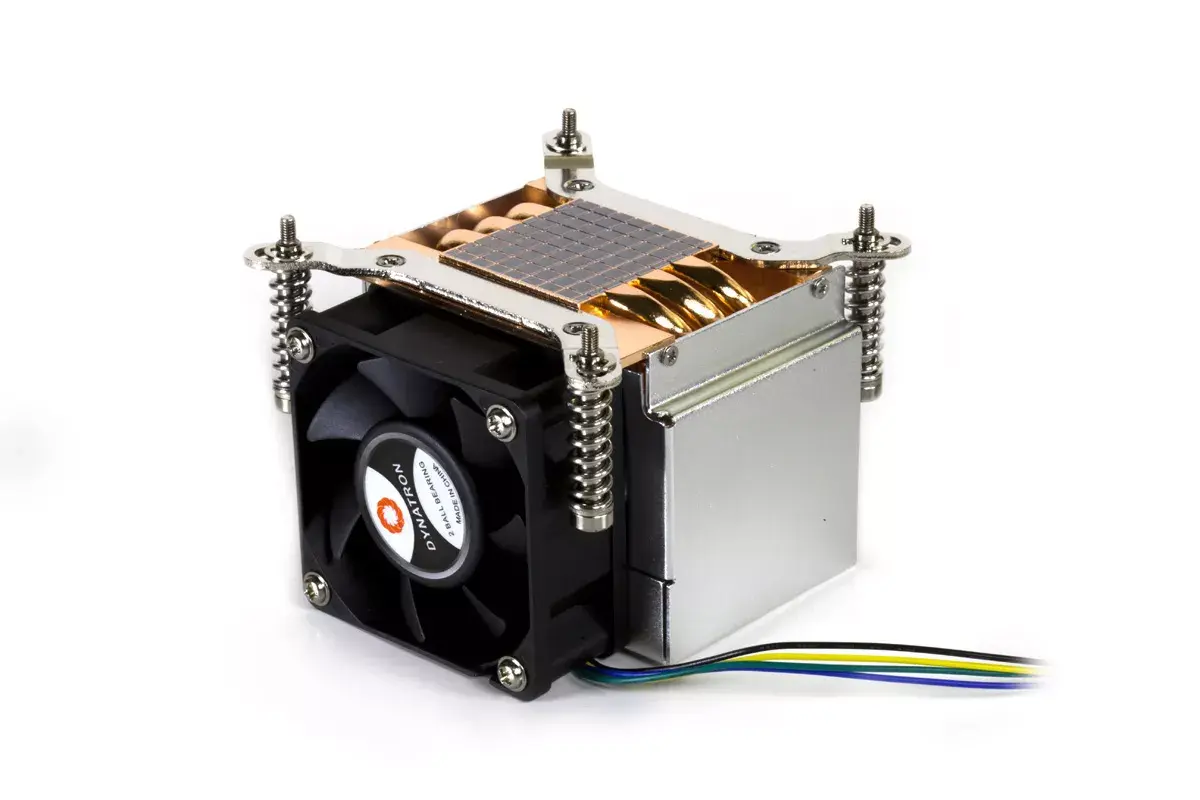

Dynatron K666R1 CPU Air Cooler 60 mm Photo 3

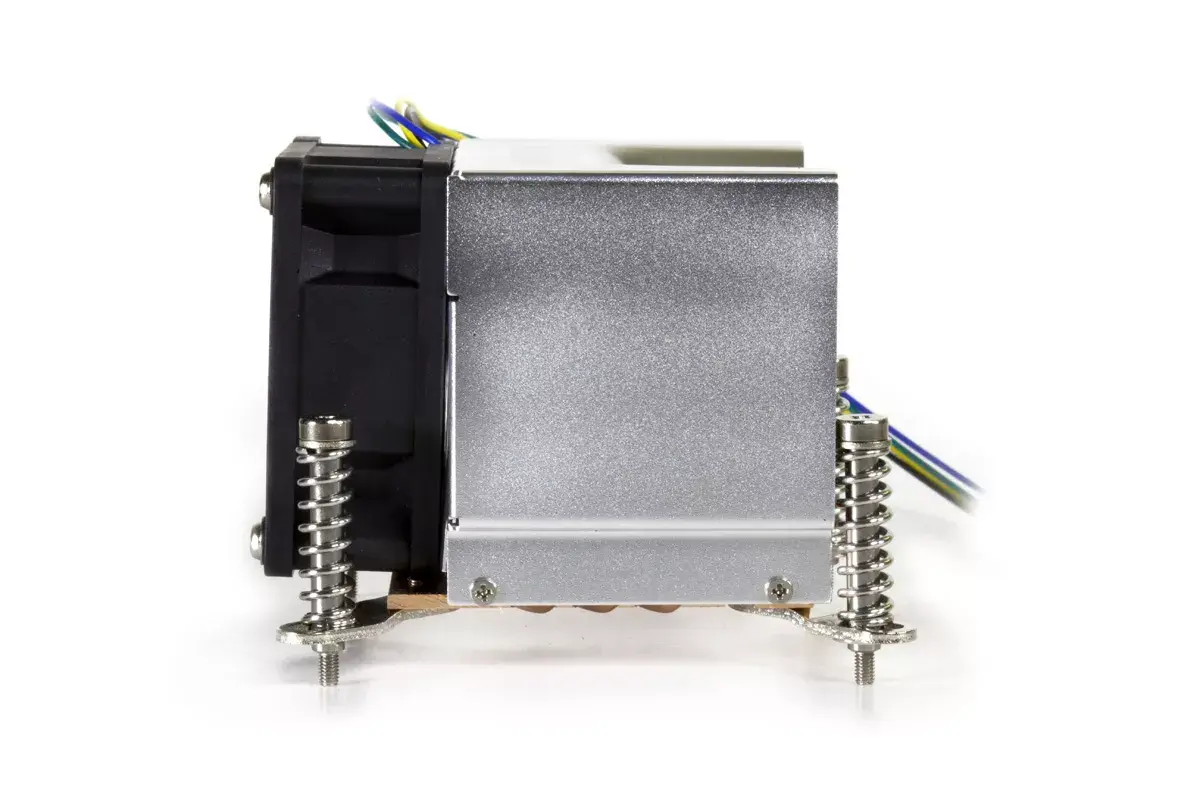

Dynatron K666R1 CPU Air Cooler 60 mm Photo 4

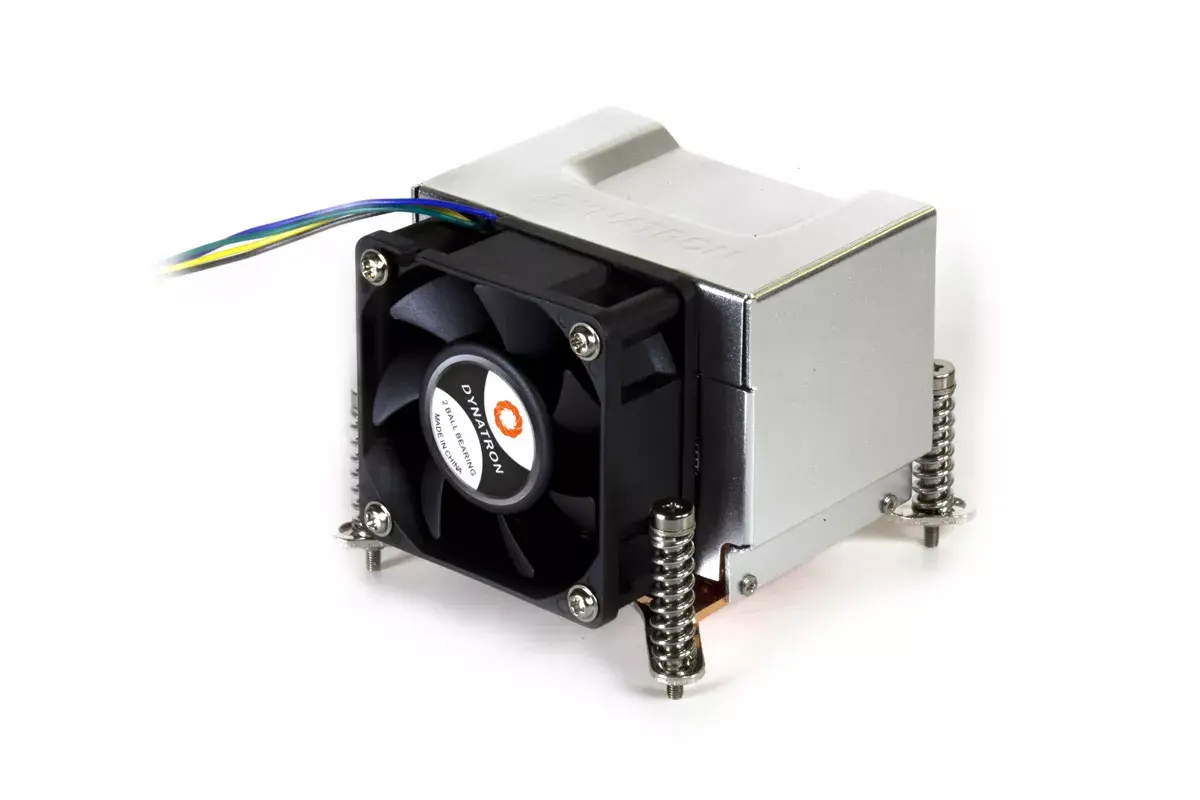

Dynatron K666R1 CPU Air Cooler 60 mm Photo 5

Short description

Dynatron K666R1 is an air cooler for processors featuring a 60 mm aluminium/black fan with three speed settings (1600–5000 RPM). It provides up to 26.45 CFM airflow and 7.32 mmH2O max air pressure, supports TDP up to 125 W and common LGA 1150/1151/1155/1156/1200 sockets. Ball-bearing motor, 12 V operation, compact 85×90.7×64 mm size.

Warranty: 2 Years

SKU: 3595362

Manufacturer: Dynatron

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Dynatron K666R1 is a compact air cooler designed for Intel desktop and server processors using LGA 1150 / 1151 / 1155 / 1156 / 1200 sockets. The cooler combines an aluminium/black 60 mm fan with a copper base and aluminium fins to deliver targeted heat dissipation for systems with limited space. With three selectable fan speeds spanning 1600–5000 RPM and a maximum rated TDP of 125 W, the K666R1 suits compact towers and 2U server applications where a small footprint and reliable cooling are required.

Advantages

The Dynatron K666R1 provides focused airflow and elevated air pressure for tight chassis environments, using a 60 mm ball-bearing fan that operates at 12 V and offers PWM control for speed adjustment. Its combination of a copper base and aluminium fins with embedded heatpipes helps transfer heat efficiently from the processor to the fin stack. The fan’s three-speed range lets users balance cooling performance and noise, while the cooler’s compact 85 × 90.7 × 64 mm dimensions and 0.5 kg weight simplify installation in constrained systems.

Suitable for

Small form-factor desktops and HTPC builds requiring a low-profile CPU cooler
2U and tower servers where space is limited but up to 125 W TDP must be supported
Systems using Intel LGA 1150 / 1151 / 1155 / 1156 / 1200 sockets
Applications requiring a compact cooler with adjustable fan speed for noise/performance trade-offs

Key specifications

Fan diameter: 60 mm (60 × 60 × 25 mm)
Fan speed range: 1600–5000 RPM (three speed settings, PWM-capable)
Maximum airflow: up to 26.45 CFM
Maximum air pressure: up to 7.32 mmH2O
Rated TDP: 125 W
Motor type: ball-bearing
Operating voltage: 12 V
Construction: copper base with aluminium fins and embedded heatpipes
Product dimensions: 85 × 90.7 × 64 mm
Weight: approx. 0.5 kg
Colour: aluminium and black

How to use

Mount the Dynatron K666R1 onto a compatible Intel socket following the motherboard and cooler manufacturer’s installation instructions. Ensure the mounting bracket is aligned with the LGA 1150 / 1151 / 1155 / 1156 / 1200 retention mechanism, apply a thin, even layer of thermal compound to the CPU heatspreader if not pre-applied, and secure the cooler to achieve firm contact between the copper base and the processor. Connect the fan to a 4-pin PWM header or a 12 V fan header on the motherboard to allow speed control. Verify clearance around nearby components and route the fan cable to avoid contact with moving parts.

Usage recommendations

For reliable operation, use the PWM control to match fan speed to load: lower speeds for quiet idle or light workloads, and higher settings under sustained high CPU load. Maintain case airflow by ensuring intake and exhaust fans are unobstructed and clean the cooler fins and fan periodically to prevent dust buildup that reduces cooling efficiency. Confirm socket compatibility and BIOS fan control settings before deployment in server racks or small chassis.

Specifications

Type:: Air cooler
Fan diameter:: 60 mm
Weight:: 0.5 kg
Thermal Design Power (TDP):: 125 W
Supported processor sockets:: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5)
Product colour:: Aluminium, Black

All features

Performance

Type:: Air cooler
Fan diameter:: 60 mm
Supported processor sockets:: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5)
Noise level (low speed):: 13.8 dB
Noise level (high speed):: 38.7 dB
Rotational speed (min):: 1600 RPM
Rotational speed (max):: 5000 RPM
Maximum airflow:: 26.45 cfm
Minimum airflow (imperial):: 8.5 cfm
Compatible processor series:: Intel Xeon
Number of speeds:: 3
Minimum air pressure:: 0.75 mmH2O
Maximum air pressure:: 7.32 mmH2O
Bearing type:: Ball bearing
Pulse-width modulation (PWM) support:: Yes
Suitable location:: Processor
Quantity per pack:: 1 pc(s)
Fan bearing technology:: Double ball bearing

Design

Product colour:: Aluminium, Black
Material:: Plastic, Copper, Aluminium
Rack capacity:: 2U
Number of fans:: 1 fan(s)
Number of heat pipes:: 3
Fins material:: Aluminium
Base plate material:: Copper
Fan connector:: 4-pin

Weight & dimensions

Fan thickness:: 25 mm
Weight:: 0.5 kg
Height:: 64 mm
Width:: 85 mm
Depth:: 90.7 mm
Fan dimensions (W x D x H):: 60 x 60 x 25

Technical details

Sustainability certificates:: RoHS, WEEE

Power

Thermal Design Power (TDP):: 125 W
Power supply:: 3 W
Voltage:: 12

Other features

Thermal grease:: Yes
