Eaton 106132 Door Operator for PKZM0 and PKZM4 Circuit Breakers

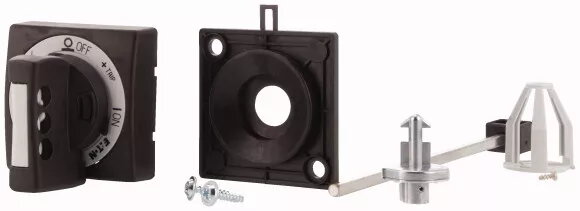

The Eaton 106132 door operator is a specialized accessory designed to facilitate the external operation of PKZM0 and PKZM4 motor protection circuit breakers. By mounting this component onto a cabinet door, users can safely toggle the circuit breaker without needing to open the enclosure, which is essential for maintaining safety standards in industrial electrical environments. The unit features a robust black finish and is engineered to function as a main switch in compliance with IEC/EN 60204 standards.

Advantages

This door coupling handle provides a significant improvement in operational safety by allowing personnel to control internal circuit breakers from the outside of a control panel. Its design ensures that the cabinet remains sealed during routine switching operations, protecting internal components from dust and debris while preventing accidental contact with live electrical parts. The installation process is straightforward, and the durable construction ensures reliable performance even in demanding industrial settings.

Suitable for

• Industrial control panels and electrical cabinets
• Motor protection systems using PKZM0 or PKZM4 breakers
• Applications requiring a main switch according to IEC/EN 60204
• Maintenance environments where external access to breakers is necessary

When it may not be suitable

This door operator is specifically designed for use with Eaton PKZM0 and PKZM4 series circuit breakers and will not be compatible with other brands or different series of circuit protection devices. It is intended for panel-mounted applications and is not suitable for standalone or wall-mounted installations where a cabinet door is not present.

Key specifications

• Compatibility: PKZM0 and PKZM4 circuit breakers
• Function: Door coupling handle for external operation
• Compliance: IEC/EN 60204 (Main switch)
• Color: Black

How to use

To install the door operator, ensure the electrical system is de-energized. Mount the handle mechanism onto the exterior of the cabinet door, aligning it with the internal circuit breaker. Secure the coupling rod to the breaker handle inside the cabinet. Once installed, verify that the door can open and close freely and that the handle correctly engages the breaker mechanism to toggle between the ON and OFF positions. Always test the operation before finalizing the installation.

What to consider before purchase

• Verify that your circuit breaker model is either PKZM0 or PKZM4
• Ensure the cabinet door thickness is compatible with the coupling handle shaft
• Confirm that the installation space allows for the required mechanical linkage

Usage recommendations

Regularly inspect the handle and coupling mechanism for signs of wear or misalignment to ensure consistent and safe operation. Always follow local electrical safety regulations and manufacturer guidelines during installation and maintenance.
