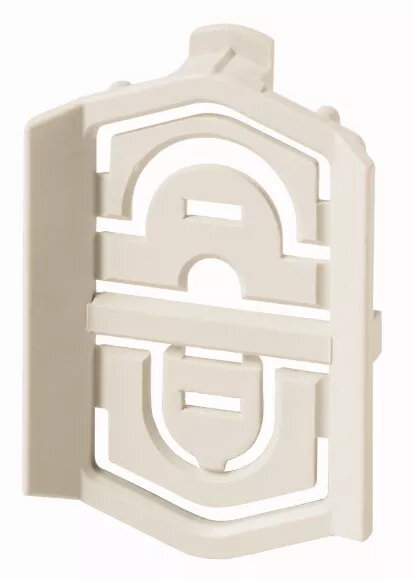

Eaton DILM150-XIP2X Terminal Cover for DILM80 to DILM150 Contactors

The Eaton DILM150-XIP2X terminal cover is a specialized safety accessory designed to enhance the protection of electrical connections within industrial control panels. Compatible with the DILM80 to DILM170 series contactors, this component provides a robust physical barrier that ensures IP2X finger-safe protection. By covering exposed terminals, it helps prevent accidental contact with live parts, thereby increasing the overall safety standards of your electrical installation.

Advantages

This terminal cover offers significant benefits for electrical safety and maintenance. Its primary advantage is the provision of IP2X finger-safe protection, which is essential for meeting modern industrial safety regulations and reducing the risk of electrical hazards during routine panel inspections. The cover is constructed from durable materials capable of maintaining structural integrity across a wide operating temperature range of -25 to 60 °C, ensuring long-term reliability in various industrial environments. Furthermore, its design allows for straightforward installation, enabling quick integration into existing control panel setups without requiring complex tools or modifications.

Suitable for

• Industrial control panels using DILM80 to DILM170 contactors
• Electrical cabinets requiring IP2X finger-safe protection
• Environments where accidental contact with terminals must be prevented
• Upgrading safety standards in existing electrical installations

When it may not be suitable

This terminal cover is specifically engineered for the Eaton DILM80 through DILM170 contactor series and will not fit other contactor models or brands. It is not intended for use in environments where high-pressure water jets or heavy dust ingress require higher IP ratings than the provided IP2X standard.

Key specifications

• Compatibility: Eaton DILM80 to DILM170 contactors
• Protection rating: IP2X finger-safe
• Operating temperature range: -25 to 60 °C
• Color: White

How to use

To install the terminal cover, ensure that the power supply to the contactor is completely disconnected and locked out according to standard safety procedures. Align the cover with the terminal area of the DILM contactor. Press the cover firmly into place until it snaps securely into the designated mounting points. Verify that the cover is seated correctly and provides full coverage over the electrical terminals before restoring power to the system.

What to consider before purchase

• Verify the specific model number of your contactor to ensure compatibility
• Check the available space in your control panel to accommodate the cover dimensions
• Confirm that the IP2X rating meets your specific safety requirements

Usage recommendations

Regularly inspect the terminal cover during scheduled maintenance to ensure it remains securely attached and free from damage or debris that could compromise its protective function.
