Eaton LS-XW-ZBZ Actuator Key for LS-ZBZ Safety Switches

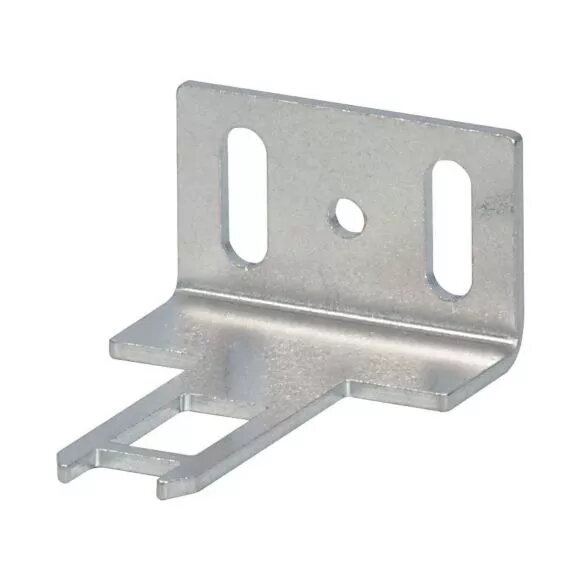

The Eaton LS-XW-ZBZ Actuator Key is a precision-engineered component designed specifically for integration with LS-ZBZ series safety switches. This angled, short-style actuator serves as a critical element in machine interlocking systems, ensuring that safety guards and doors remain securely monitored during operation. Constructed from high-quality stainless steel, this actuator key is built to withstand the rigors of industrial environments while maintaining consistent performance and mechanical integrity.

Advantages

The primary advantage of the Eaton LS-XW-ZBZ lies in its robust stainless steel construction, which offers excellent resistance to wear and environmental factors. Its angled design provides flexibility for installation in tight spaces or specific machine configurations where standard actuators might not fit. By adhering to international safety standards such as IEC 60947-5 and UL 508, this component guarantees reliable operation and seamless compatibility within professional safety circuits, contributing to a safer workplace by preventing unauthorized access to hazardous machine areas.

Suitable for

• Swing doors with a width exceeding 350 mm
• Industrial machine interlocking systems
• Safety guard monitoring applications
• Replacement or maintenance of LS-ZBZ series switch assemblies

When it may not be suitable

This actuator is specifically designed for use with the LS-ZBZ series of safety switches and may not be compatible with other switch models or brands. It is not intended for use on doors narrower than 350 mm, as the geometry of the angled actuator is optimized for specific swing radii.

Key specifications

• Material: Stainless steel
• Design: Angled, short actuator
• Compatibility: LS-ZBZ series safety switches
• Application: Swing doors wider than 350 mm
• Standards compliance: IEC 60947-5, UL 508

How to use

Installation should be performed by qualified personnel familiar with industrial safety systems. The actuator key is mounted onto the moving part of the safety guard or door. Ensure that the key aligns correctly with the entry slot of the LS-ZBZ safety switch when the door is closed. Once mounted, verify that the switch mechanism engages smoothly without mechanical binding. Periodic inspections should be conducted to ensure the actuator remains securely fastened and that the switch functions correctly according to the machine's safety logic.

What to consider before purchase

• Verify the model number of your existing safety switch to ensure compatibility with the LS-ZBZ series.
• Measure the width of your swing door to confirm it exceeds the 350 mm requirement.
• Ensure the mounting surface is stable and capable of supporting the actuator under normal operating conditions.

Usage recommendations

Regularly check the alignment of the actuator key with the safety switch to prevent premature wear or mechanical failure. Keep the contact area clean and free of debris to ensure reliable interlocking performance.
