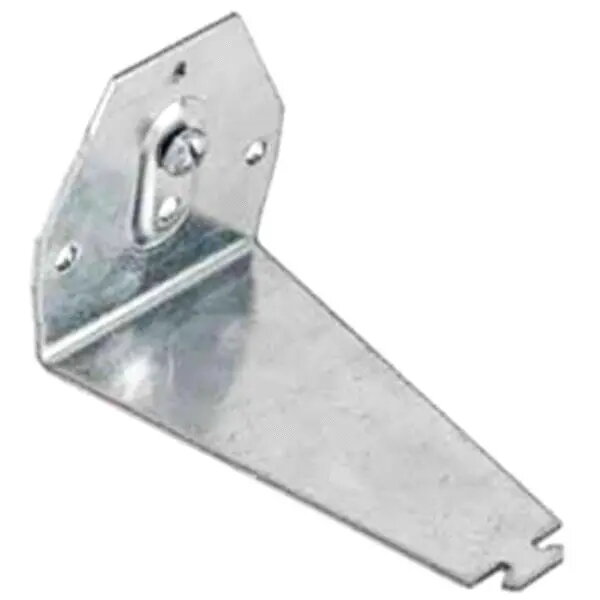

BPZ-TF/2 Eaton mounting bracket without depth adjustment model 116651

BPZ-TF/2 Eaton mounting bracket without depth adjustment model 116651 is a fixed installation accessory designed for secure attachment of compatible control and protection devices in electrical panels and enclosures. Manufactured by EATON, this bracket provides a stable mechanical support point where depth adjustment is not required. It is intended for professional electrical installations and equipment mounting where a robust, non-adjustable fixing is appropriate.

Advantages

The BPZ-TF/2 bracket offers straightforward installation and a compact profile that minimizes space consumption within panels. As a non-adjustable mounting accessory, it reduces moving parts and potential points of failure, ensuring a durable support for mounted devices. Its construction meets expectations for professional-grade mounting hardware and provides consistent alignment for compatible components.

Suitable for

• Mounting fixed-position control modules and protection relays in distribution panels
• Securing devices in electrical enclosures where depth adjustment is not required
• Professional electrical installation and retrofit projects that use Eaton-compatible accessories

Key specifications

• Mounting type: fixed, non-adjustable bracket
• Application: panel and enclosure mounting for control and protection devices
• Material: metal construction for mechanical support (manufacturer-standard finish)
• Compatibility: designed for use with Eaton control and protection components and other compatible devices
• Profile: compact design suitable for constrained panel spaces

How to use

Install the BPZ-TF/2 bracket by aligning it with the designated fixing points inside the panel or enclosure and secure it using appropriate screws or fasteners for the enclosure material. Position the compatible control or protection device against the bracket and fasten the device to the bracket following the device manufacturer’s mounting instructions. Ensure all fasteners are tightened to appropriate torque values and that devices are electrically isolated before any wiring operations.

Usage recommendations

Use the BPZ-TF/2 bracket in installations where a fixed mounting position is acceptable. Verify mechanical compatibility and clearances with the device to be mounted, and follow local standards and safety practices during installation. If depth variability is required, consider an alternative bracket with adjustable features.
