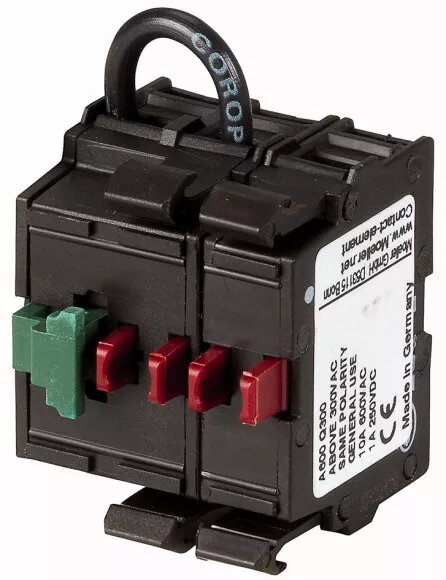

Eaton M22-K02SMC10 Electrical Relay with Self-Monitoring, Black

The Eaton M22-K02SMC10 is a professional-grade electrical contact element designed for industrial control systems. This component features a robust self-monitoring function, ensuring enhanced safety and reliability in demanding automation environments. Engineered for front fixing, it provides a secure connection within control panels, utilizing reliable screw terminals for installation. The device is built to meet stringent international standards, providing consistent performance for critical switching operations.

Advantages

This contact element offers significant benefits through its integrated self-monitoring capability, which is essential for safety-critical applications. The design incorporates positive opening contacts in accordance with IEC/EN 60947-5-1, ensuring that the circuit is reliably interrupted even in the event of contact welding. Its durable construction and standardized mounting dimensions allow for seamless integration into existing control architectures, while the screw terminal connection ensures a stable and long-lasting electrical interface.

Suitable for

• Industrial control panels and automation systems
• Safety-critical switching applications
• Emergency stop and monitoring circuits
• Machine control interfaces

When it may not be suitable

This device is not intended for high-power switching applications or direct motor control, as it is designed specifically for signal and control circuit management. It is also not suitable for environments requiring high ingress protection ratings, as the terminal area is rated at IP20.

Key specifications

• Contact configuration: 1 Normally Open (N/O) and 2 Normally Closed (NC)
• Connection type: Screw terminals
• Mounting method: Front fixing
• Safety feature: Positive opening to IEC/EN 60947-5-1
• Minimum force for positive opening: 30 N
• Maximum travel: 5.7 mm
• Degree of protection: IP20
• Cable cross-section range: 0.5 to 2.5 mm²

How to use

The Eaton M22-K02SMC10 is designed for front mounting onto compatible pushbuttons or actuators. Begin by ensuring the power supply to the control circuit is disconnected. Secure the contact element to the rear of the actuator using the provided fixing mechanism. Connect the control wires to the screw terminals, ensuring the conductors are stripped to the appropriate length and tightened securely to prevent loose connections. Once installed, verify the mechanical actuation and electrical continuity before restoring power to the system.

What to consider before purchase

• Verify that the contact configuration (1 N/O, 2 NC) meets your specific circuit requirements.
• Ensure the mounting space is compatible with front-fixing components.
• Confirm that the IP20 protection rating is sufficient for your installation environment.
• Check that your wiring gauge falls within the 0.5 to 2.5 mm² range.

Usage recommendations

Always ensure that the installation is performed by qualified personnel in accordance with local electrical codes. Regularly inspect the screw terminals for tightness and check the mechanical operation of the contact block during routine maintenance cycles to ensure the positive opening function remains effective.
