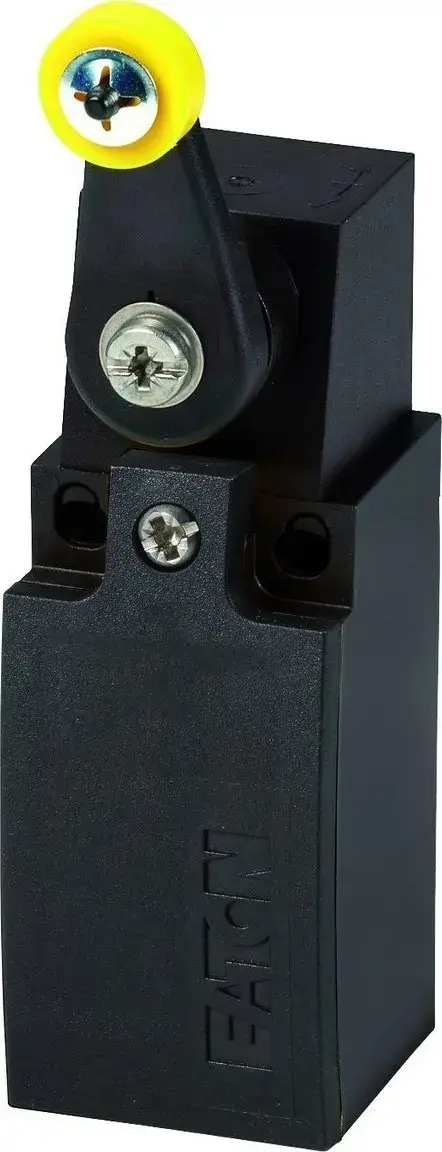

Eaton LS-11S-SW/RLA Limit Switch, 1NO/1NC, Adjustable Roller Lever

The Eaton LS-11S-SW/RLA is a high-performance limit switch engineered for precise position detection and mechanical limit monitoring in industrial environments. Featuring a 1NO/1NC contact configuration, this device offers versatile switching capabilities for various control circuits. The integrated adjustable roller lever actuator allows for flexible installation and fine-tuning, ensuring accurate operation even in complex mechanical setups. Built with durability in mind, this switch is designed to withstand the rigors of automated machinery and safety-critical applications.

Advantages

This limit switch provides exceptional reliability through its robust construction, which is specifically designed to maintain consistent performance under demanding industrial conditions. The adjustable roller lever offers significant installation flexibility, allowing users to adapt the switch to specific mechanical requirements without needing additional components. Its dual-contact configuration ensures compatibility with a wide range of control systems, providing both normally open and normally closed switching options for enhanced safety and operational control.

Suitable for

• Industrial automation systems
• Conveyor belt position monitoring
• Machine tool limit detection
• Safety interlock applications
• Automated gate and door control

This device may not be suitable for applications involving extreme chemical exposure or high-pressure washdown environments where specialized IP-rated enclosures are required. It is also not intended for use in explosive atmospheres unless housed within a certified explosion-proof enclosure.

Key specifications

• Contact configuration: 1NO/1NC
• Actuator type: Adjustable roller lever
• Application: Industrial limit monitoring
• Reliability: High-durability mechanical design

To use the Eaton LS-11S-SW/RLA, mount the switch securely to a stable surface using the provided mounting points, ensuring the actuator is positioned to make contact with the moving part of the machine at the desired limit point. Adjust the roller lever to the required angle or length to ensure smooth engagement. Connect the electrical wiring to the 1NO/1NC terminals according to your control circuit diagram, ensuring all connections are tightened to the manufacturer's torque specifications.

What to consider before purchase

• Verify the mechanical travel requirements of your machinery
• Ensure the electrical load matches the switch contact ratings
• Check the mounting space availability for the adjustable lever
• Confirm environmental compatibility with the installation site

Usage recommendations

Regularly inspect the roller lever for signs of mechanical wear and ensure that the switch housing remains free of debris to maintain optimal operational accuracy and longevity.
