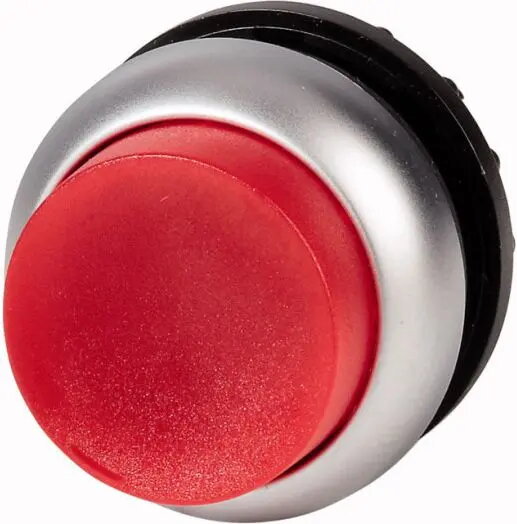

Eaton M22-DRLH-R Illuminated Pushbutton Actuator, Red, Non-Self-Resetting

The Eaton M22-DRLH-R is a robust illuminated pushbutton actuator engineered for professional industrial control panels and automation systems. As part of the reliable RMQ-Titan series, this component features a distinct red color and a non-self-resetting, maintained mechanism, ensuring that the switch remains in its activated state until manually reset. Its high-quality construction provides long-term durability and consistent performance in demanding electrical environments.

Advantages

This actuator offers exceptional reliability due to its high-grade materials and precision engineering. The integrated illumination feature enhances visibility in low-light conditions, allowing for quick status identification. Its maintained action is ideal for applications requiring a sustained signal, while the ergonomic design ensures ease of operation. Furthermore, the component is designed for seamless integration into existing control systems, simplifying the installation process for technicians.

Suitable for

• Industrial automation control panels
• Emergency stop or system activation circuits
• Machine control interfaces
• Electrical distribution systems

When it may not be suitable

This device is not suitable for applications requiring a momentary contact signal, as it is designed specifically for maintained, non-self-resetting operation. It should not be used in environments that exceed its specified ingress protection ratings or temperature limits.

Key specifications

• Color: Red
• Operation type: Maintained (non-self-resetting)
• Series: RMQ-Titan
• Illumination: Yes

How to use

The actuator is designed for panel mounting through a standard 22.5 mm hole. Once installed, the button is pressed to engage the maintained contact state. To reset the device, the operator must manually return the button to its original position. Ensure all electrical connections are secured according to the wiring diagram of your specific control system.

What to consider before purchase

• Verify that your control circuit requires a maintained (latching) switch rather than a momentary one.
• Ensure the panel cutout diameter matches the standard 22.5 mm requirement.
• Check if your existing control system supports the voltage requirements for the integrated illumination.

Usage recommendations

Always ensure the power supply is disconnected before installing or performing maintenance on the actuator to prevent electrical hazards. Regularly inspect the button for signs of wear or debris to maintain optimal functionality.
