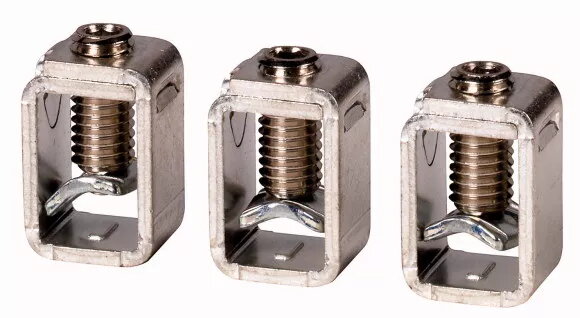

The Eaton NZM1-XKC box terminal is a professional-grade accessory specifically engineered for integration with NZM1 series circuit breakers. This component serves as a critical interface for power distribution, ensuring that electrical cables are securely fastened to the circuit breaker terminals. Designed for industrial applications, it provides a stable and reliable connection point that maintains electrical integrity under various operating conditions. The terminal is built to facilitate straightforward installation, helping to streamline the assembly of electrical panels and distribution boards.
Advantages
The primary benefit of the Eaton NZM1-XKC is its robust construction, which ensures long-term durability in demanding industrial environments. By providing a secure clamping mechanism, it minimizes the risk of loose connections that could lead to overheating or system failure. Its design is optimized for the NZM1 series, ensuring a perfect mechanical fit and electrical compatibility. Furthermore, the terminal simplifies the wiring process, allowing for efficient cable termination and reducing the time required for maintenance or initial installation tasks.
Suitable for
- Industrial power distribution systems
- Electrical panel building and switchgear assembly
- Commercial building electrical infrastructure
- Maintenance and upgrades of existing NZM1 circuit breaker setups
This terminal is not suitable for use with circuit breakers outside of the NZM1 series, as the mechanical dimensions and connection points are specifically calibrated for this range. It is also not intended for applications involving cable sizes or types that fall outside the manufacturer's specified clamping range.
Key specifications
- Compatible with: Eaton NZM1 series circuit breakers
- Type: Box terminal
- Material: High-grade conductive metal alloy
- Mounting: Direct integration with circuit breaker terminals
To install the Eaton NZM1-XKC, first ensure that the power supply to the circuit breaker is completely disconnected and locked out. Remove any existing terminal covers if necessary. Align the box terminal with the connection point on the NZM1 circuit breaker and secure it according to the provided mechanical guidelines. Insert the conductor into the terminal opening and tighten the screw to the specified torque setting to ensure a firm grip on the cable. Verify that the connection is secure before restoring power to the system.
What to consider before purchase
- Verify that your circuit breaker model is part of the NZM1 series
- Check the cross-section of your cables to ensure they fall within the terminal's capacity
- Ensure you have the correct torque tools for installation
- Confirm the number of terminals required for your specific breaker configuration
Always follow the manufacturer's installation manual and local electrical safety regulations when working with circuit breakers. Regularly inspect terminal connections during scheduled maintenance to ensure they remain tight and free from corrosion.
